Retrofit Hub

12.710,00 ден 14.997,80 ден with DDV one time, and
3.813,00 ден / year

DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.

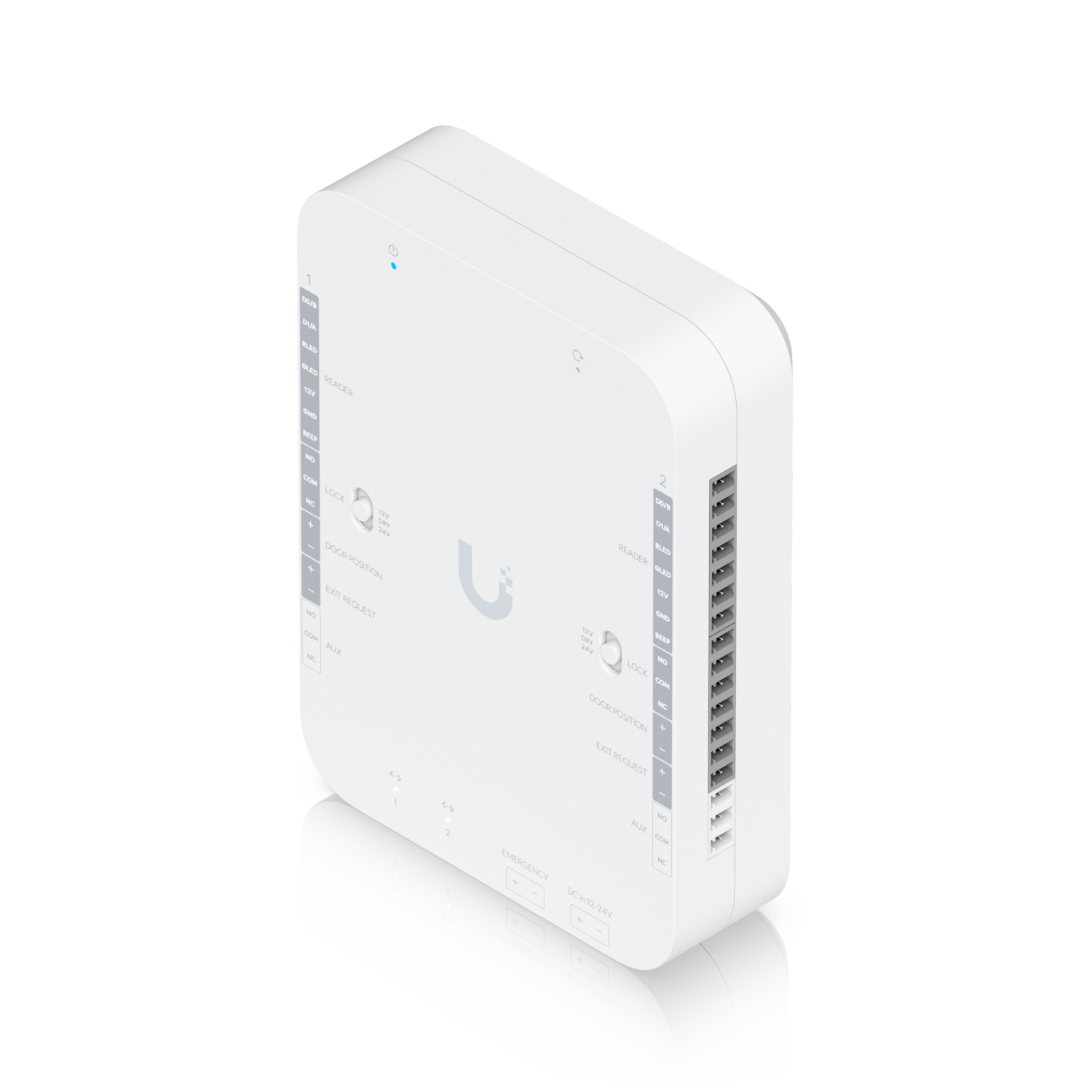

The UniFi Retrofit Hub (UA-Retrofit-Hub-2) is a DC-powered access control hub designed to manage up to two doors with maximum security and efficiency. It seamlessly integrates with the UniFi Access application, providing a unified interface for controlling doors, gates, and elevators. The hub supports up to 10,000 users, offering flexible unlocking methods and real-time monitoring of entry and exit events. Its two 10/100 Mbps RJ45 ports allow reliable network communication, while the polycarbonate and SGCC steel enclosure ensures durability and indoor safety. Designed for easy DIN-rail mounting, it is compact yet robust at 140 x 120 x 45 mm and weighing only 420 grams. Factory reset and power configuration buttons allow quick setup and adjustments, while NDAA compliance guarantees it meets stringent security standards for professional environments. This hub provides reliable and centralized access management for small to medium installations, making it ideal for offices, commercial buildings, and secure areas.

The Ubiquiti UA-Retrofit-Hub-2 is a DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors. Below are its technical specifications:

Overview:

Dimensions: 140 x 120 x 45 mm (5.5 x 4.7 x 1.8")
UniFi Application Suite: Access
Supported Doors: 2
Maximum User Count: 10,000

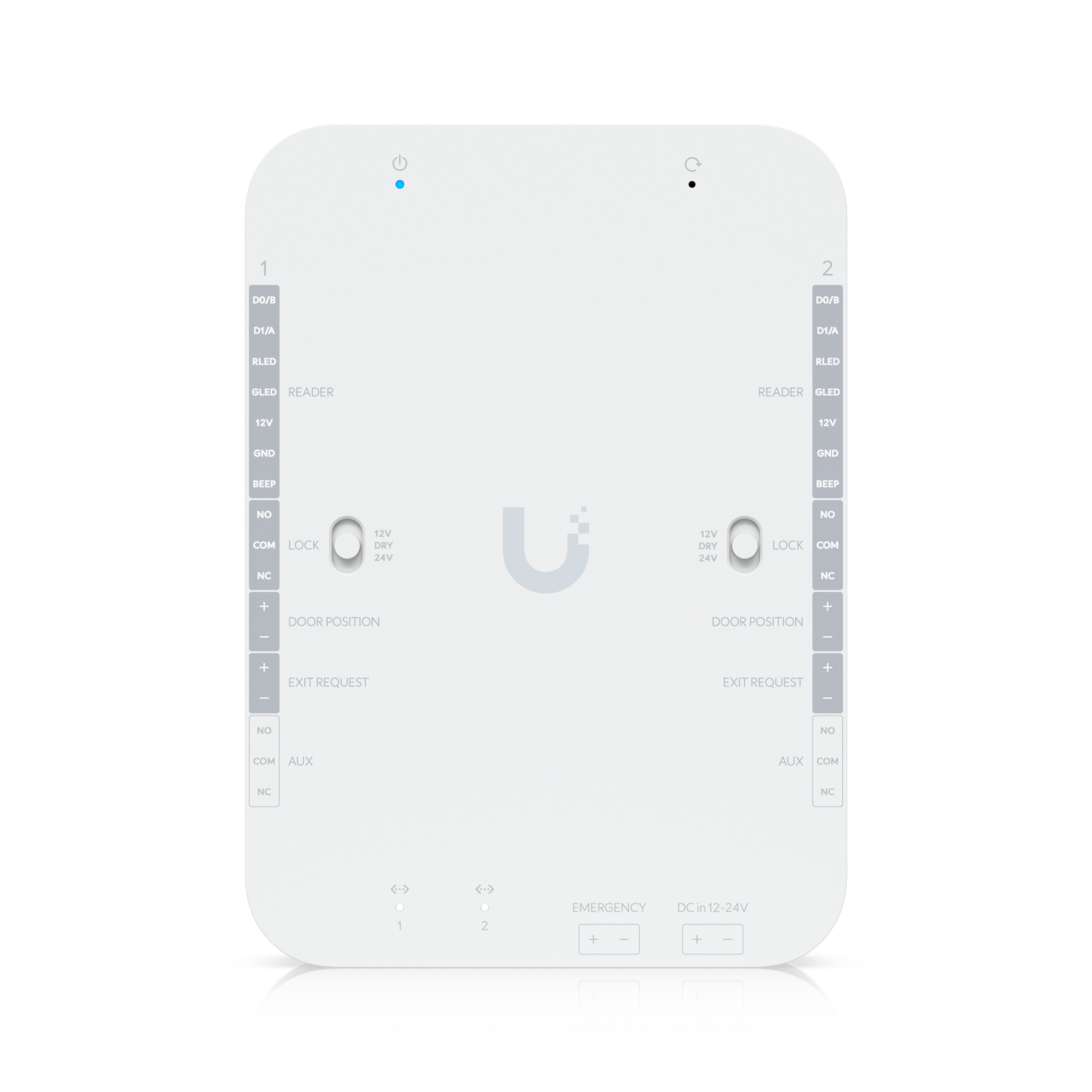

Input Terminals:
- (2) Third-party Wiegand Reader / UniFi Retrofit Reader
- (2) Door exit request
- (2) Door position
- (1) Emergency
Power Method: 12–24V DC
NDAA Compliant: Yes

Mechanical:

Weight: 420 g (14.8 oz)
Enclosure Material: Polycarbonate
Mount Material: SGCC steel
Mounting: Din-rail (Included)

Hardware:

Digital Input:
- (2) Third-party Wiegand Reader / UniFi Retrofit Reader
- (2) Door exit request
- (2) Door position
- (1) Emergency
Dry Output Relay:
- Lock: rated 30V DC, up to 1A
- Aux: rated 30V DC, up to 1A
Powered Output Relay:
- 12V Lock: 12V DC, up to 1A
- 24V Lock: 24V DC, up to 0.5A
Indoor Use Only
Networking Interface: (2) 10/100 MbE RJ45 ports
Power Supply: DC 12/24V
Max. Power Consumption: 50W
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 90% noncondensing
Certifications: CE, FCC, IC
