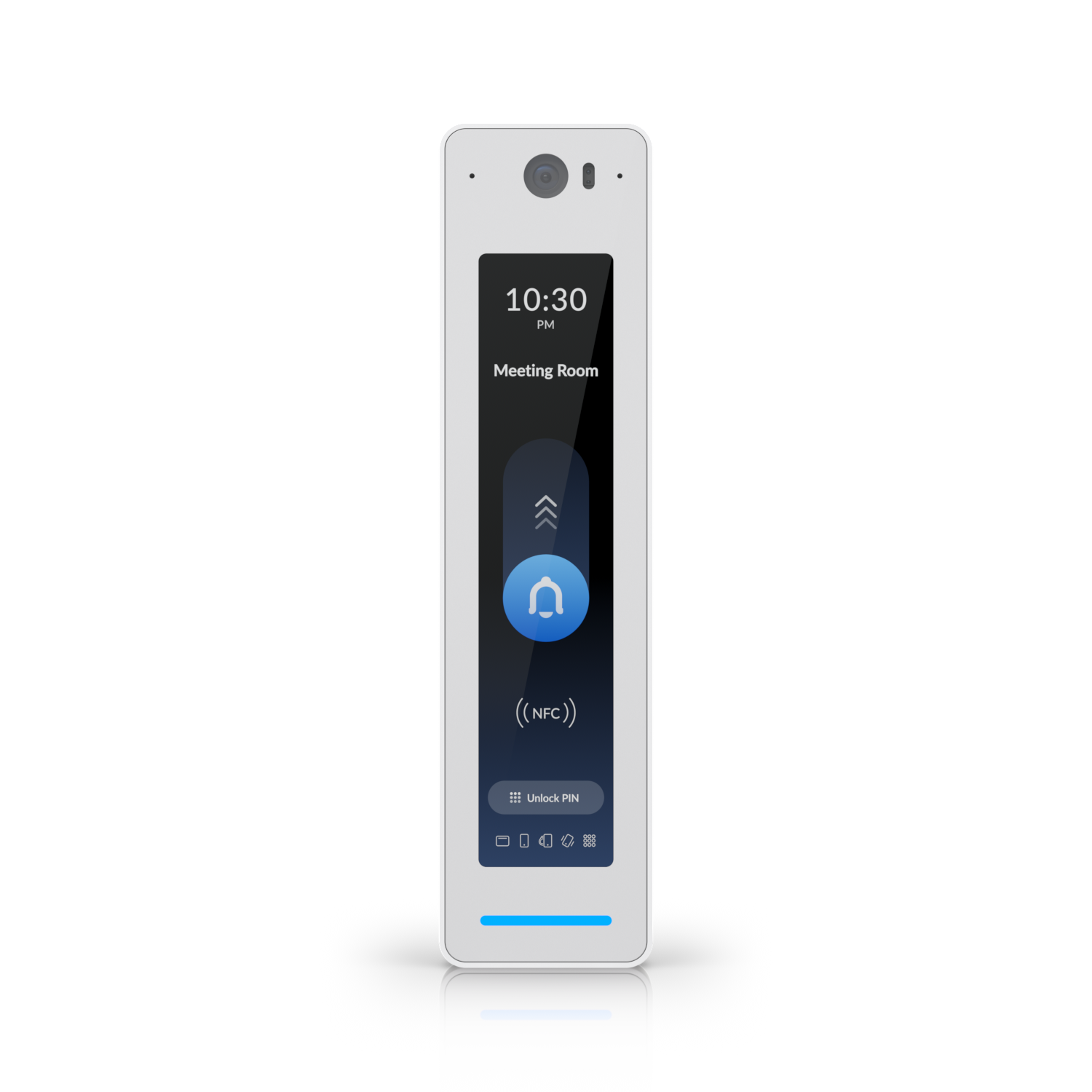

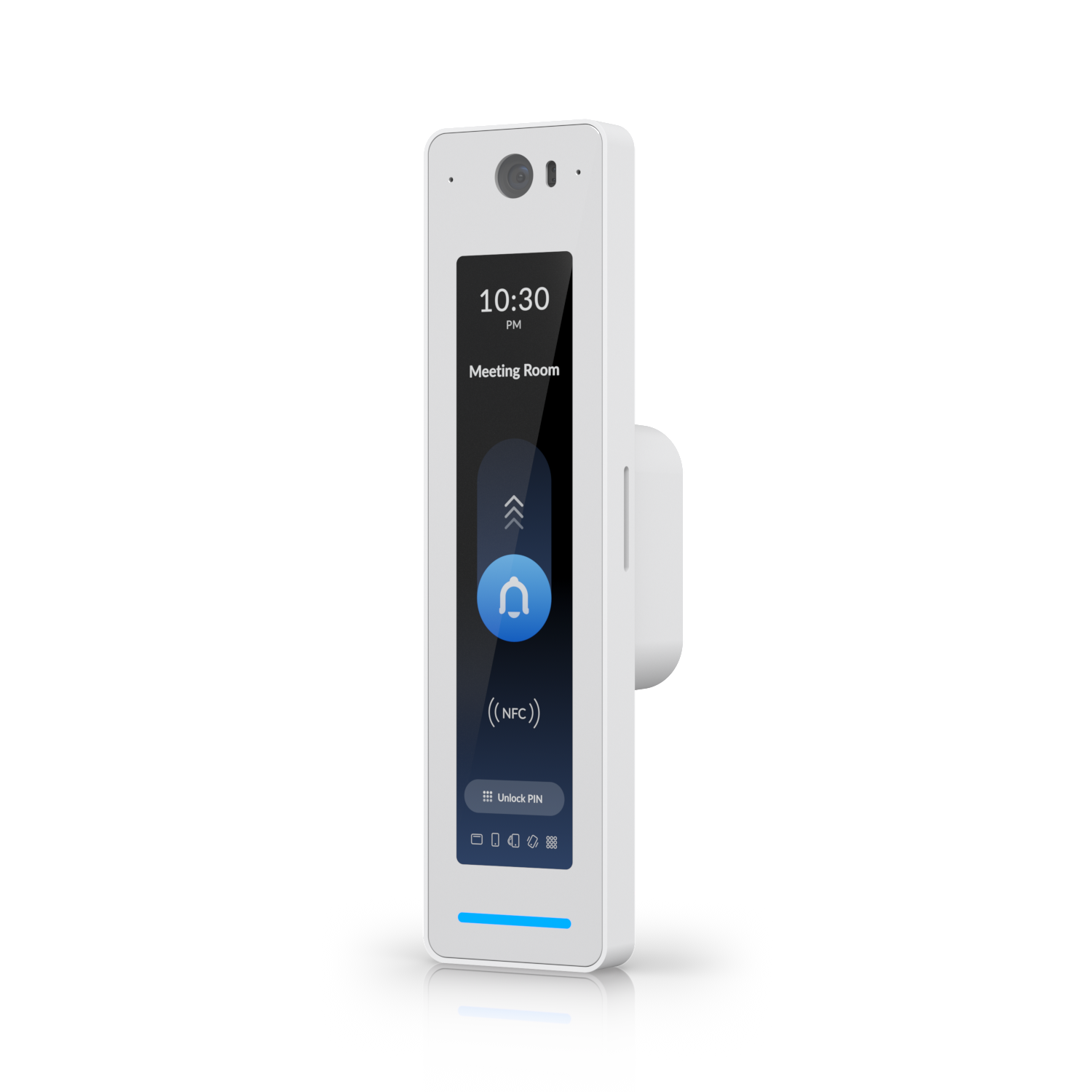

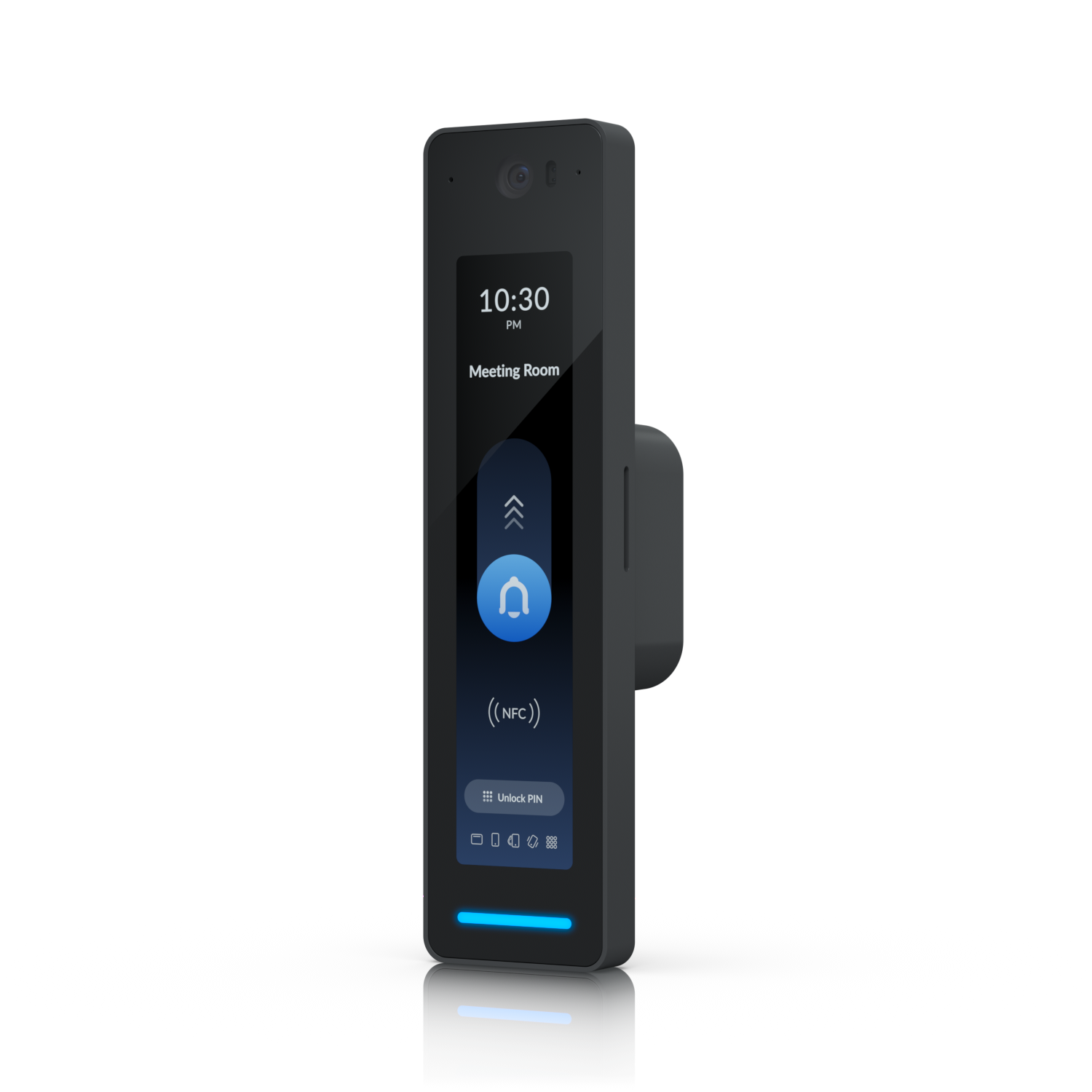

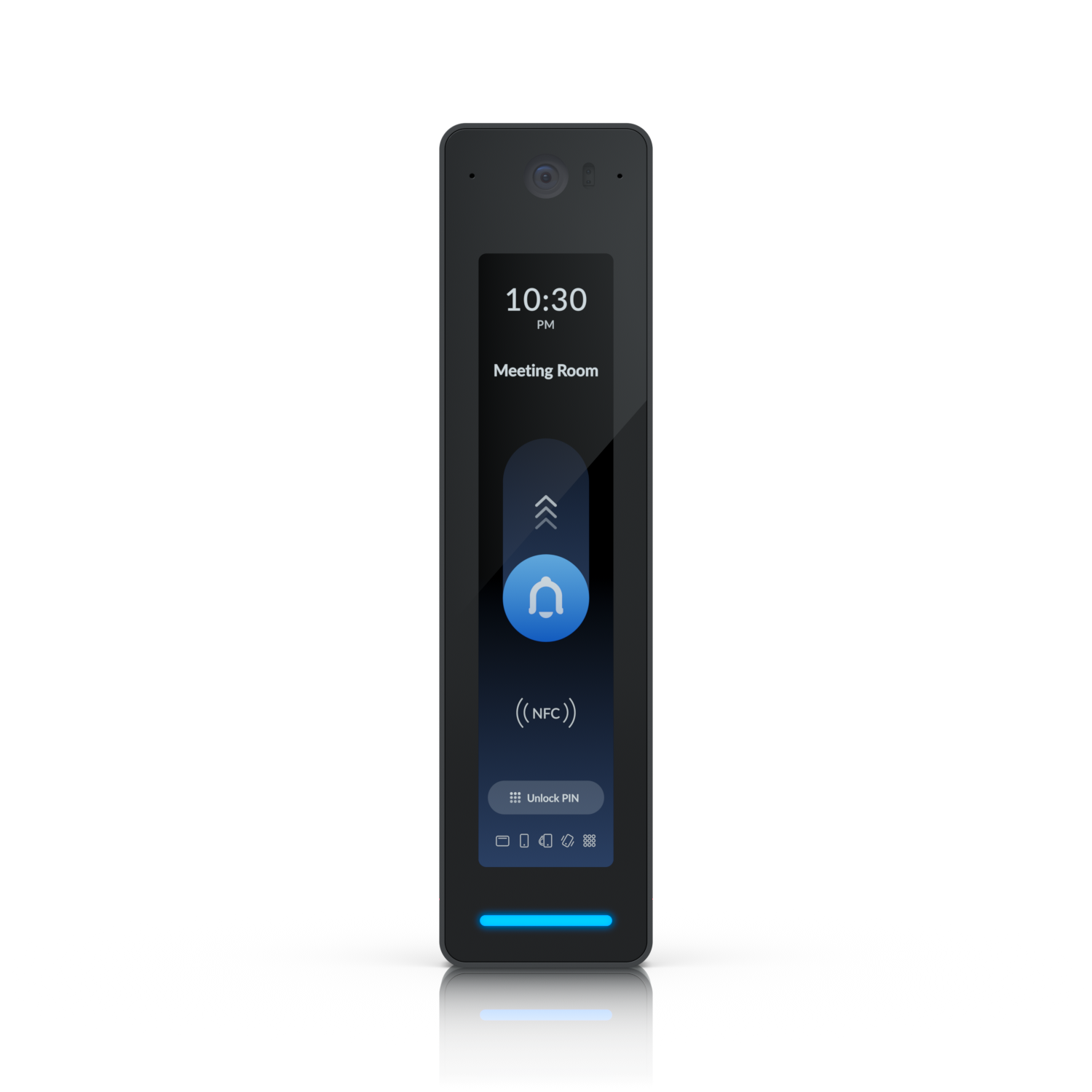

UA G3 READER PRO

The Access G3 Reader Pro (UA-G3-Pro) has the following technical specifications:

Overview:

• Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
• Integrated Camera: Yes
• NFC Card & Keyfob Access: Yes
• PIN Access: Yes
• Apple/Google Wallet: Yes
• Mobile Unlock: Yes
• Two-Way Intercom & Doorbell Access: Yes
• NDAA Compliant: Yes
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• Weatherproofing: IP55

Mechanical:

• Weight: 136 g (4.8 oz)
• Enclosure Material: Polycarbonate, glass
• Mount Material: Aluminum alloy

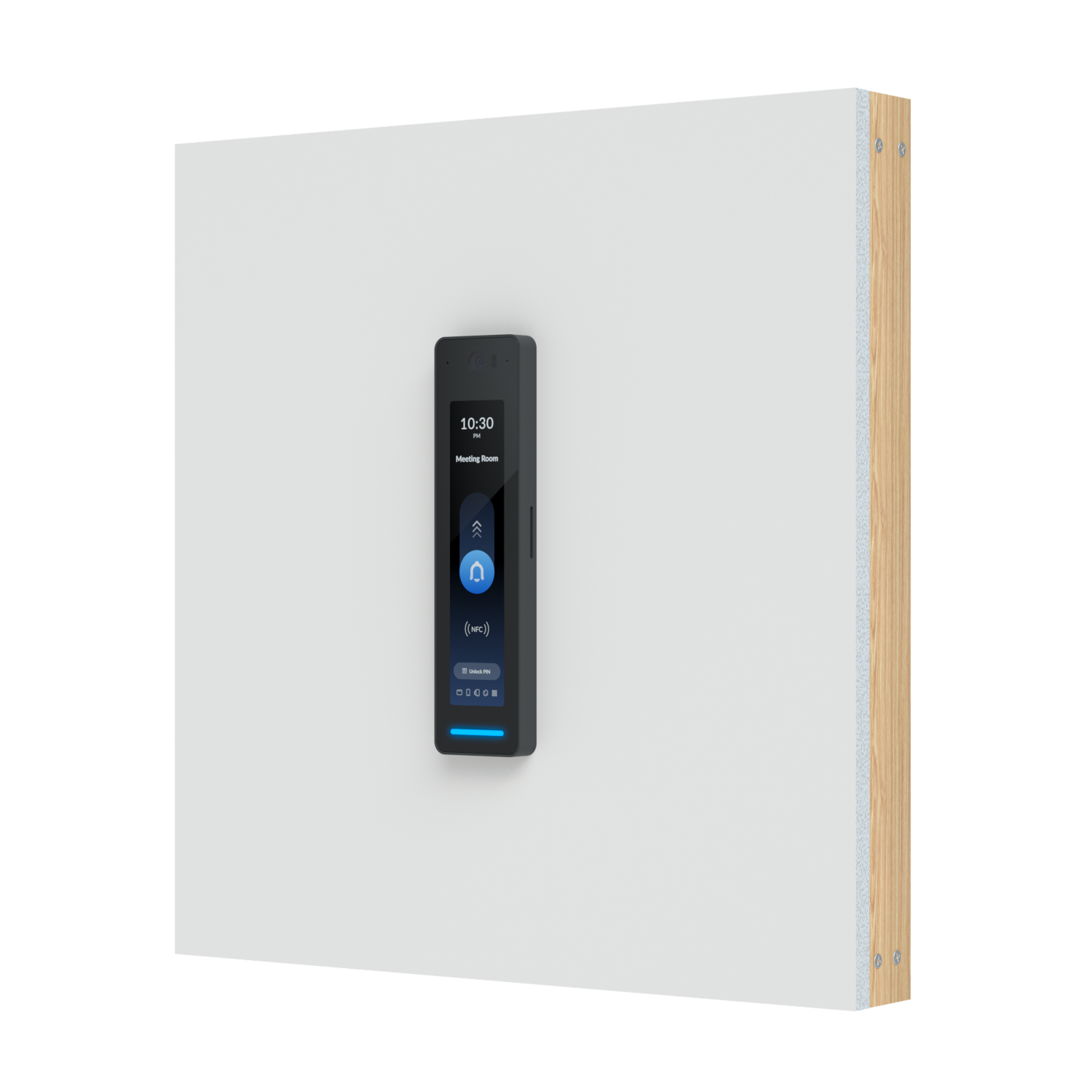

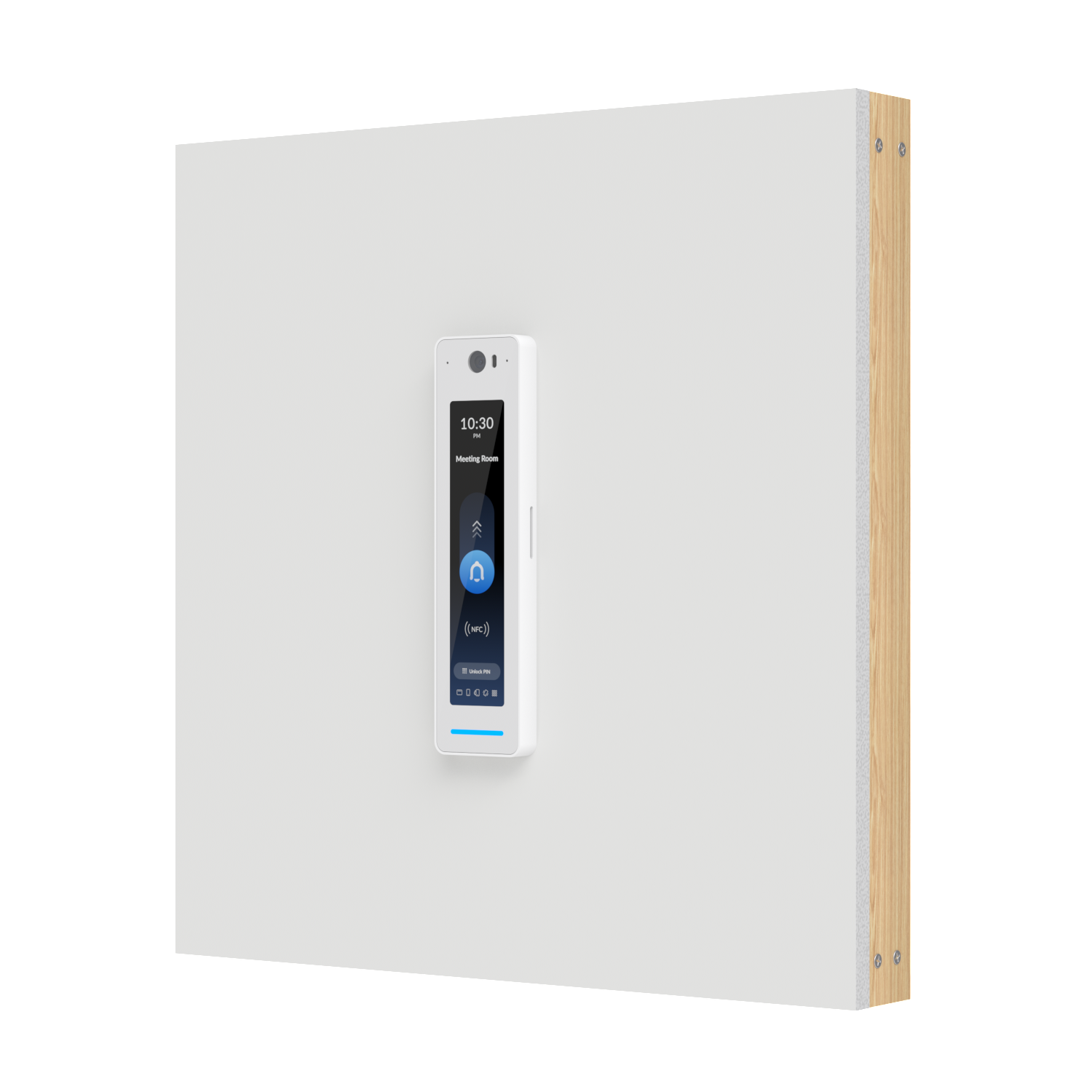

• Mounting: Wall, gang-box mount (Included); Angle mount, junction box (Optional)

Hardware:

• Indoor and Outdoor Use: Yes
• Ambient Operating Temperature:
  • Device: -30 to 45°C (-22 to 113°F)
  • Display: -10 to 45°C (14 to 113°F)
• Ambient Operating Humidity: 5 to 90% noncondensing

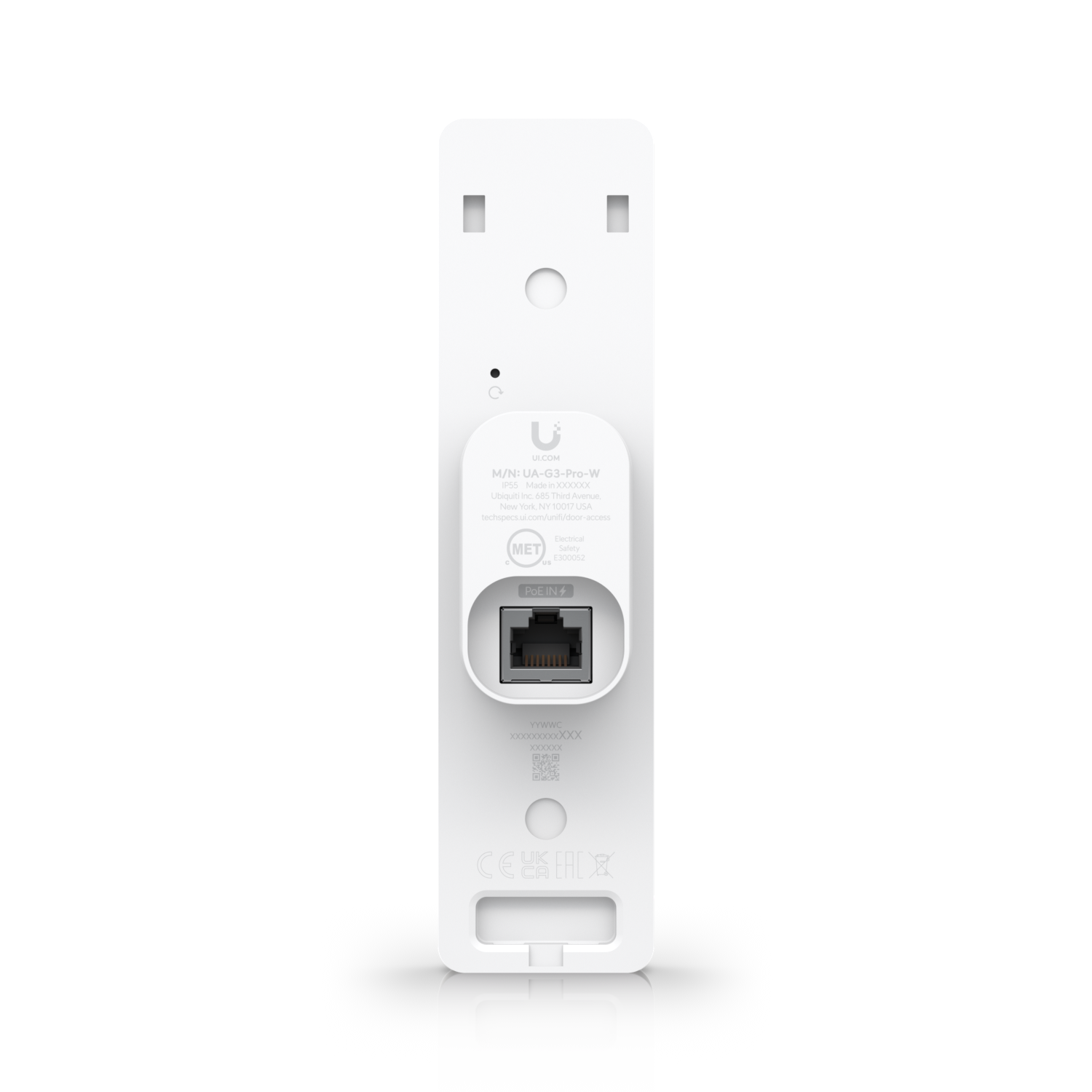

• Networking Interface: (1) GbE RJ45 port
• Connectivity: BLE 4.2, NFC
• Power Method:
  • PoE
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 6W
• Supported Voltage Range: 48V DC
• ESD/EMP Protection: Air: ±15kV, contact: ±8kV
• Sensors: Proximity sensor
• Display: 120 mm (4.7") diagonal
• Touch Screen Technology: Capacitive touch
• Display Luminance: 480 nits (Typical)
• Screen Orientation: Portrait
• Resolution: 1280 x 286 px
• Microphone: Yes
• Speaker: Yes
• LEDs: R/G/B/W/Amber
• Button: (1) Factory-reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18")
• NFC Technology:
  • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
  • MIFARE Classic / MIFARE DESFIRE
  • Sony FeliCa™ (ID only)
  • NFC Forum tags T1T, T2T, T3T, T4T, T5T
  • ECP 2.0

Certifications:

• CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1

Software:

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com.
