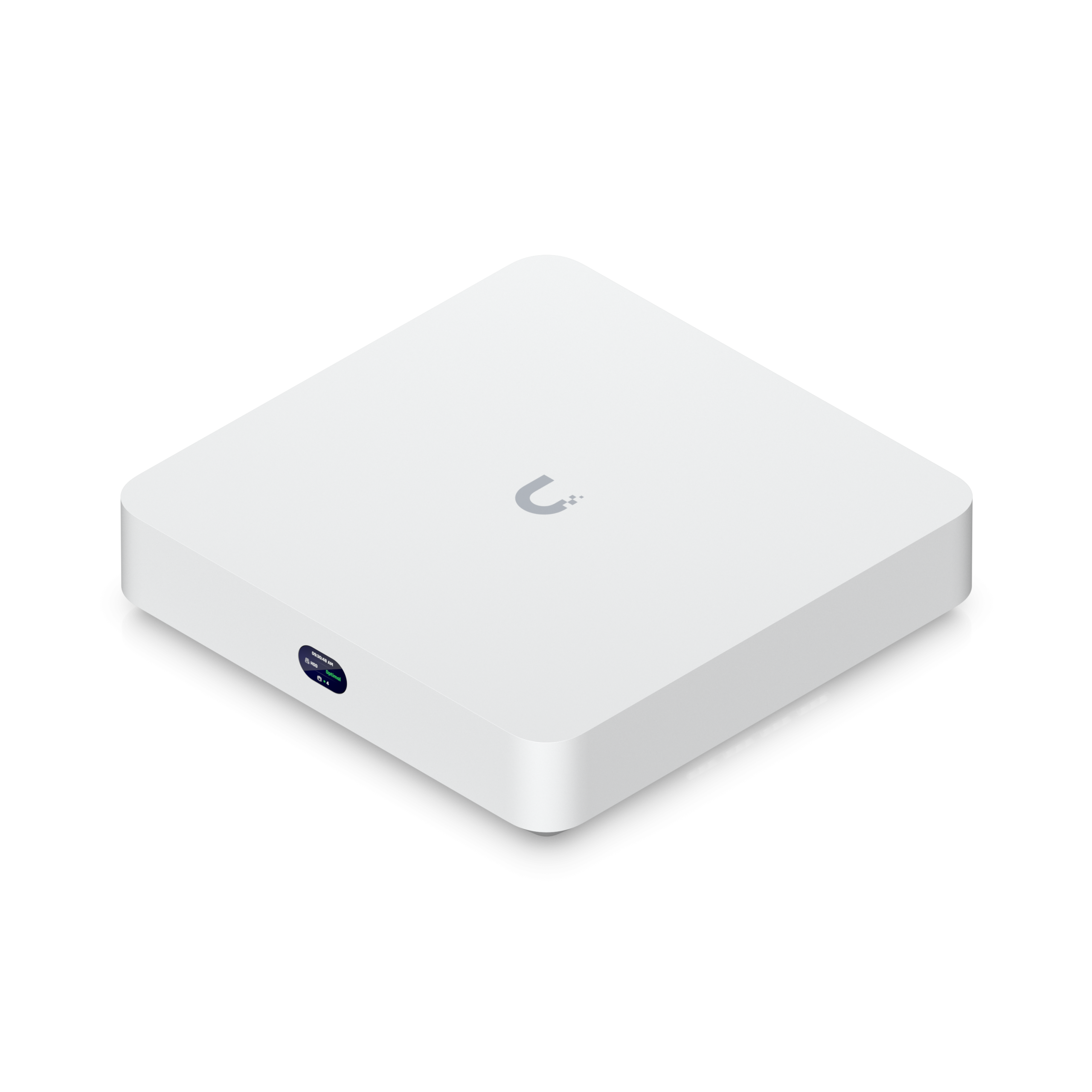

UNVR INSTANT

The Network Video Recorder Instant (UNVR-Instant) is a compact UniFi Protect NVR with integrated features for efficient surveillance management. Below are its technical specifications:

Overview:

• Dimensions: 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
• UniFi Application Suite: Protect, Access
• Managed Cameras:
  • Up to 15 HD cameras
  • Up to 8 2K cameras
  • Up to 6 4K cameras
• Managed Access Hubs: 50
• Storage Capacity: (1) 3.5" drive bay

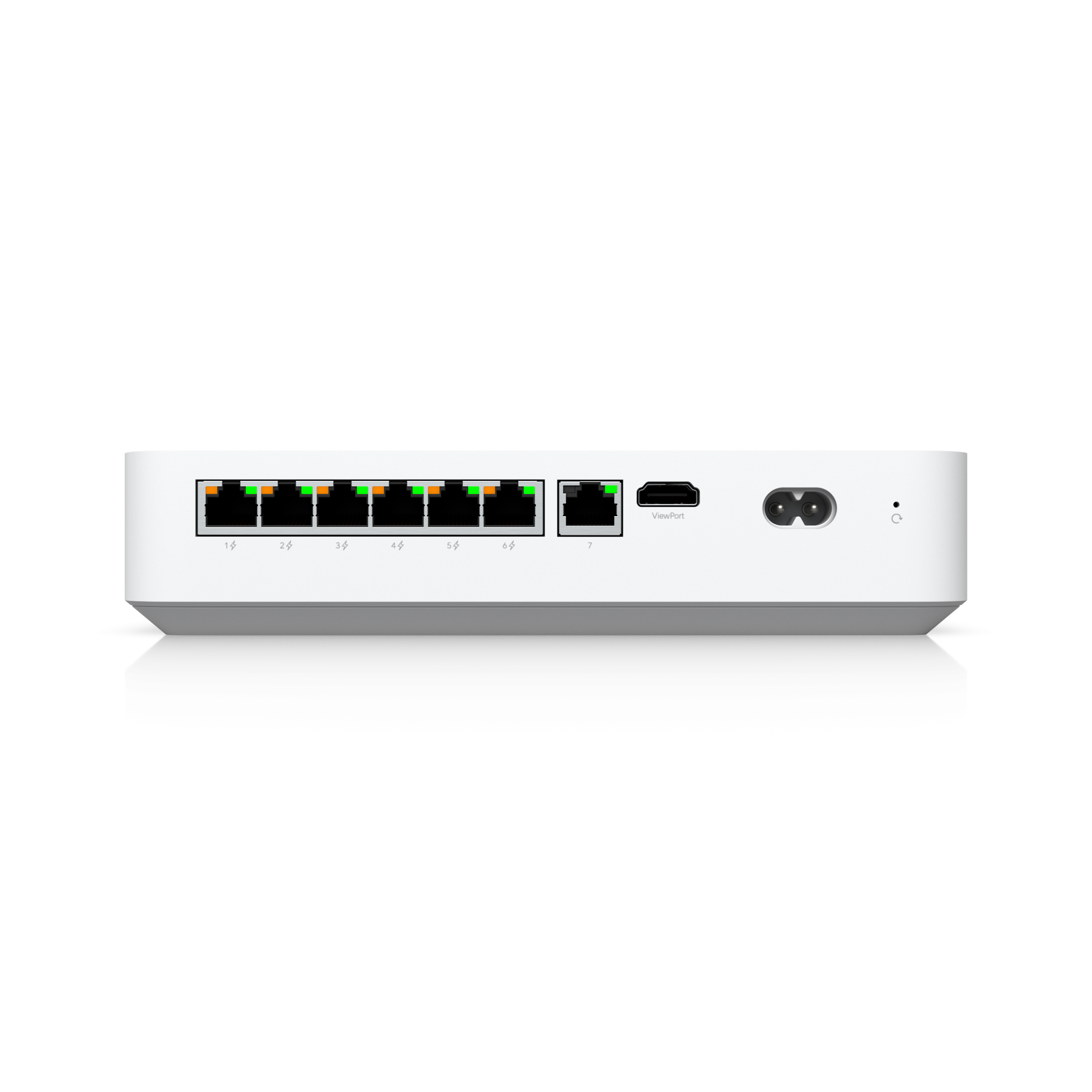

• Networking Interface:
  • (1) GbE RJ45 uplink port
  • (6) GbE PoE RJ45 downlink ports
  • (1) HDMI port (Viewport)
• Form Factor: Compact desktop
• Mounting: Wall, DIN rail mount (Included)
• Door Access Support: Yes
• Data Protection: Yes
• Vantage Point: Yes

Hardware:

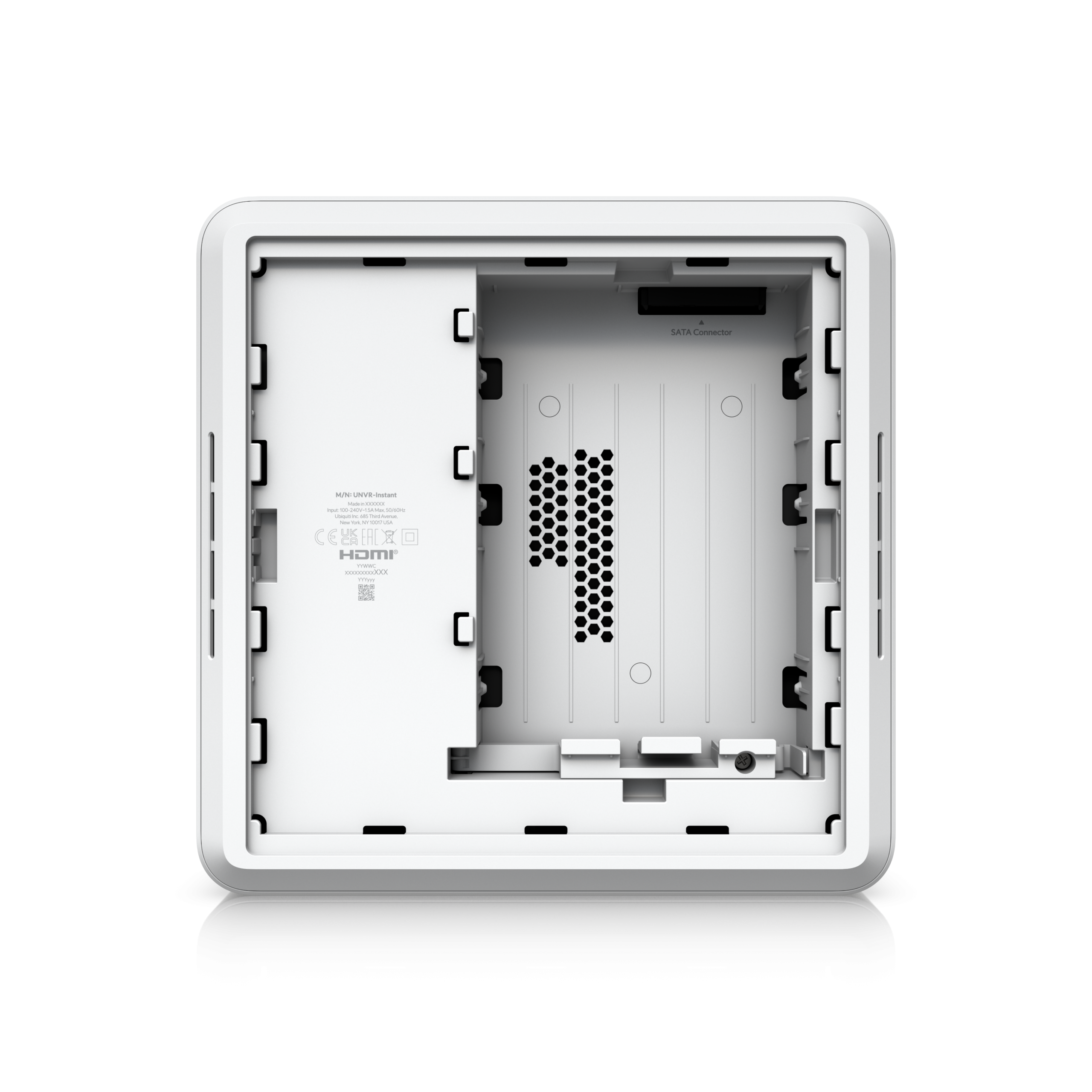

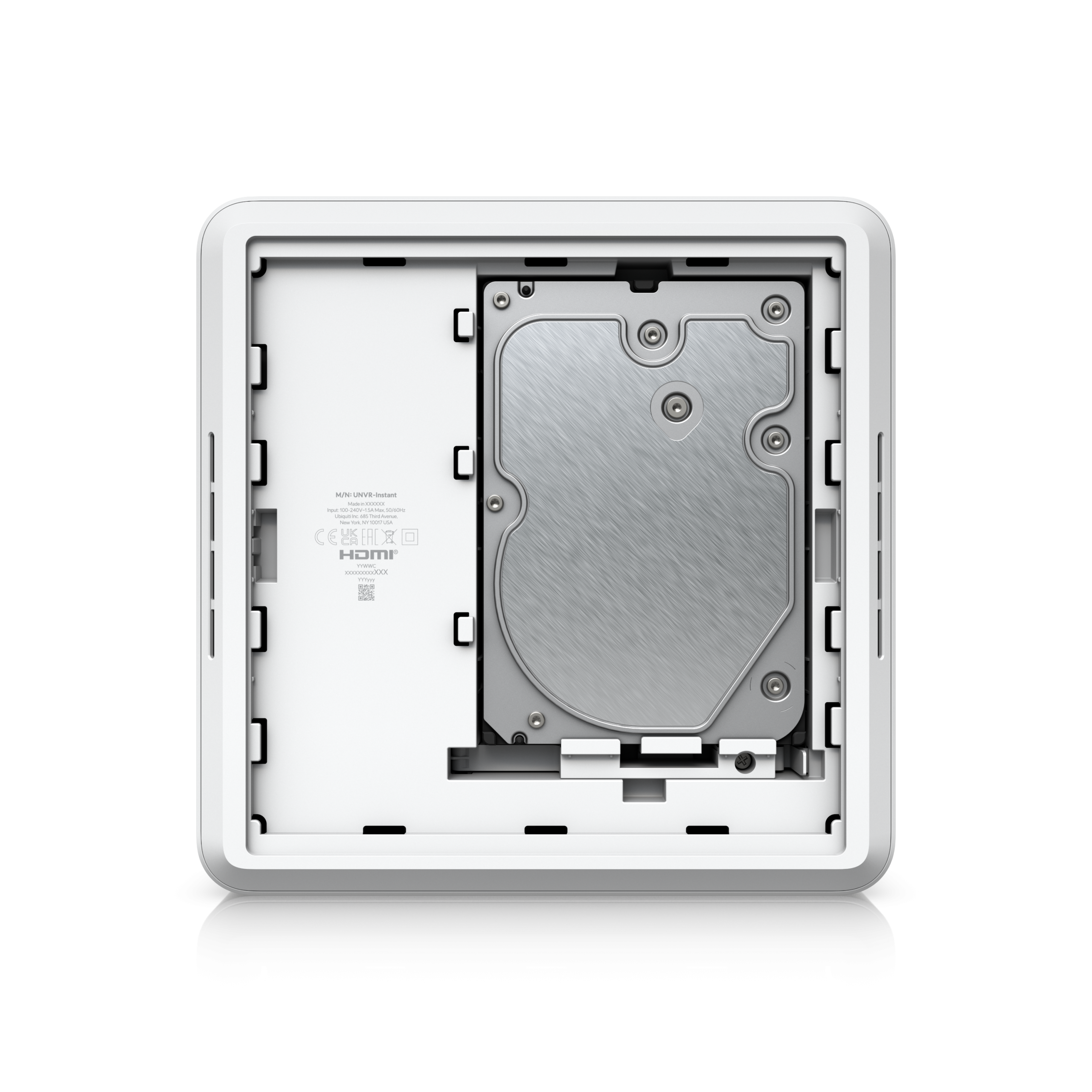

• Hard Drive Capacity: (1) 3.5" HDD support
• Max. Power Budget for Drives: 11W
• Max. Power Consumption: 9W
• Power Method: Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
• Power Supply: AC/DC, Internal, 60W
• PoE Budget: 40W
• Max. PoE Wattage per Port: 15.4W (PoE)
• Voltage Range (PoE Mode): 44–57V
• Weight: 1.04 kg (2.3 lb)
• Enclosure Material: Polycarbonate
• Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: FCC, IC, CE, Electrical Safety, SRRC

Note: Requires connection to a Gateway or Layer 3 switch.
