UA HUB GATE

15.500,00 ден 18.290,00 ден with DDV one time, and
4.650,00 ден / year

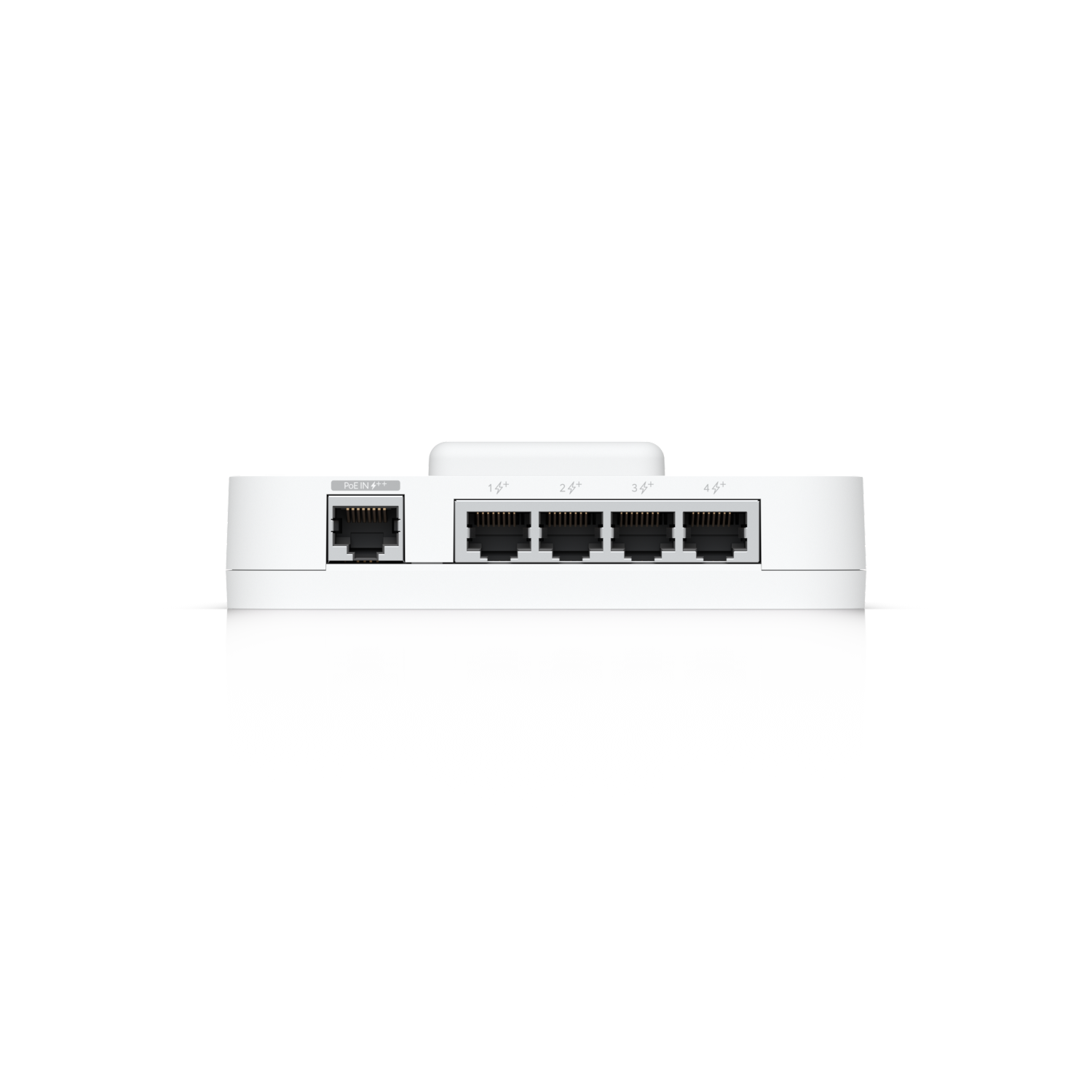

An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.

The Ubiquiti UniFi UA-Hub-Gate is the central component for advanced access control systems, designed to manage and secure access points efficiently. This hub integrates seamlessly with Ubiquiti’s UniFi Access ecosystem, providing centralized management through an intuitive interface.

The Access Gate Hub (UA-Hub-Gate) has the following technical specifications:

Overview:

Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1")
Supported Doors: 1 gate, 1 side door
Maximum User Count: 6,000
Input Terminals:
- (1) Gate exit request
- (1) Gate position
- (1) Side door exit request
- (1) Side door position
- (1) Emergency
Power Method:
- PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant: Yes
UL 294 Level:
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I

Mechanical:

Weight: 460 g (1 lb)
Enclosure Material: Polycarbonate

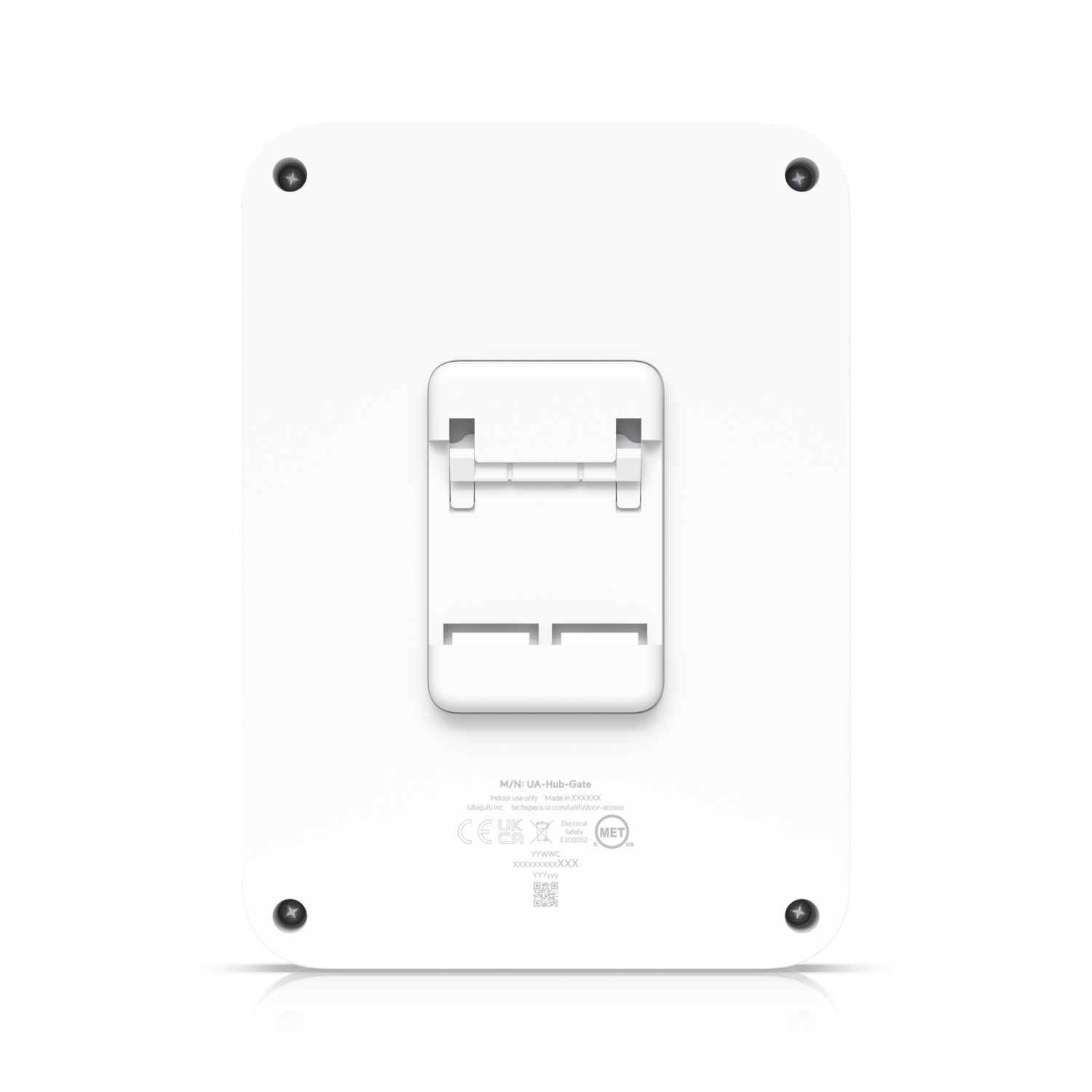

Mounting: DIN-rail (Included)

Hardware:

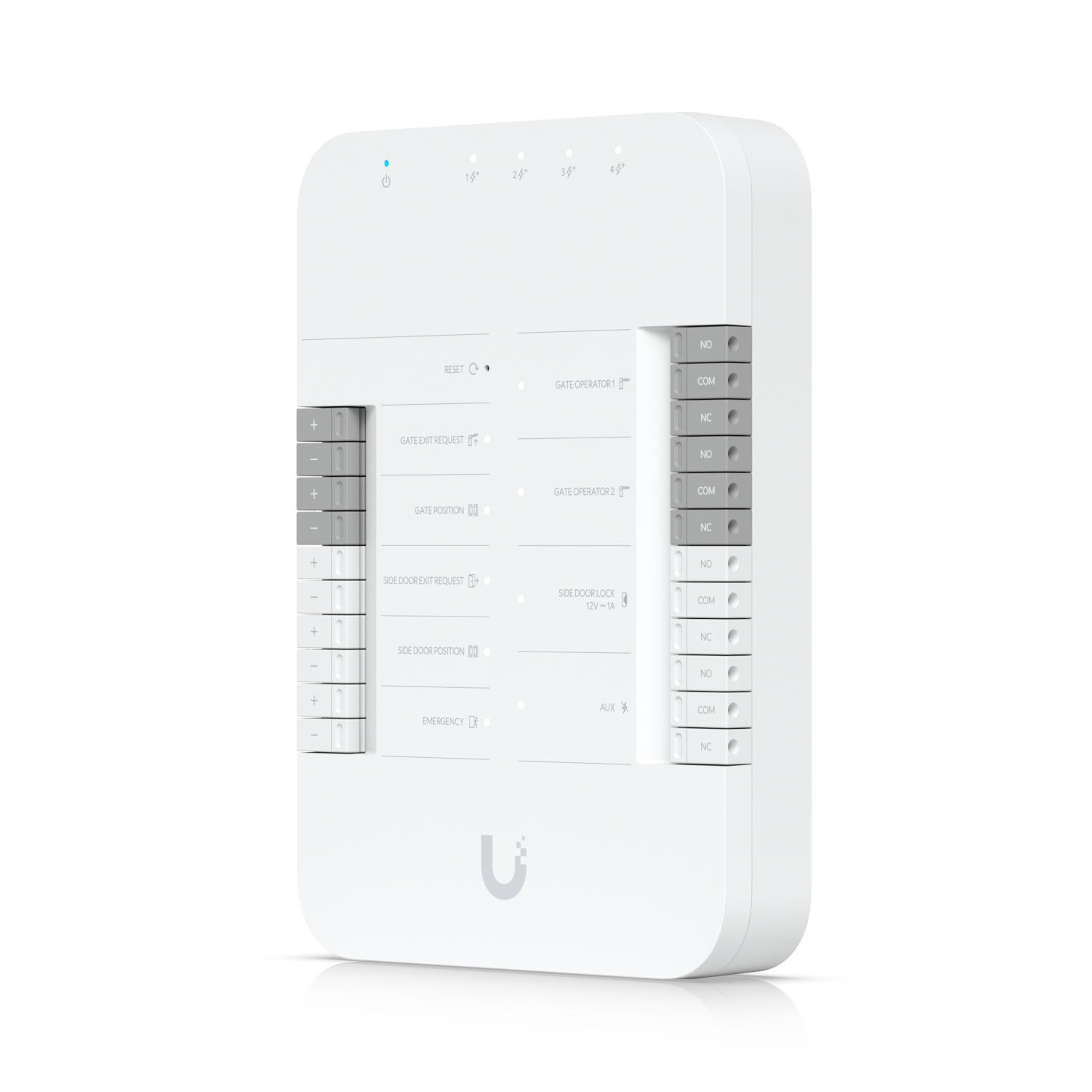

Digital Input: Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay:
- (2) Operator: rated 30V DC, up to 1A
- (1) Aux: rated 30V DC, up to 1A
Powered Output Relay: Side door lock: 12V DC, up to 1A
Indoor and Outdoor Use:
- Indoor only: device itself
- Outdoor: with waterproof junction box
Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
Ambient Operating Humidity: 5 to 90% noncondensing
Networking Interface: (5) 10/100/1000 Base-T
PoE Interface:
- (1) PoE++ input, 50V DC, 1A
- (4) PoE+ outputs, 50V DC, 30W per port (Max 55W aggregated)
Max. Power Consumption:
- 22W (Without PoE output)
- 60W (With PoE output)
LEDs: W/B
Button: (1) Factory-reset
