UA READER LITE

The Access Reader Lite has the following technical specifications:

Overview:

• Dimensions: 94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2")
• NFC Card & Keyfob Access: Yes
• Mobile Unlock: Yes
• Handwave Request to Exit: Yes
• NDAA Compliant: Yes
• UL 294 Level:
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I
• Weatherproofing: IP54

Mechanical:

• Weight: 67 g (2.4 oz)
• Enclosure Material: Polycarbonate

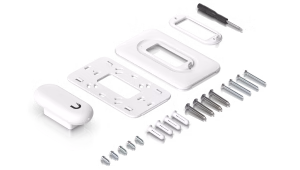

• Mounting: Wall-mount, gang box mount (Included)

Hardware:

• Indoor and Outdoor Use: Yes
• Ambient Operating Temperature: -20 to 40°C (-4 to 104°F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Networking Interface: (1) 10/100 MbE port
• Connectivity: BLE 4.1, Ethernet
• Power Method:
  • PoE
  • UL 294 Power-limited Class 2 PSU
  • UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption: 6W
• Supported Voltage Range: 44–57V DC
• LEDs: B/W (Learn more here)
• Button: (1) Factory-reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18")
• NFC Technology:
  • ISO 14443A, 14443B, 15693
  • NFC Tag 1, 2, 3, 4, 5
  • MIFARE Classic, Plus, Ultralight, DESFire

PoE Cabling Requirements:

• Minimum Performance Category: Cat 5e
• Conductor Gauge:
  • Patch cords: 26 AWG (0.13 mm²)
  • Horizontal/riser cable: 24 AWG (0.21 mm²)

Certifications:

• CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1

Software:

• Management Application: Access
• Software Information: The software version can be checked at https://unifi.ui.com.
