UVC G6 ENTRY

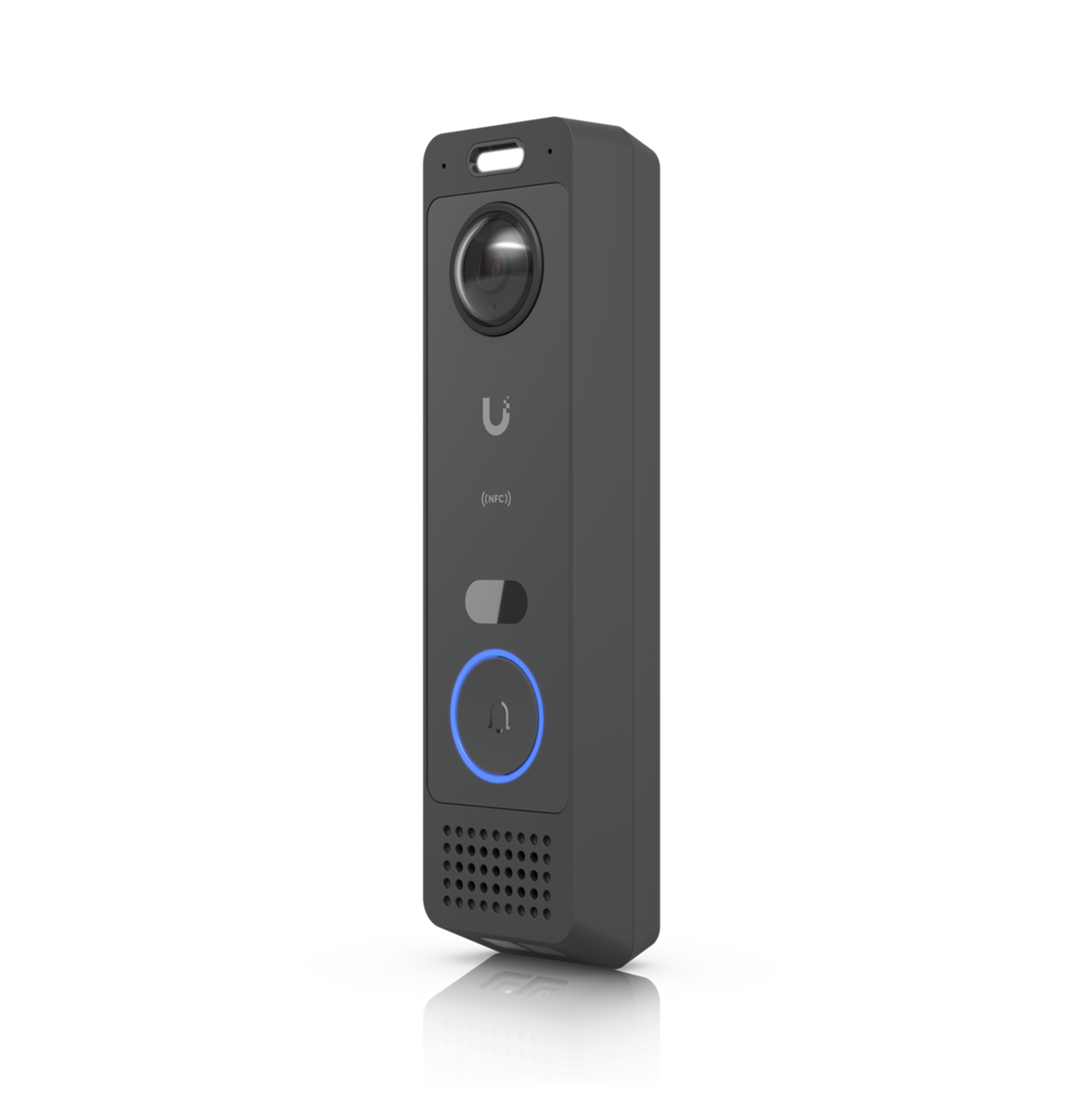

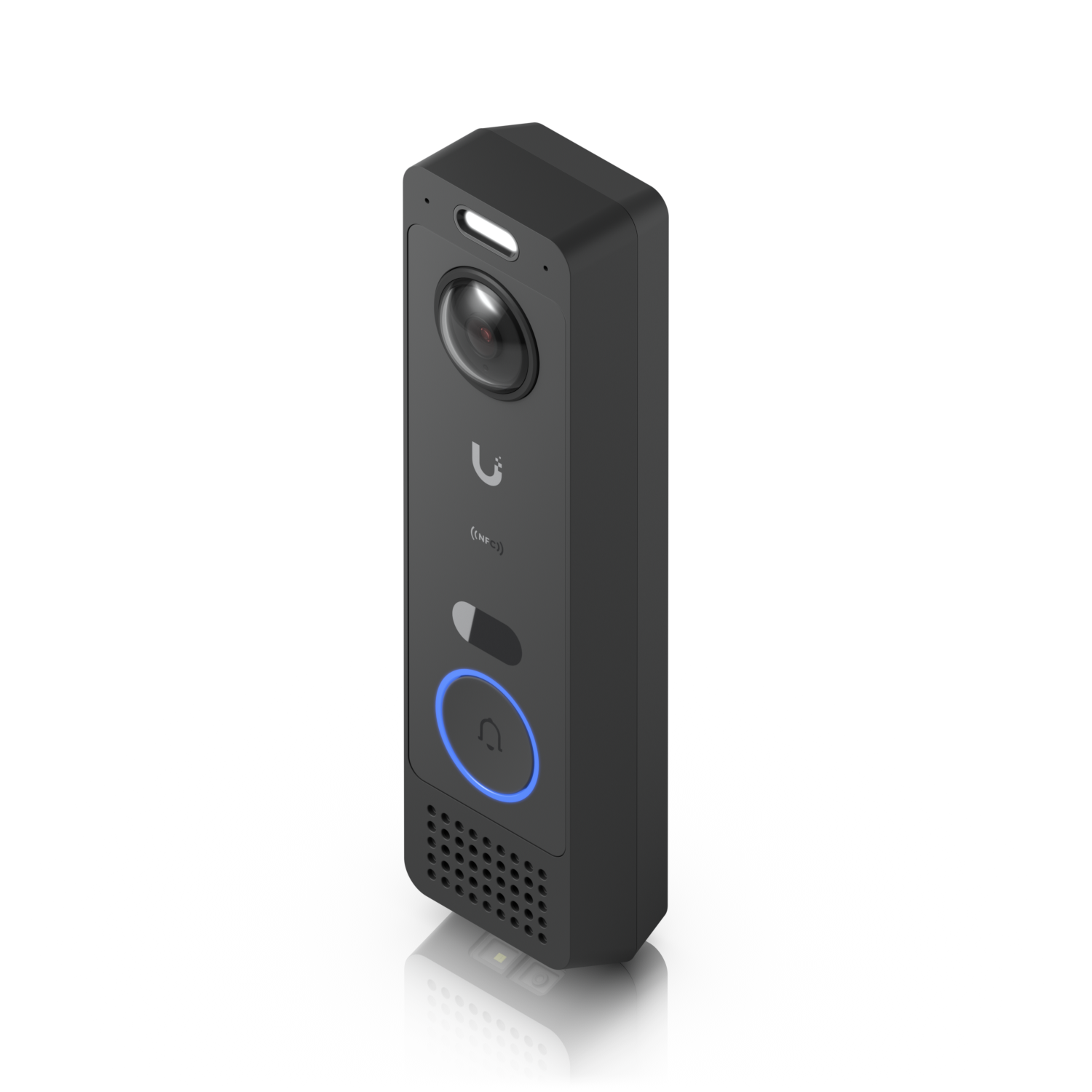

The Ubiquiti UniFi G6 Entry Doorbell is an all-weather, PoE+ Doorbell with enhanced AI detections, two-way audio, a secondary package camera, and integrated Access Reader capabilities. Below are its technical specifications:

Overview:

• Dimensions: 176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2")
• IR Night Vision: 5 m (16 ft)
• Face Recognition: Yes
• Smart Detections: People, Vehicles, Animals
• Resolution: 5MP
• Field of View: H: 100°, V: 135°, D: 180°
• Audio: Two-way audio
• Weatherproofing: IP55
• Tamper Resistance: IK07

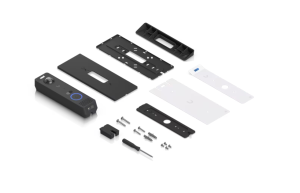

• Mounting: Wall mount, Gangbox mount plate, 20° wedge mount (Included); Junction box (Optional)
• UniFi Application Suite: Protect

Performance:

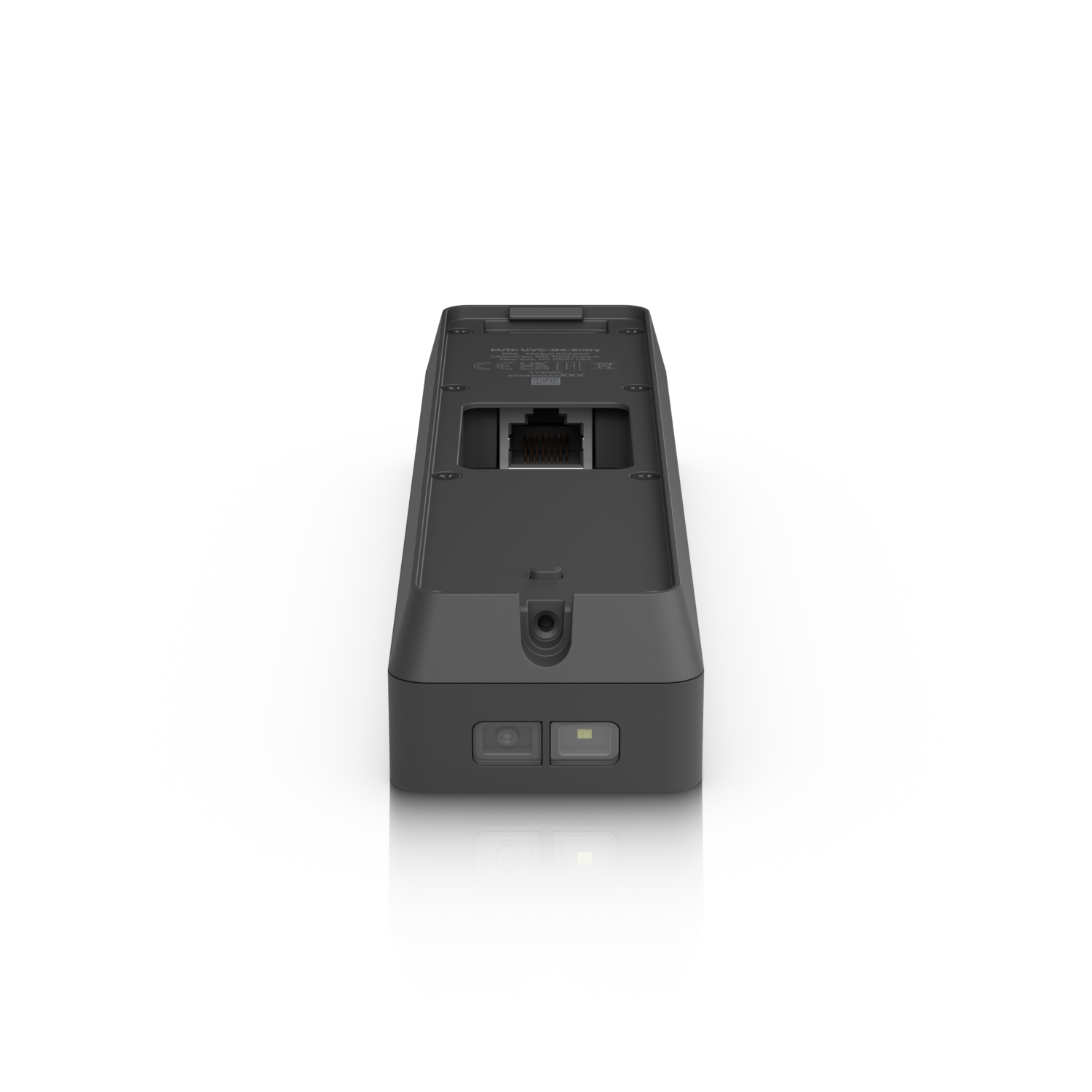

• Networking Interface: GbE RJ45 port
• Connectivity: BLE 4.1, NFC
• Video:
  • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
  • Max. Frame Rate: Main camera: 30 FPS; Package camera: 3 FPS
  • Resolution: Main camera: 5MP (1920 x 2560); Package camera: 8MP (3264 x 2448)
• Optics:
  • Sensor: Main camera: 5MP CMOS; Package camera: 8MP CMOS
  • Lens: Fixed focal length
  • Night Mode: Built-in IR LED illumination and IR cut filter

Hardware:

• Max. Power Consumption: 16W
• Supported Voltage Range: 42–57V DC
• Power Method: PoE+
• Weight: 275 g (9.7 oz)
• Enclosure Material: Aluminum
• Mount Material: Stainless steel, SGCC steel, Polycarbonate
• Buttons: Ring button, Factory-reset, Tamper switch
• Ambient Operating Temperature: -30 to 50°C (-22 to 122°F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC
