USW Flex XG

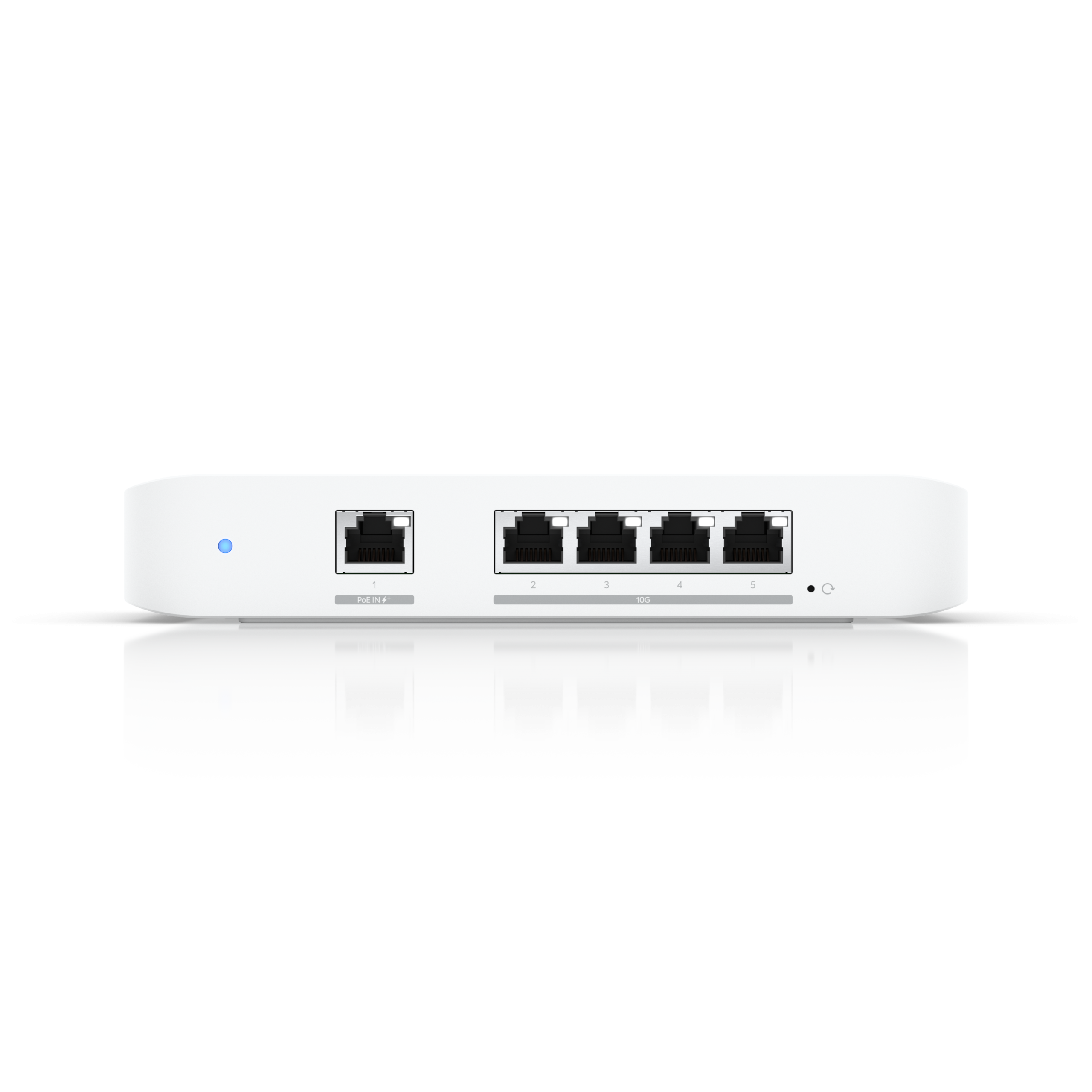

The Ubiquiti UniFi Flex 10 GbE Switch (USW-FLEX-XG) is a high-performance, managed Layer 2 multi-gigabit switch with one Gigabit PoE input and four 10GbE Ethernet ports. Below are its technical specifications:

Overview:

• Dimensions: 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
• Port Layout:
  • (1) 1 GbE RJ45 ports
  • (4) 10 GbE RJ45 ports
• Form Factor: Compact desktop, wall

Performance:

• Switching Capacity: 82 Gbps
• Total Non-Blocking Throughput: 41 Gbps
• Forwarding Rate: 61 Mpps
• Supported VLANs: 1000
• MAC Address Table Size: 16,000
• Packet Buffer Size: 1.5 MB
• Access Lists:
  • IPv4: 12
  • MAC: 10

Layer 2 Features:

• STP & RSTP
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• IGMP Snooping
• 802.1X Control
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Egress Rate Limit
• Flow Control
• Storm Control
• Multicast & Broadcast Rate Limiting
• MAC Address Blocking
• IP-Based ACLs & Network Isolation
• MAC-Based Port Restriction
• Port Isolation
• Port Mirroring
• Jumbo Frames
• Loop Protection

Hardware:

• Max. Power Consumption: 25W
• Power Method:
  • (1) PoE+
  • (1) USB Type-C, 5V DC, 5A
• Power Supply: AC/DC external, 25W
• Weight: 1.2 kg (2.7 lb)

• Enclosure Material: Polycarbonate
• Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel

Software:

• Application Requirements: UniFi Network version 6.1.67 and later
