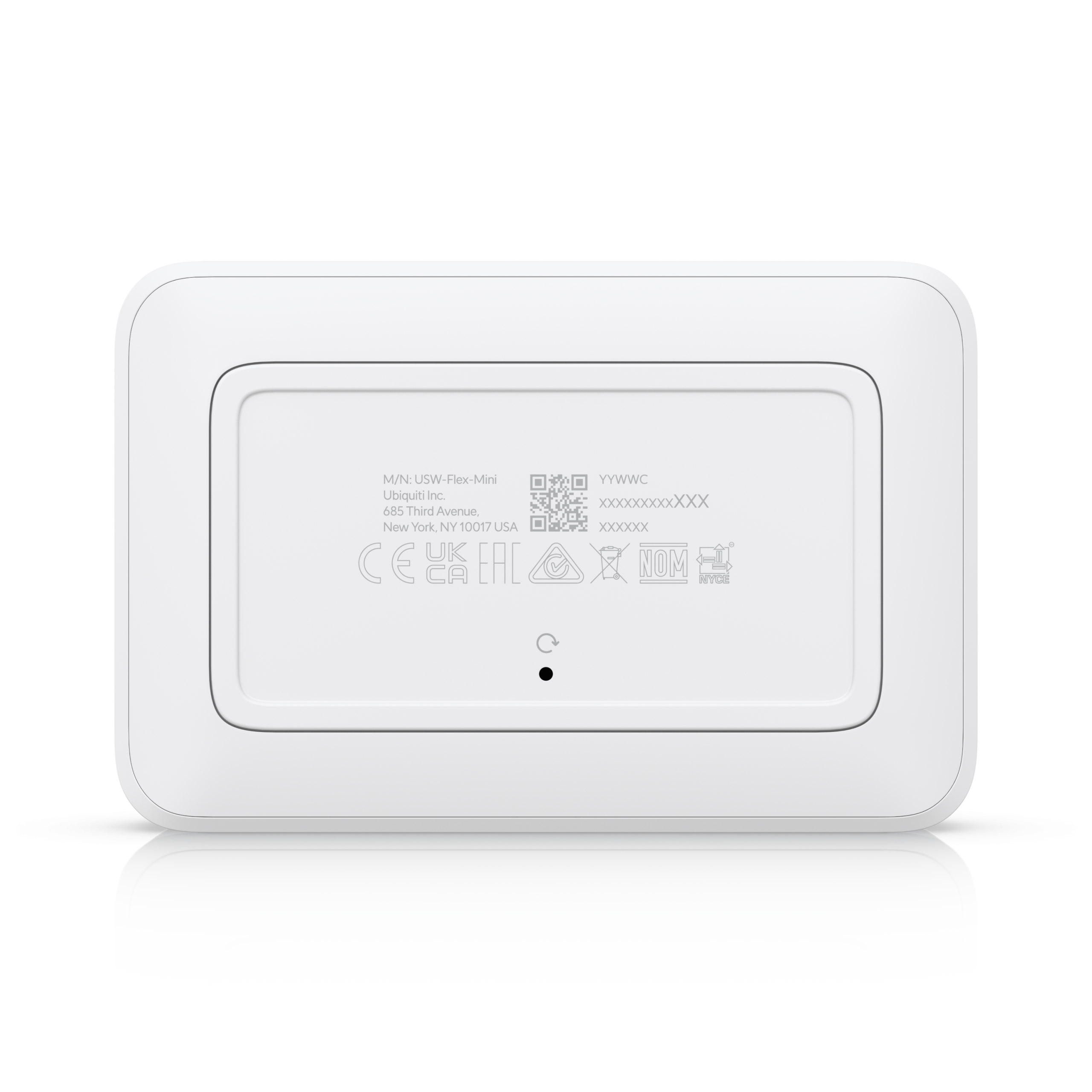

USW FLEX MINI

The Switch Flex Mini (USW-Flex-Mini) is a compact, 5-port, Layer 2 switch that can be powered via PoE or a 5V USB-C adapter. Below are its technical specifications:

Overview:

• Dimensions: 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
• Port Layout:
  • (5) 1 GbE RJ45 ports (1G/100M/10M)
  • (1) PoE input port for power
• Form Factor: Compact desktop

Performance:

• Switching Capacity: 10 Gbps
• Total Non-Blocking Throughput: 5 Gbps
• Forwarding Rate: 7 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 2,000

Layer 2 Features:

• Egress Rate Limit
• Flow Control
• Storm Control
• Multicast & Broadcast Rate Limiting
• Port Isolation
• Port Mirroring
• Jumbo Frames

Hardware:

• Max. Power Consumption: 2.5W
• Power Method:
  • USB Type-C, 5V DC, 1A
  • PoE
• Power Supply: AC/DC external, 5W
• Supported Voltage Range: 4.8–5.2V DC (USB) / 44–57V (PoE)
• Weight: 150 g (5.3 oz)
• Enclosure Material: Polycarbonate
• Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel

Software:

• Application Requirements: UniFi Network version 5.12.5 and later

This switch is ideal for compact and efficient network setups.
