UDB PRO

11.470,00 ден 13.534,60 ден with DDV one time, and
3.441,00 ден / year

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

_{Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

For the longest range, uplink to another UDB Pro or UDB Pro Sector is recommended.}

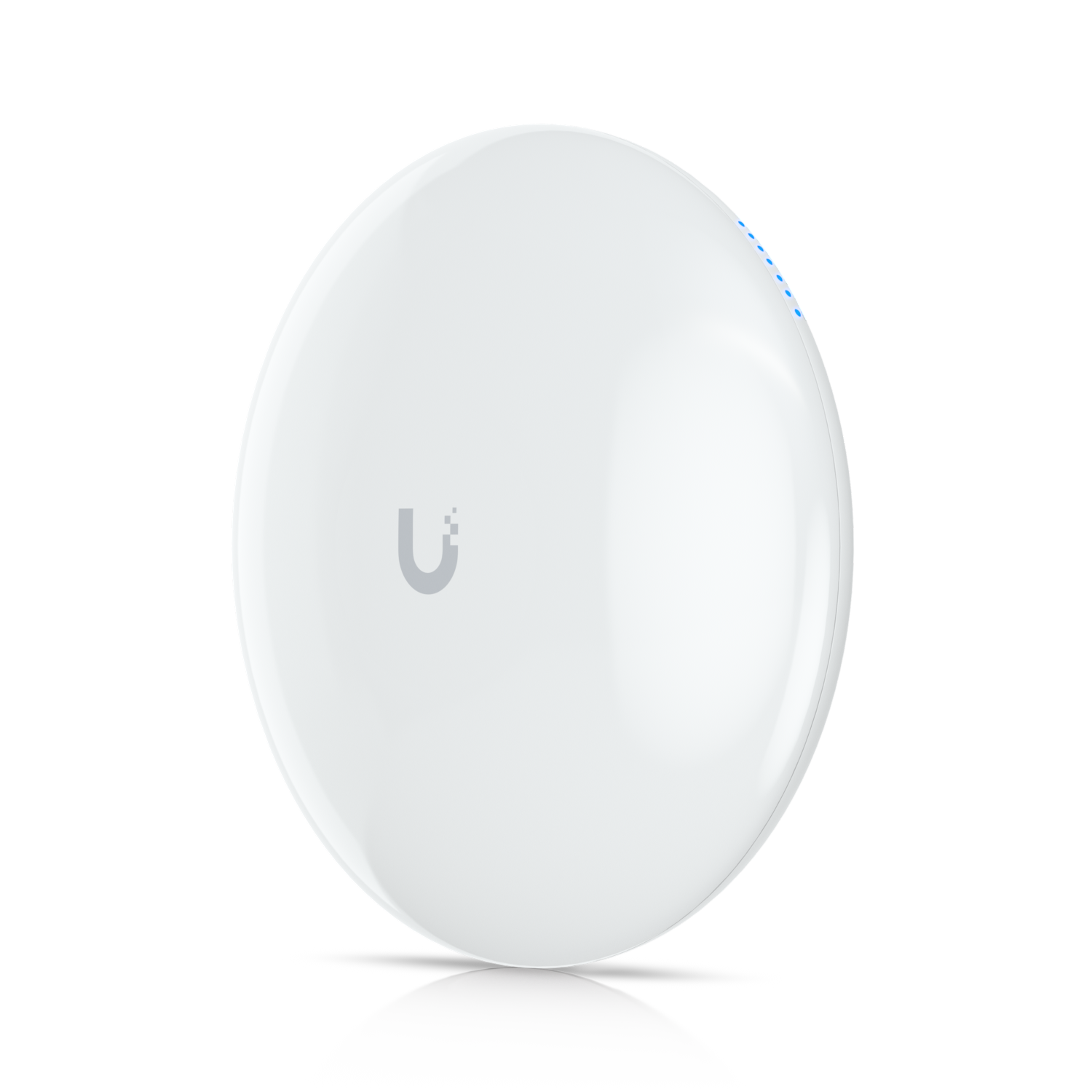

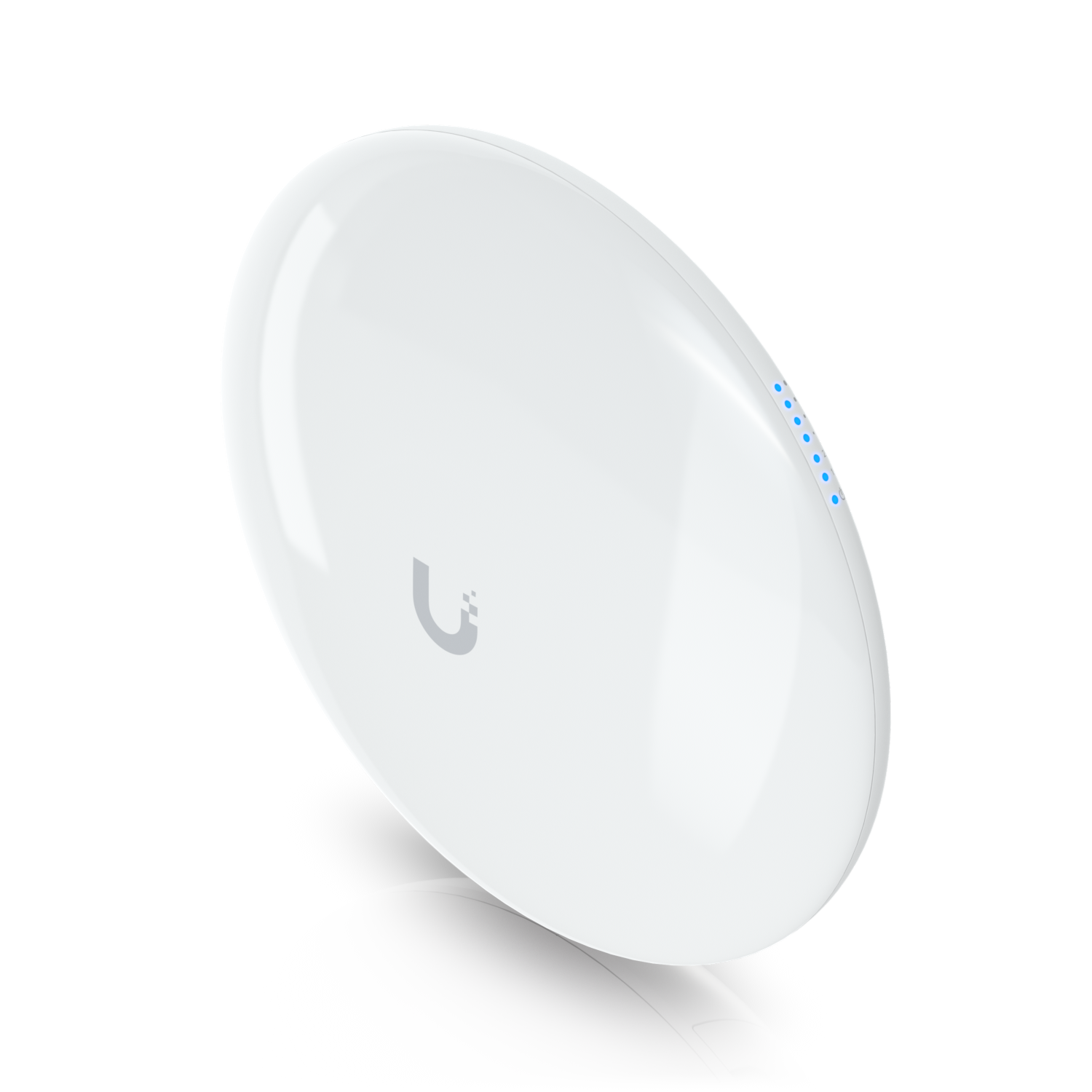

The Ubiquiti Device Bridge Pro (UDB-Pro) is a high-performance 5 GHz wireless bridge designed to extend network coverage over distances exceeding 5 kilometers. This device excels in point-to-point connectivity, enabling a stable and fast wireless link to another UDB-Pro or a seamless uplink to UniFi networks via the Auto-Link feature. With support for Wi-Fi standards 802.11a/n/ac and a 2x2 MIMO configuration, the UDB-Pro achieves a maximum data rate of 867 Mbps, making it ideal for high-bandwidth applications. Its powerful internal antenna with a gain of 19 dBi ensures reliable and secure connections over long distances, even in challenging outdoor conditions. This feature-rich solution is ideal for professionals seeking a dependable and easily managed long-range wireless bridge.

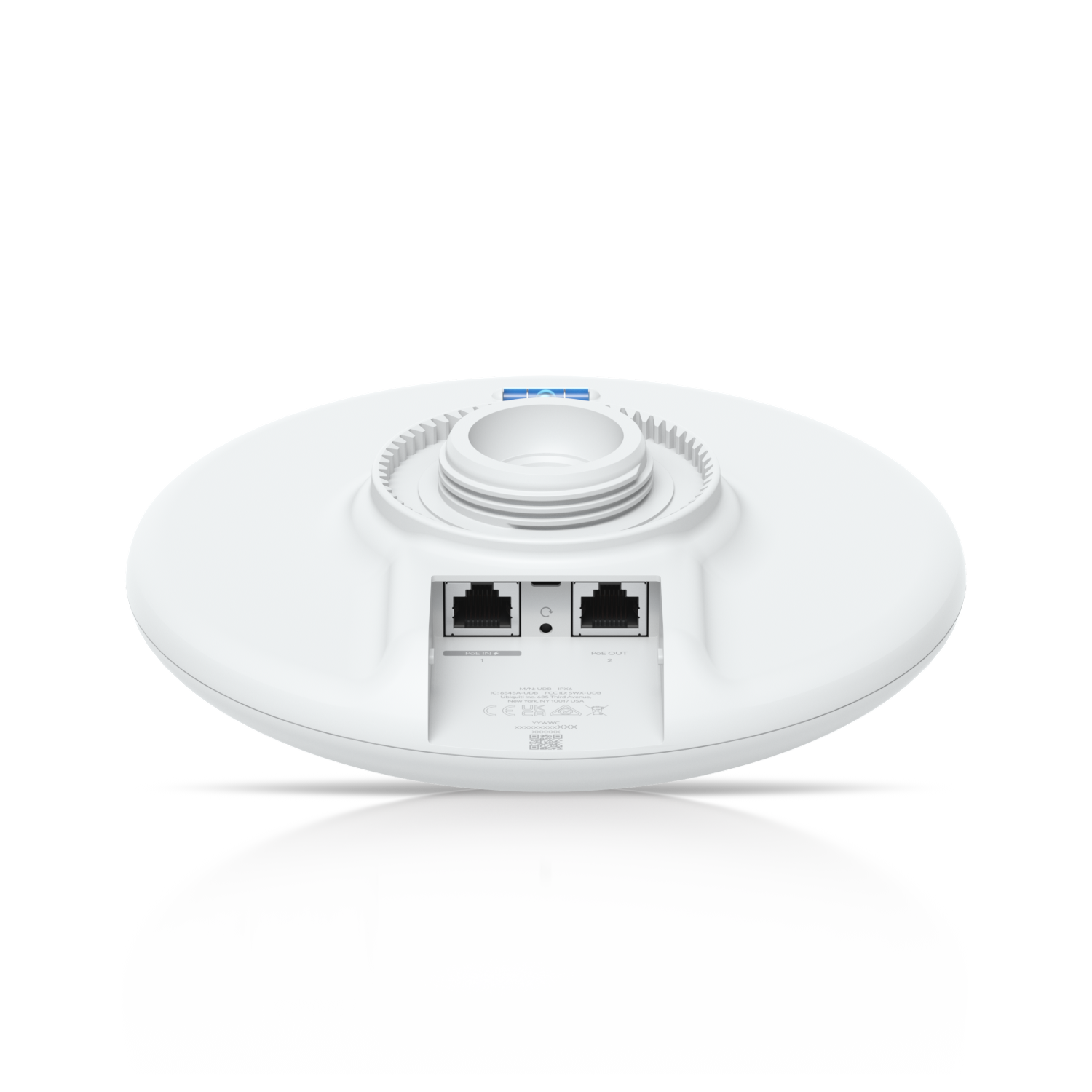

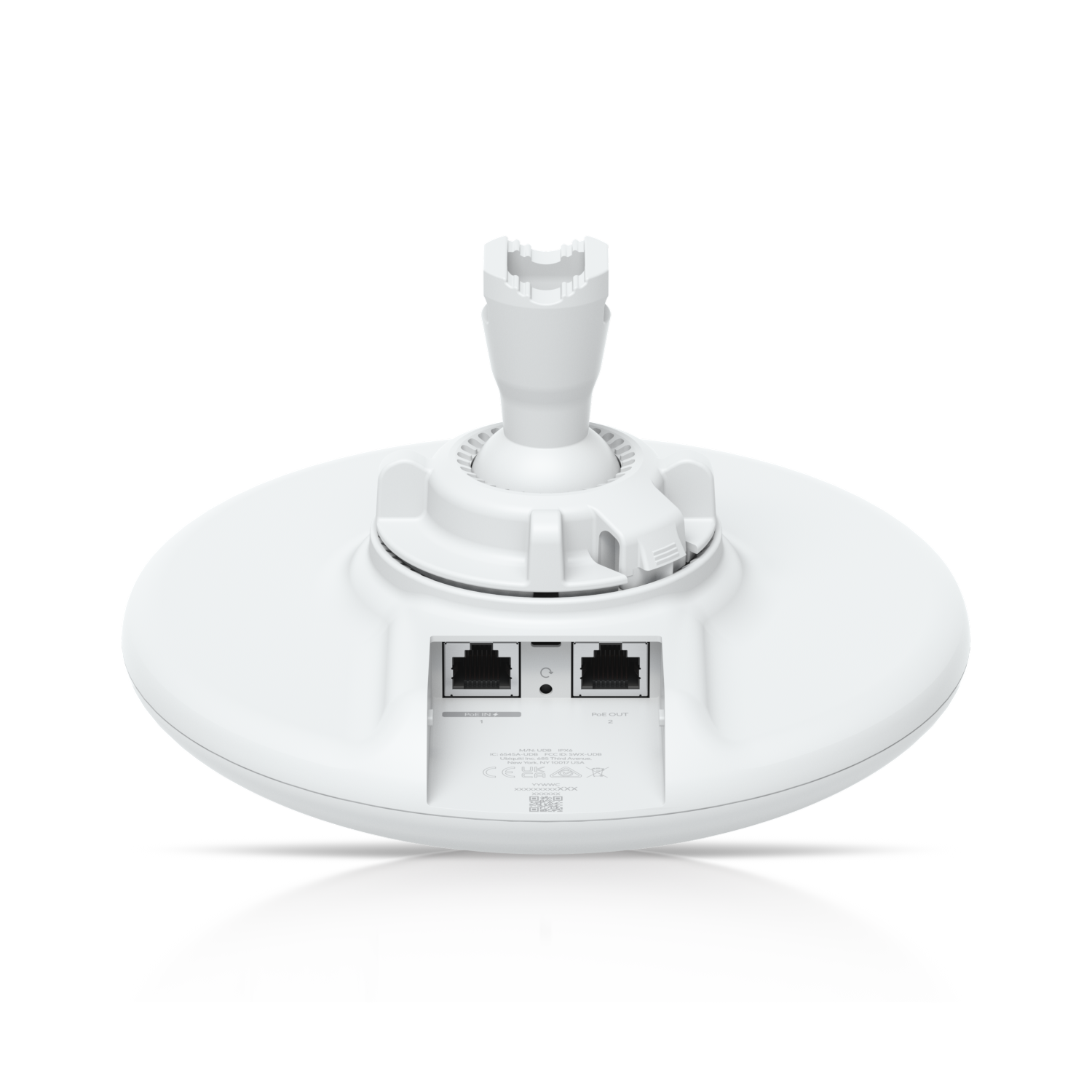

The Ubiquiti UniFi Device Bridge Pro enables point-to-point connections over 5+ km distances or seamless uplinking with UniFi WiFi Auto-Link. It features two GbE ports, including one with PoE output for powering devices, and is powered via PoE/PoE+. Designed for outdoor use with weatherproof protection and pole mounting, this unit requires management by a UniFi Console, official UniFi hosting, or a self-hosted UniFi Network Server. Below are its technical specifications:

Overview:

Dimensions: Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
WiFi Standard: WiFi 5
Spatial Streams: 2
Coverage Area: 5 km (3.1 mi)

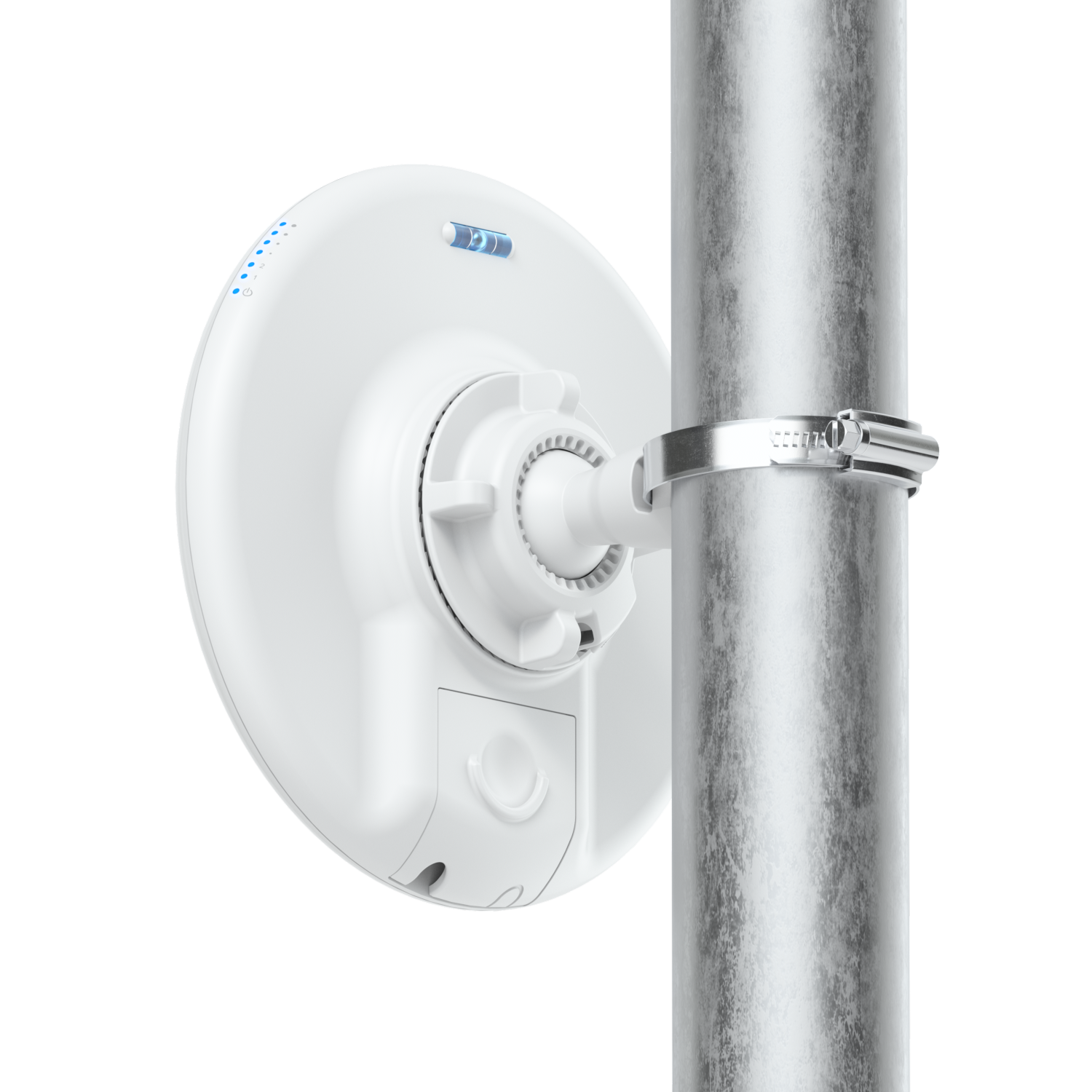

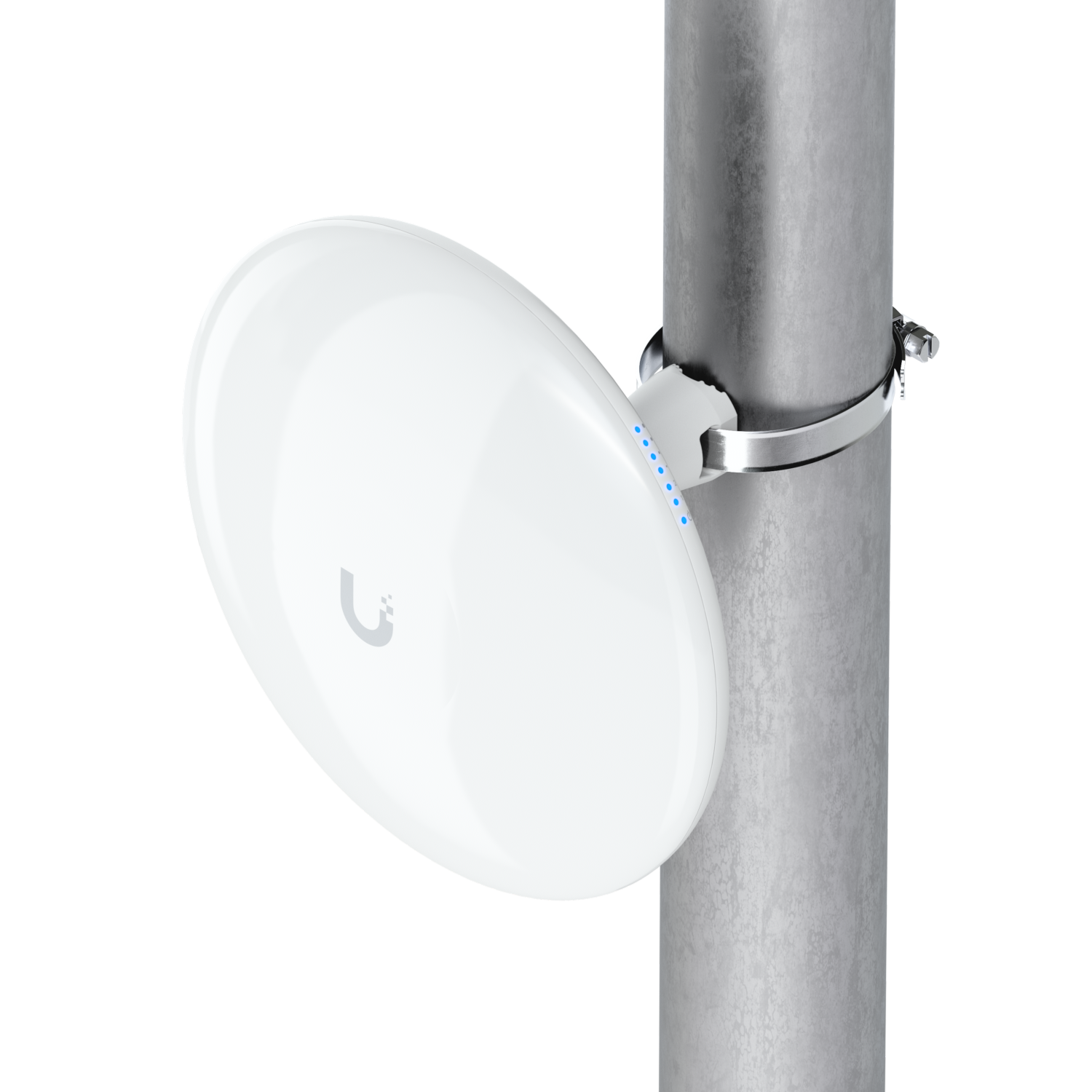

Mounting Locations: Wall, Pole (Pole Included)
Weatherproofing: IPX6
Power Method: PoE / PoE+ (Required for PoE output)
Power Supply: 48V, 0.32A PoE adapter (Included)

Performance:

MIMO:
- 5 GHz: 2x2
Max. Data Rate:
- 5 GHz: 867 Mbps (BW80)
Antenna Gain:
- 5 GHz: 19 dBi
Max. TX Power:
- 5 GHz: 25 dBm
Supported Data Rates:
- 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps
- 802.11a: 6 to 54 Mbps
Wireless Security: WPA2 AES
