U7 PRO

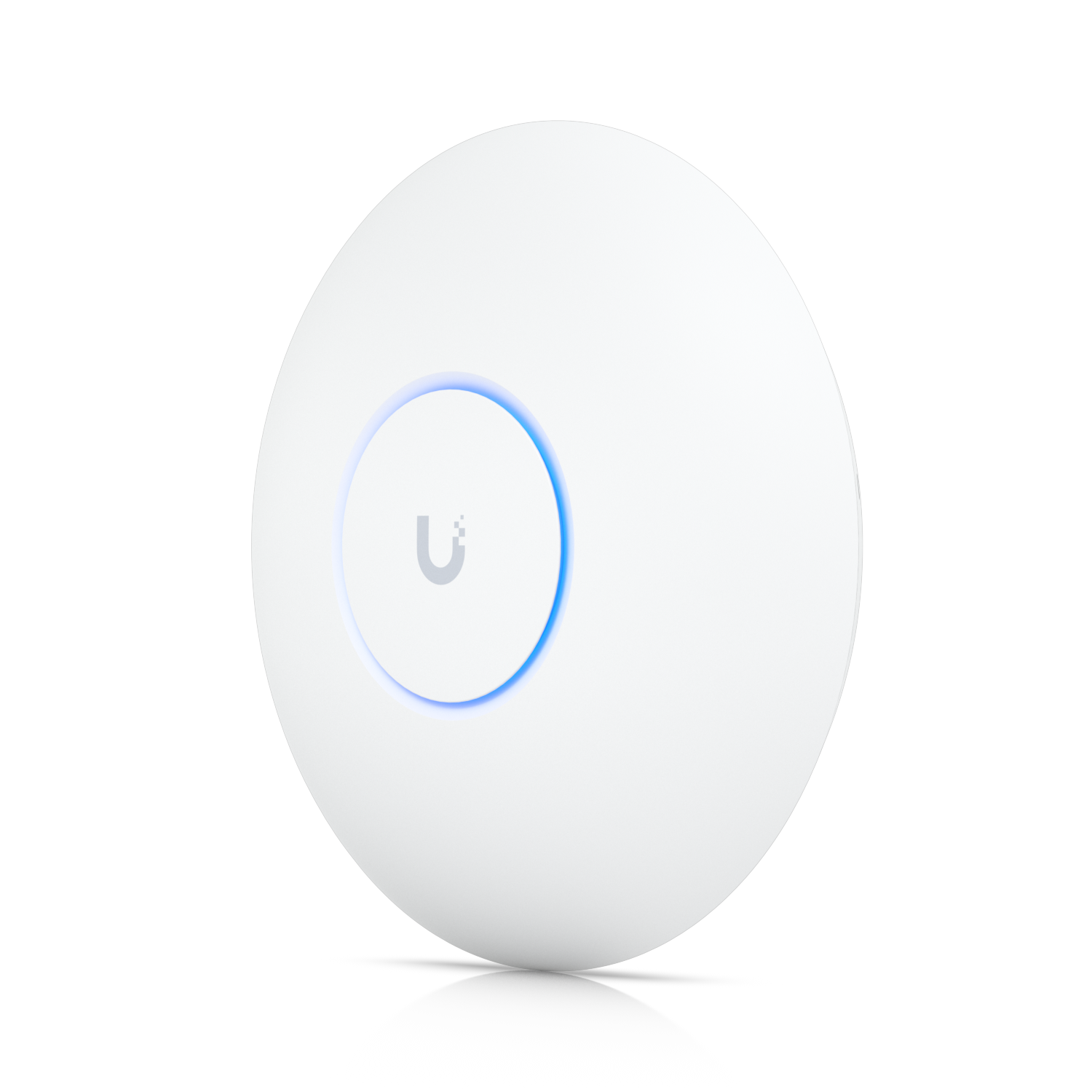

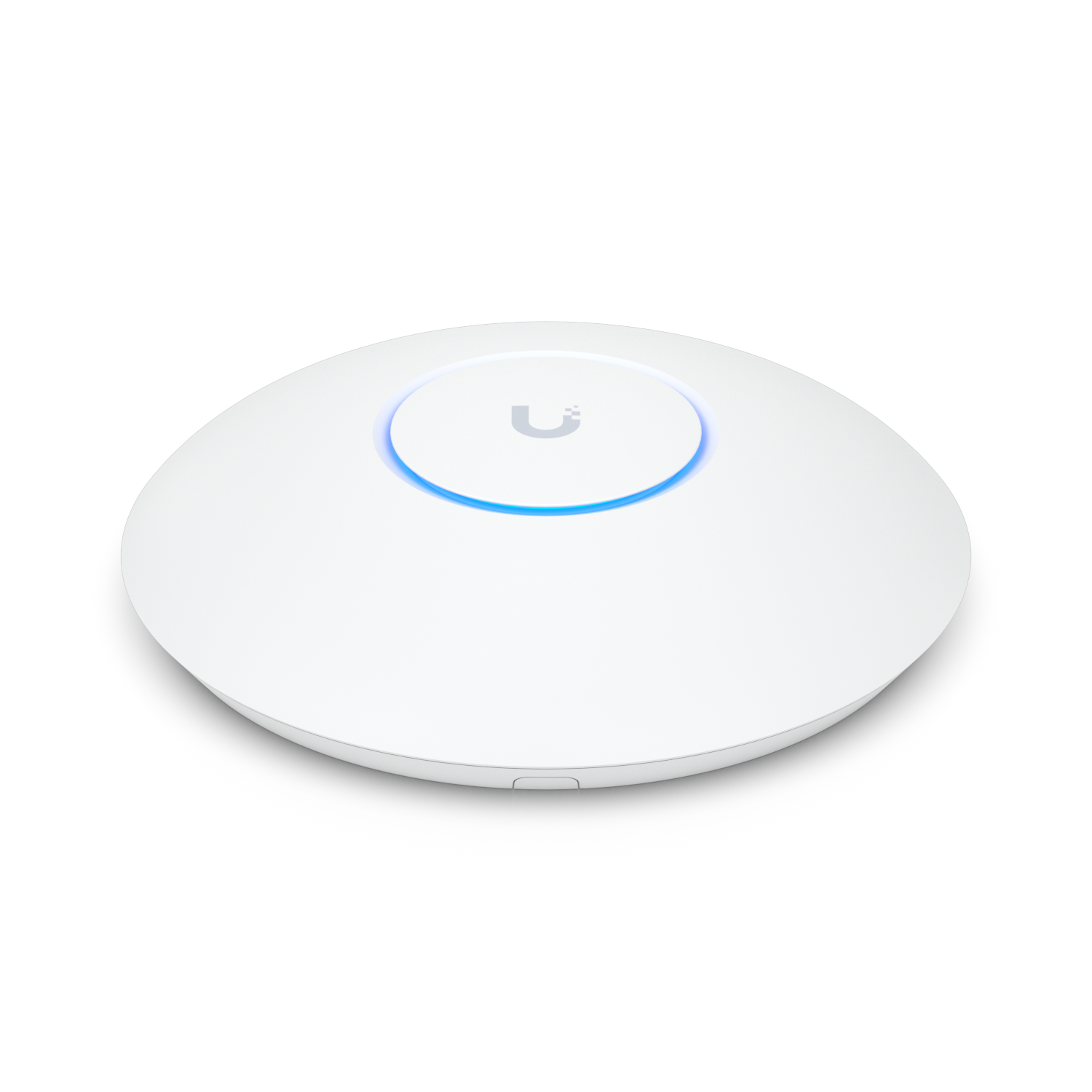

The Access Point U7 Pro is a ceiling-mounted WiFi 7 access point designed for professional environments. Below are its technical specifications:

Overview:

• Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
• WiFi Standard: WiFi 7
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 2.5 GbE

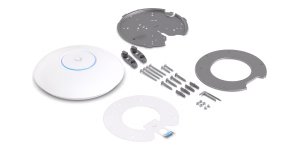

• Mounting: Ceiling, Wall (Pro Mount Included)
• Power Method: PoE+

Performance:

• MIMO:
  • 6 GHz: 2x2 (DL/UL MU-MIMO)
  • 5 GHz: 2x2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2x2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 6 GHz: 5.8 Gbps (BW320)
  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 5.8 dBi
  • 5 GHz: 6 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 6 GHz: 23 dBm
  • 5 GHz: 26 dBm
  • 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per radio

Features:

• Wireless Meshing: Yes
• Band Steering: Yes
• Advanced Radio Management: Yes
• Captive Portal: Custom branding, voucher/payment authentication, guest isolation
• Private Pre-Shared Key (PPSK): Yes
• WiFi Schedules: Yes
• RADIUS over TLS (RadSec): Yes

Hardware:

• Max. Power Consumption: 21W
• Supported Voltage Range: 44–57V DC

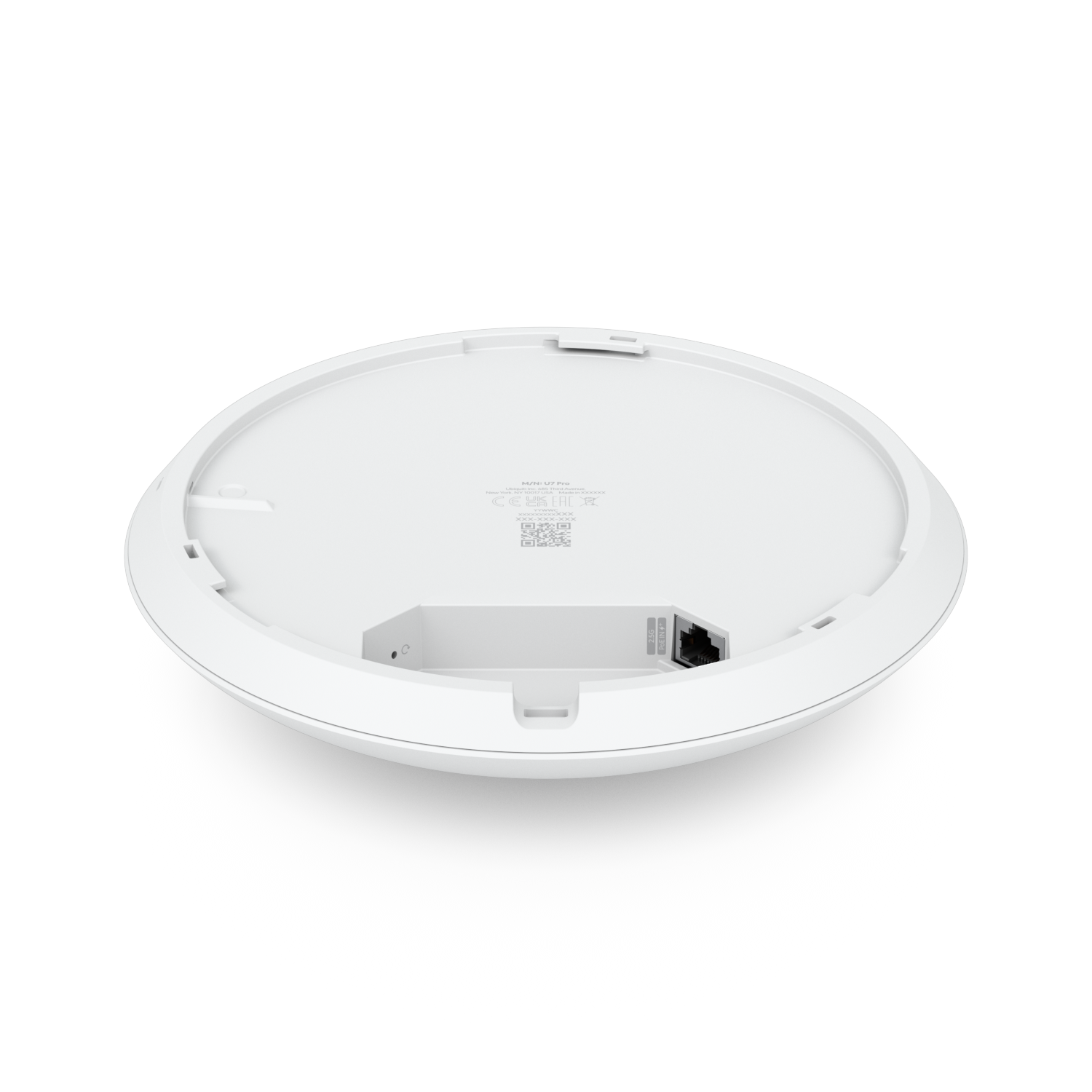

• Networking Interface: (1) 1/2.5 GbE RJ45 port
• Weight: 680 g (1.5 lb)
• Enclosure Material: Polycarbonate, metal
• Certifications: CE, FCC, IC, Anatel
• Operating Temperature: -30 to 40°C (-22 to 104°F)
• Operating Humidity: 5 to 95% noncondensing

Software:

• Application Requirements: UniFi Network version 8.0.28 and later

This AP is ideal for demanding, large-scale environments requiring reliable and interference-free WiFi 7 connectivity.
