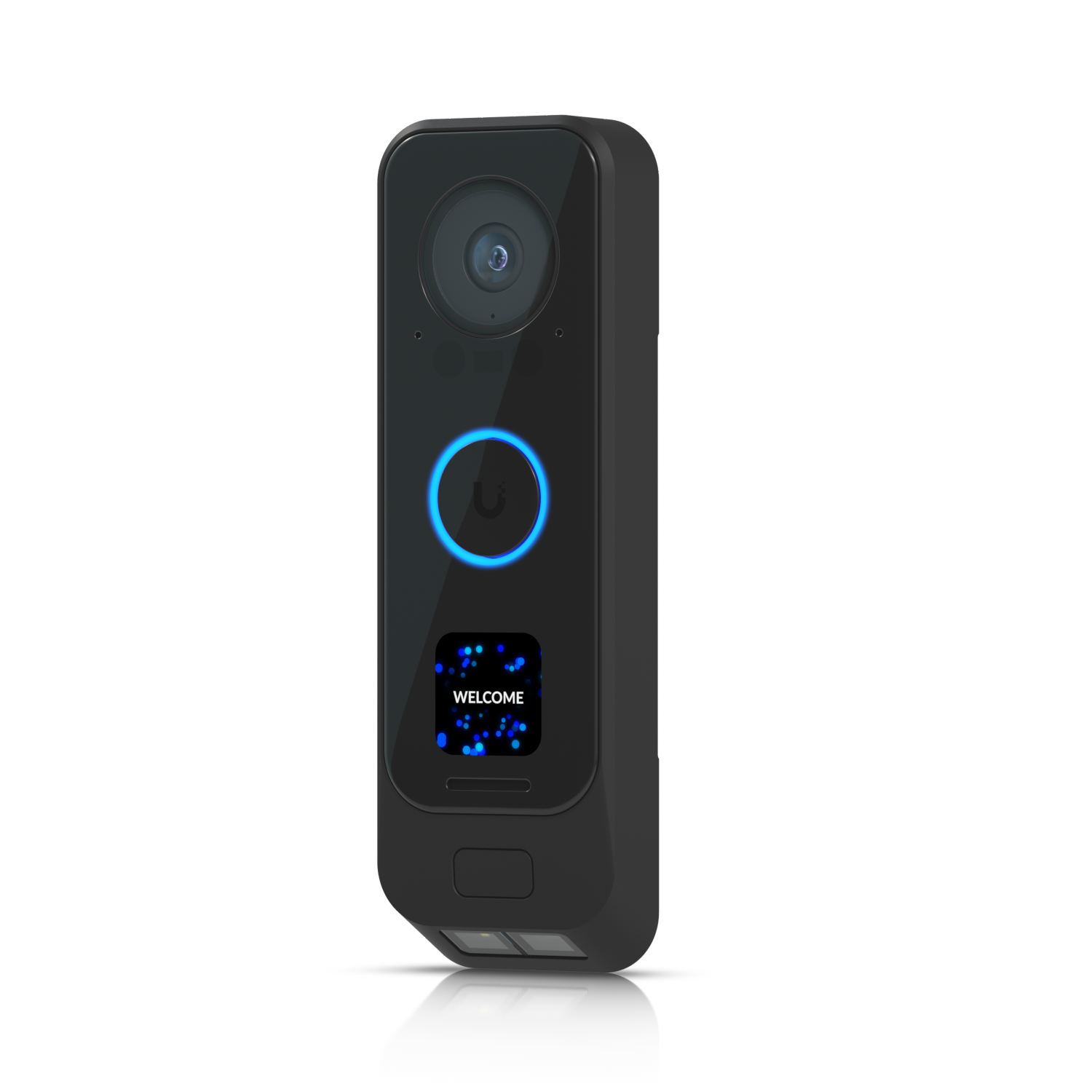

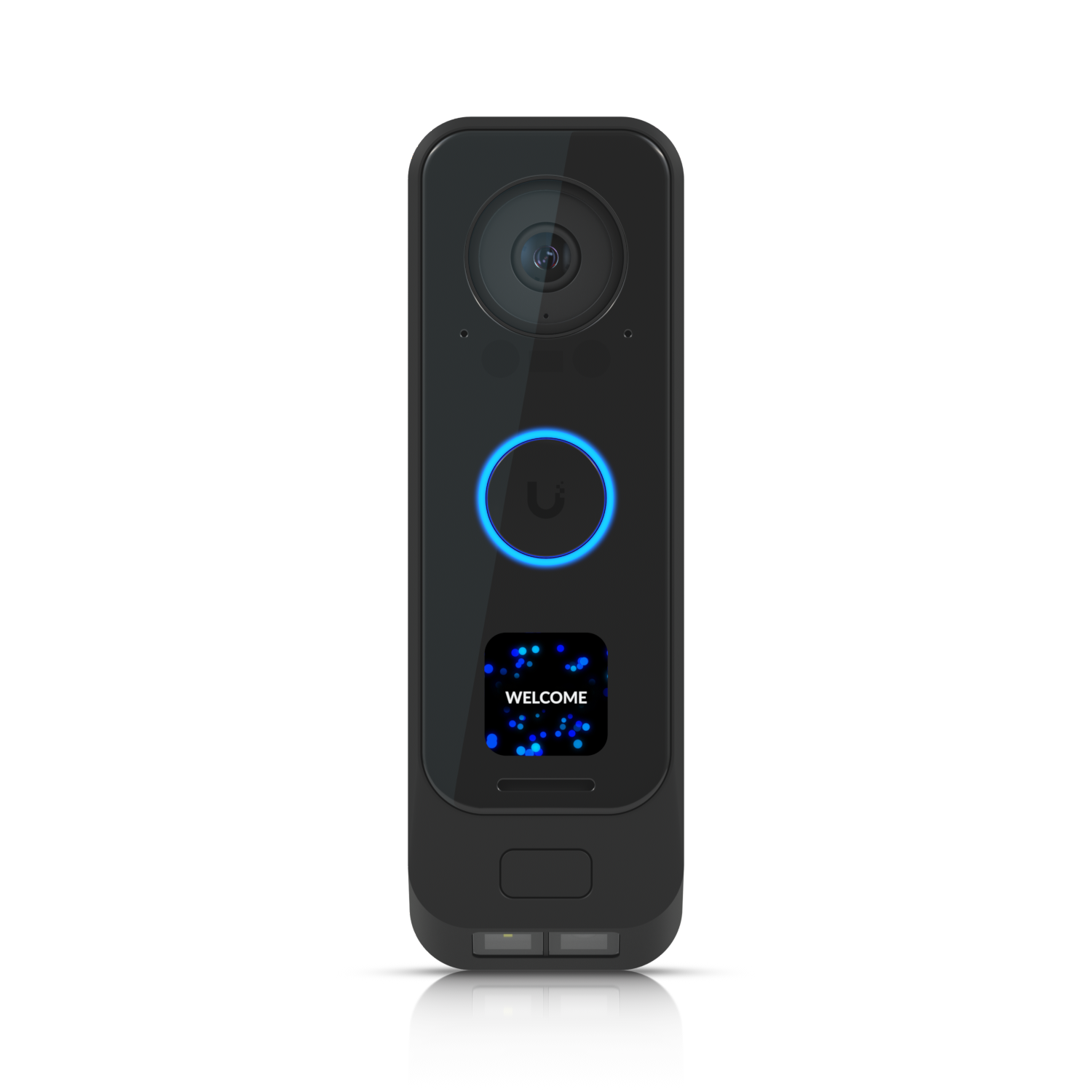

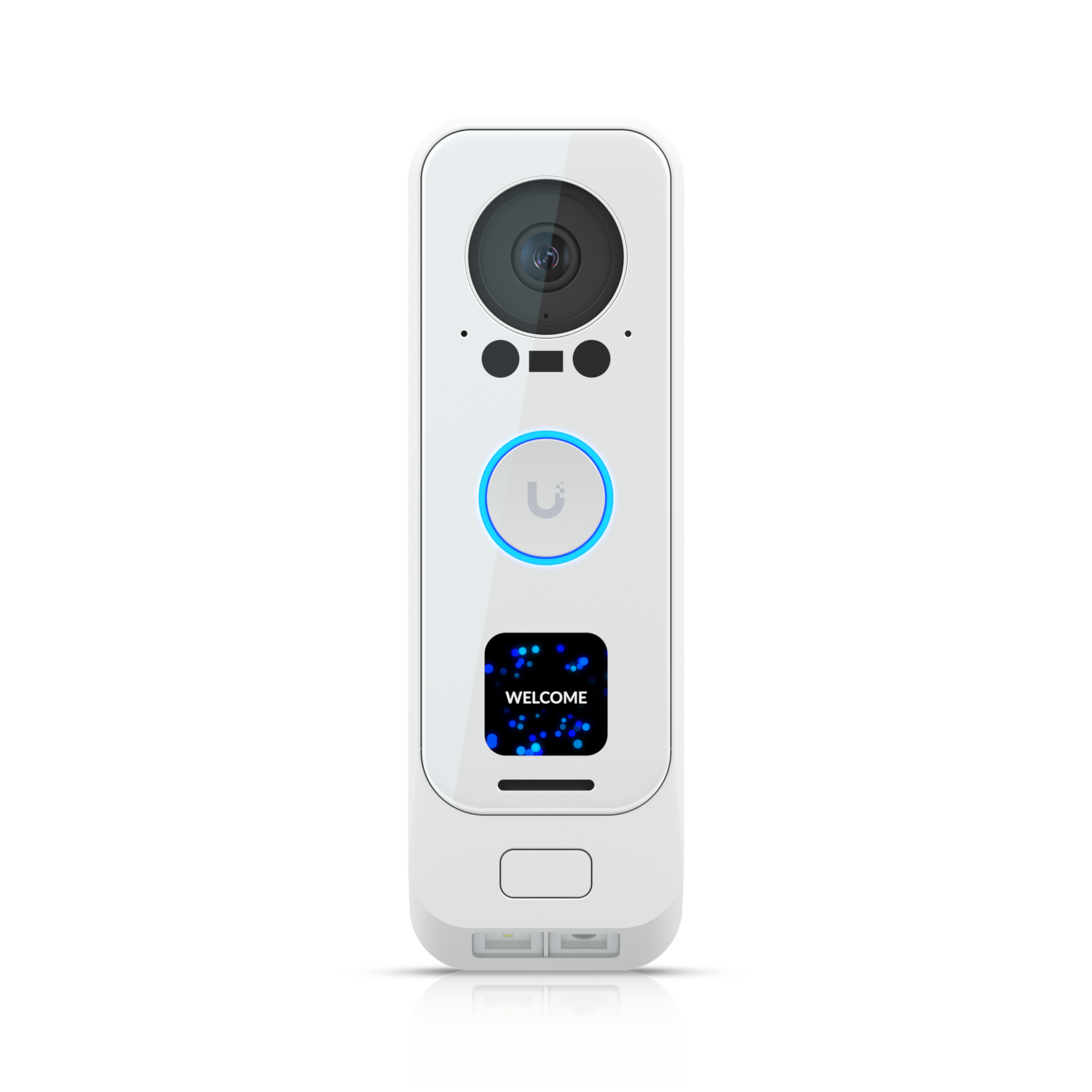

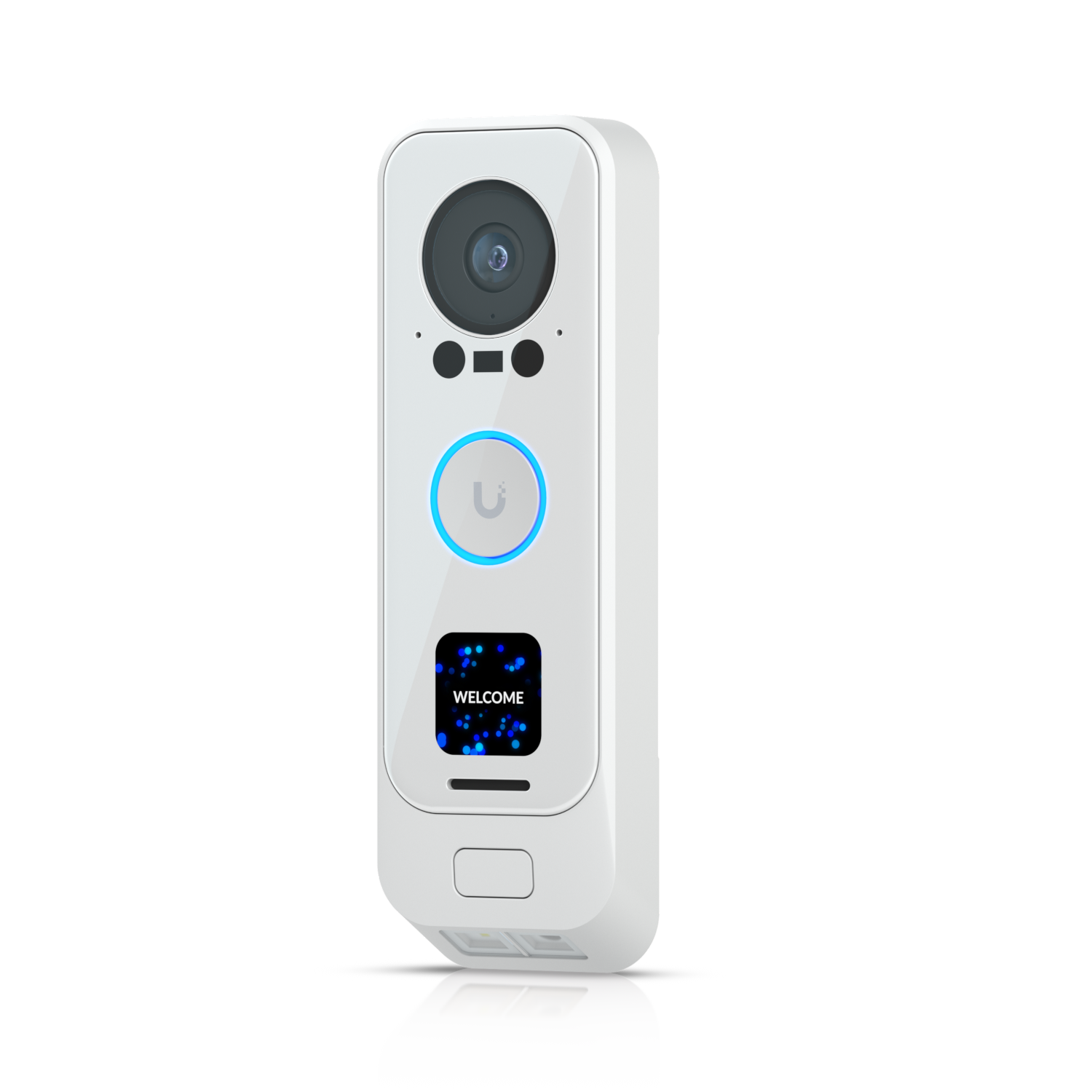

G4 Doorbell Pro PoE Kit

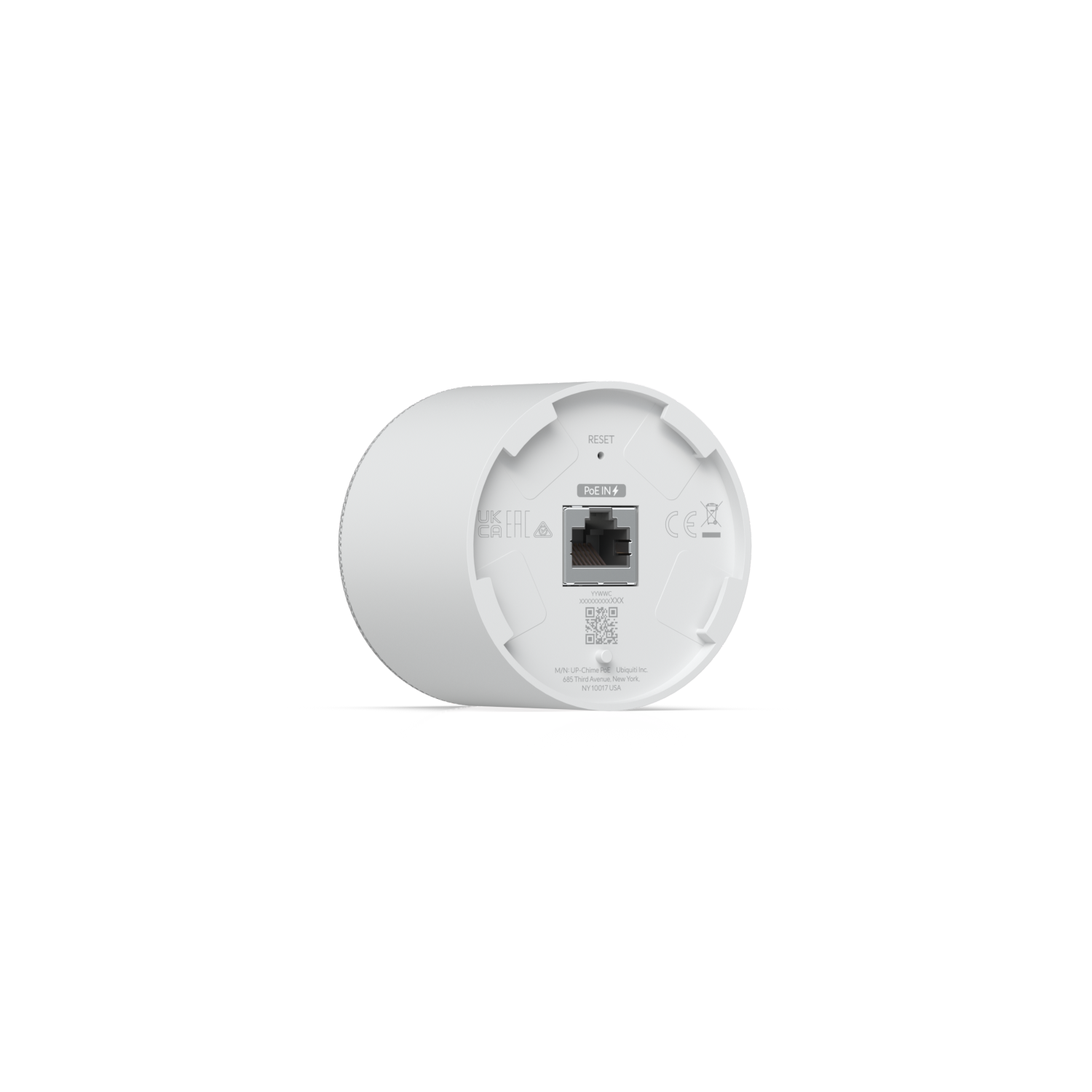

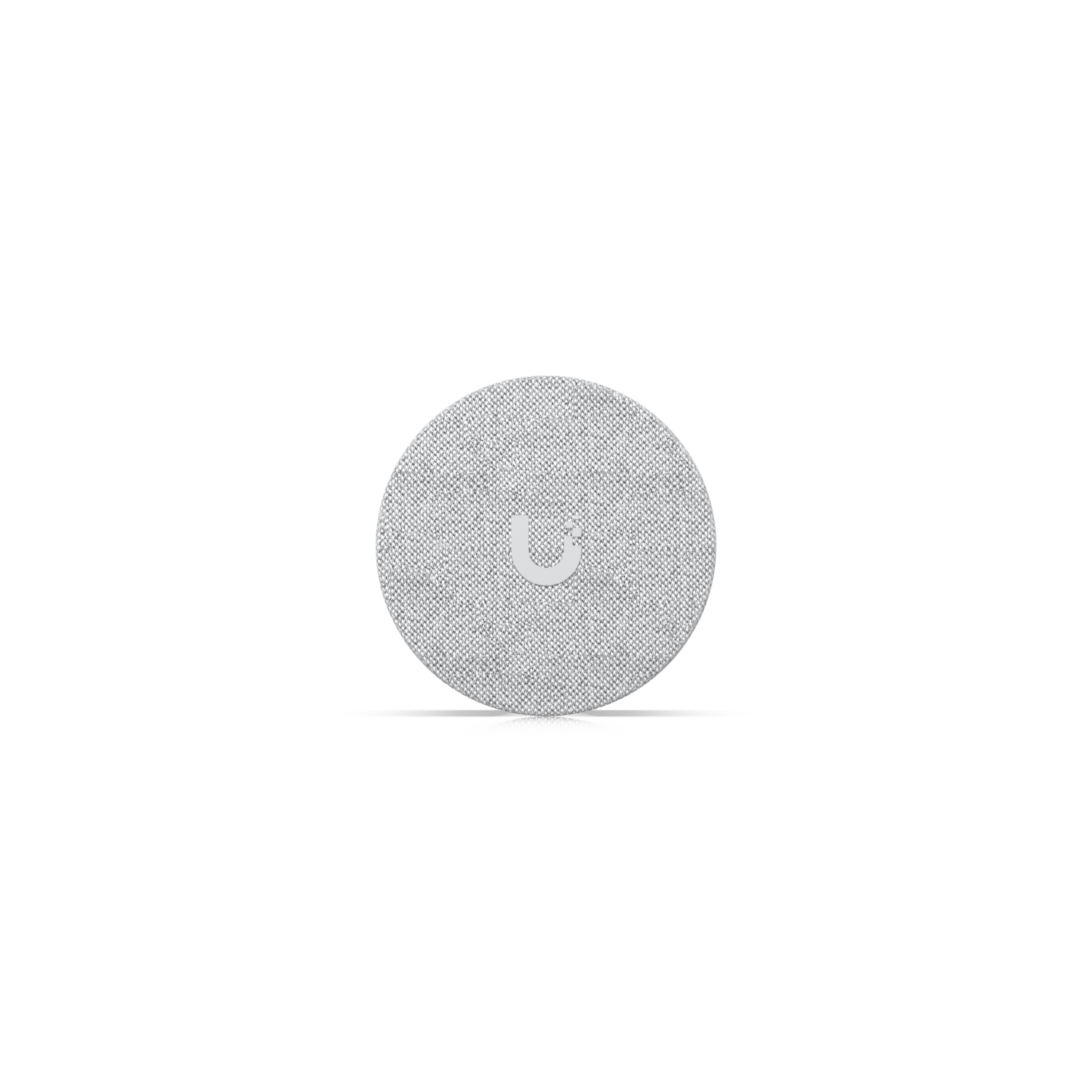

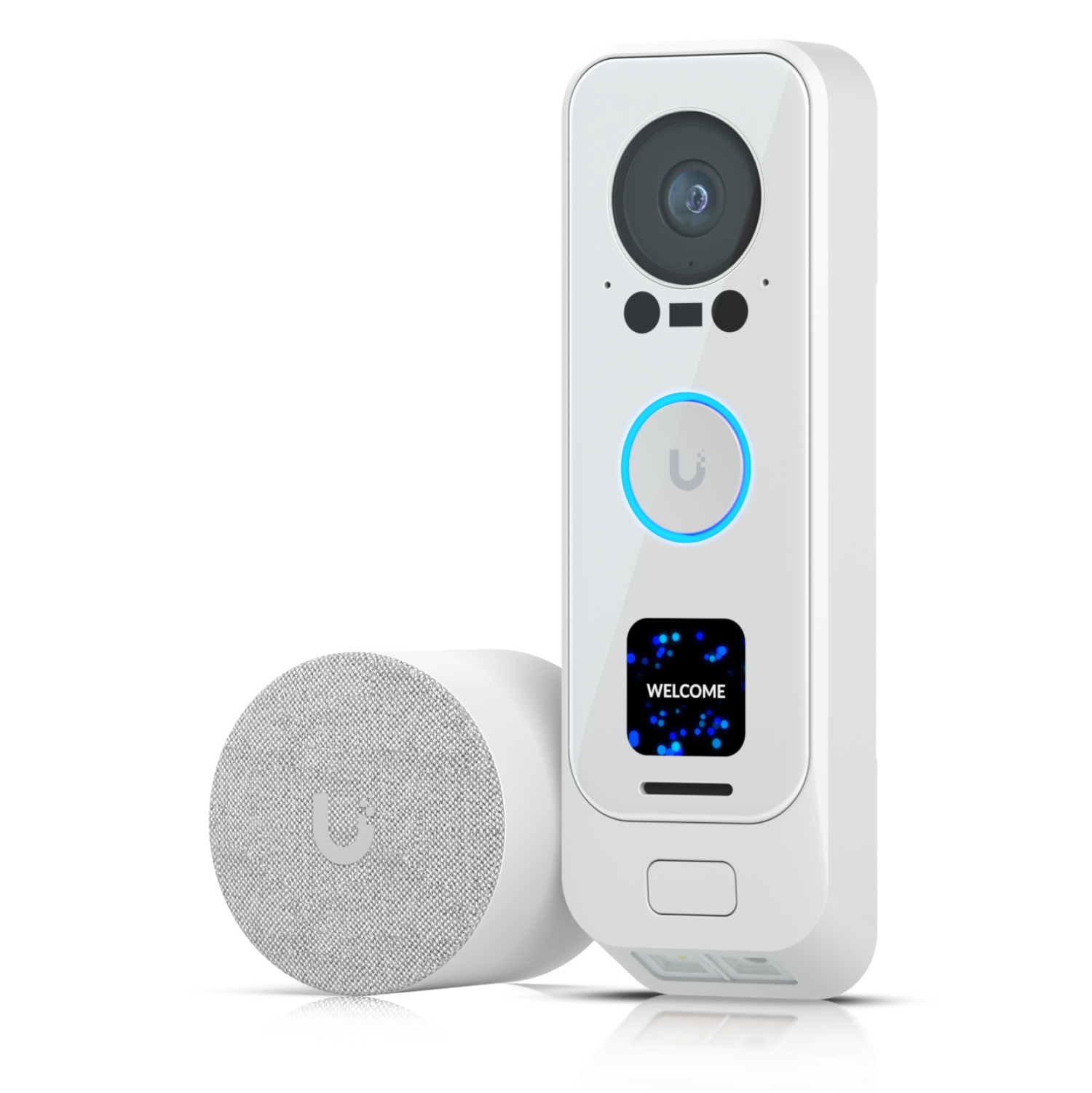

The Ubiquiti UniFi G4 Doorbell Pro PoE Kit is a premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation. Below are its technical specifications:

Overview:

• Dimensions: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
• IR Night Vision: 6 m (20 ft)
• Smart Detections: People, Vehicles, Animals
• Resolution: FHD
• Field of View:
  • Main Camera: H: 138°, V: 114°, D: 155°

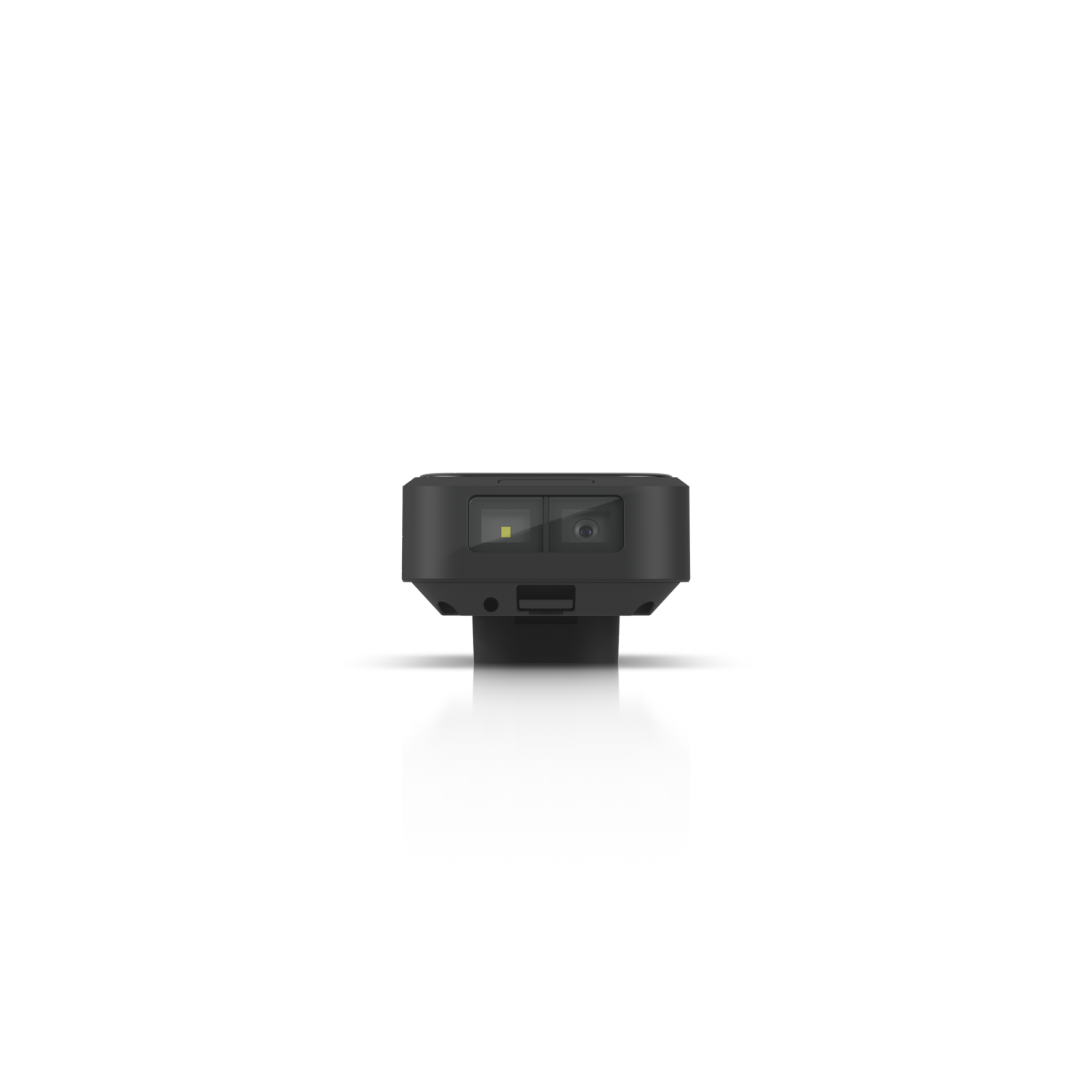

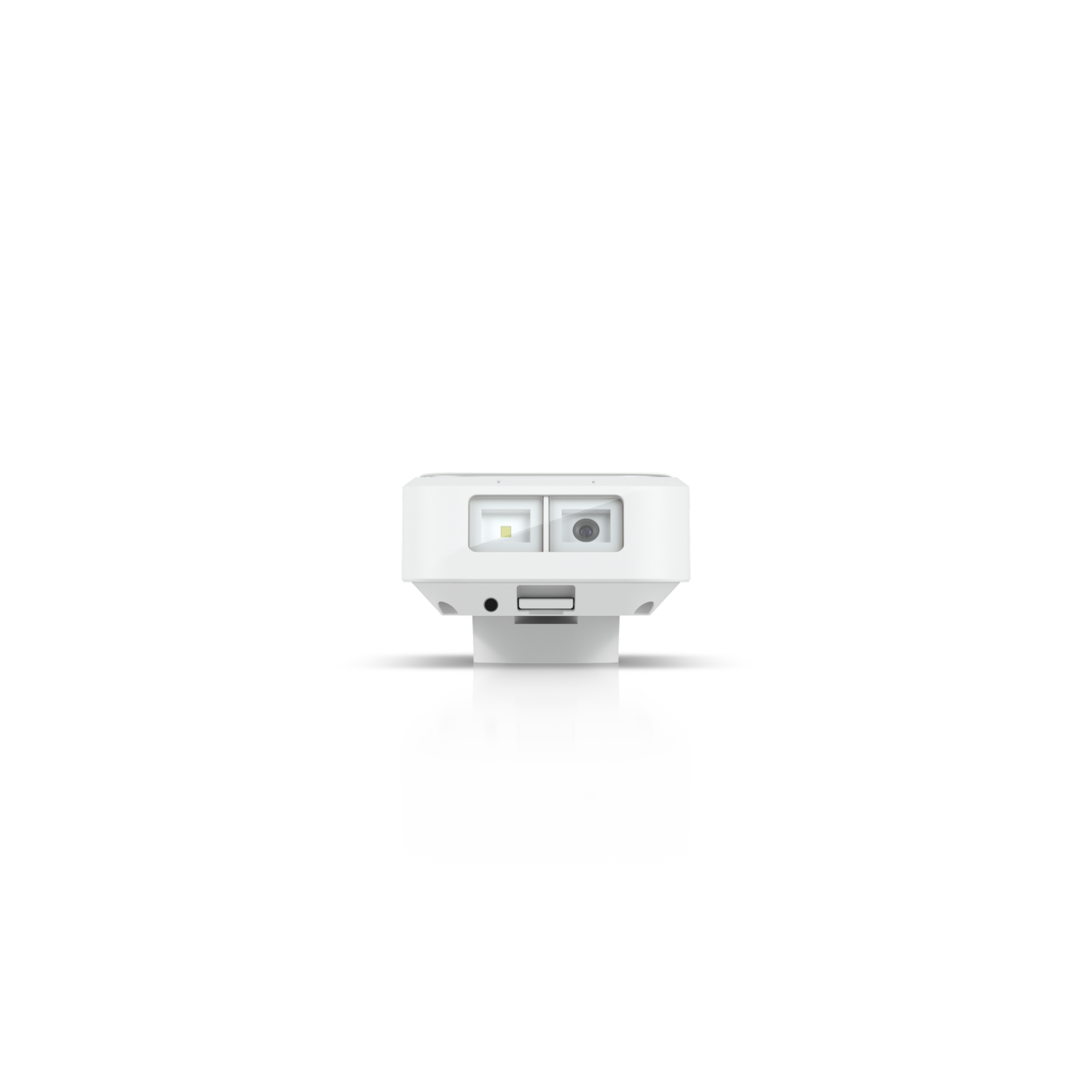

  • Package Camera: H: 97.5°, V: 79.4°, D: 118.2°
• Audio: Two-way audio
• Weatherproofing: IPX4

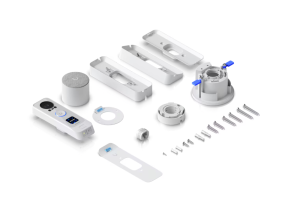

• Mounting: Wall, wedge (Included)

Performance:

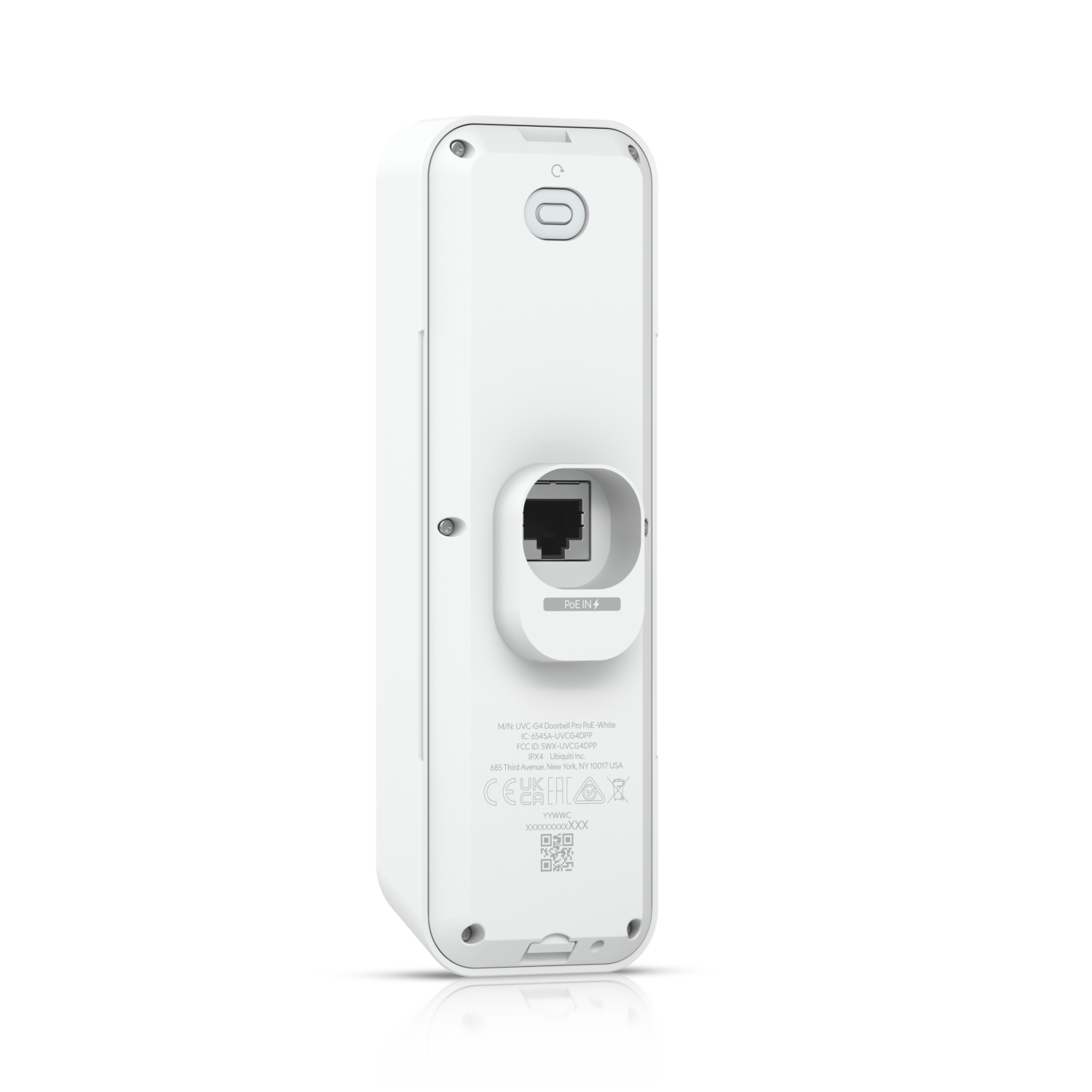

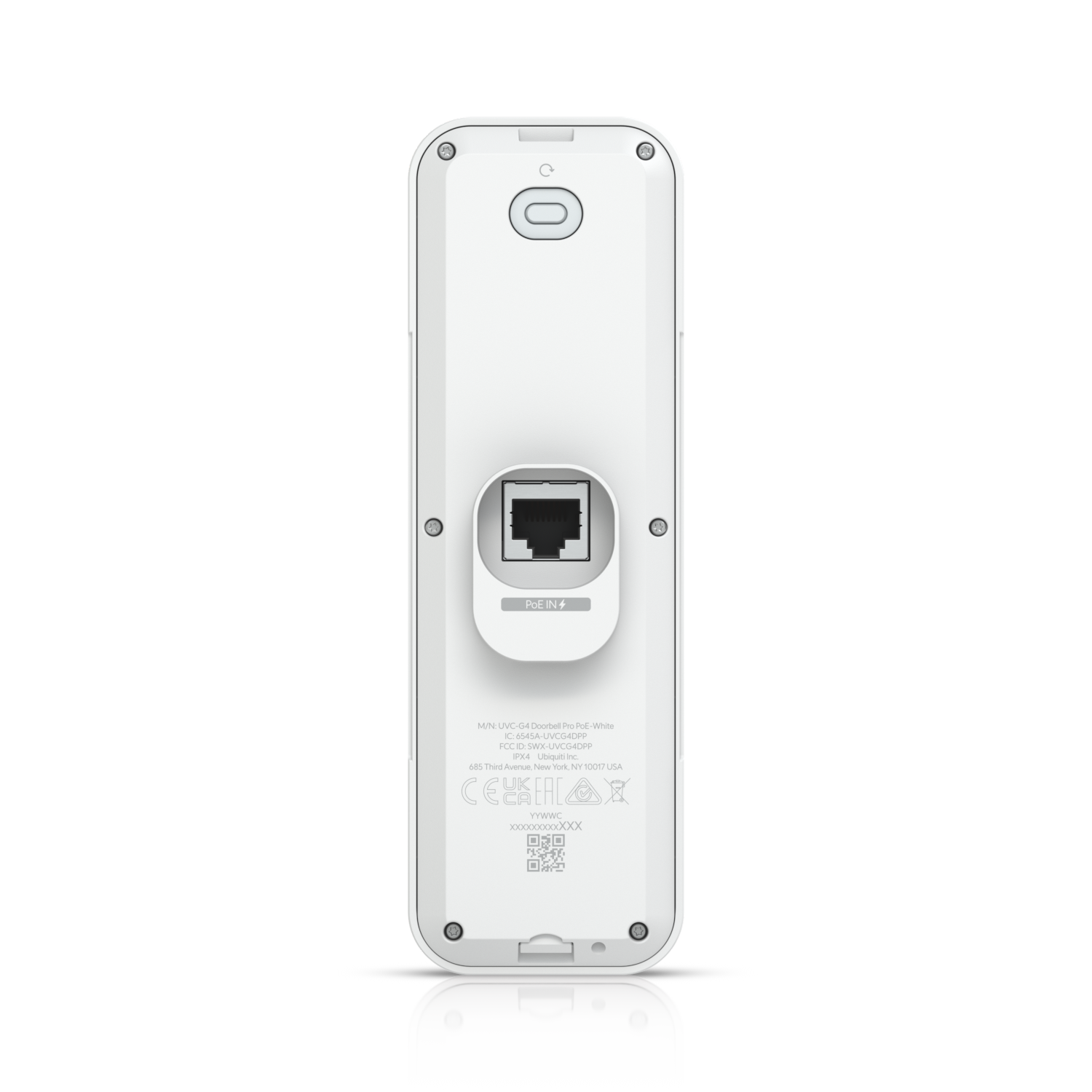

• Networking Interface: GbE RJ45 port
• Video:
  • Max. Frame Rate: 30 FPS
  • Resolution:
    • Main Camera: 2MP 1600 x 1200 (4:3)
    • Package Camera: 2MP 1600 x 1200 (4:3)
• Optics:
  • Sensor:
    • Main Camera: 5MP CMOS
    • Package Camera: 8MP CMOS
  • Lens: Fixed focal length
  • Night Mode: Built-in IR LED illumination and IR cut filter

Hardware:

• Max. Power Consumption: 7W
• Power Method: PoE
• Weight:
  • Device: 264 g (9.3 oz)
  • Wall mount: 56 g (2 oz)
  • Wedge: 33 g (1.2 oz)
  • On-wall mount: 53 g (1.9 oz)
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material:
  • Flat wall mount: Aluminum alloy
  • 20° wedge mount: Polycarbonate
• Button: (1) Ring button, (1) Factory-reset
• Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
• Ambient Operating Humidity: 0 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, SRRC

This doorbell is designed for enhanced security with features like AI event detection, two-way audio, and a programmable display.
