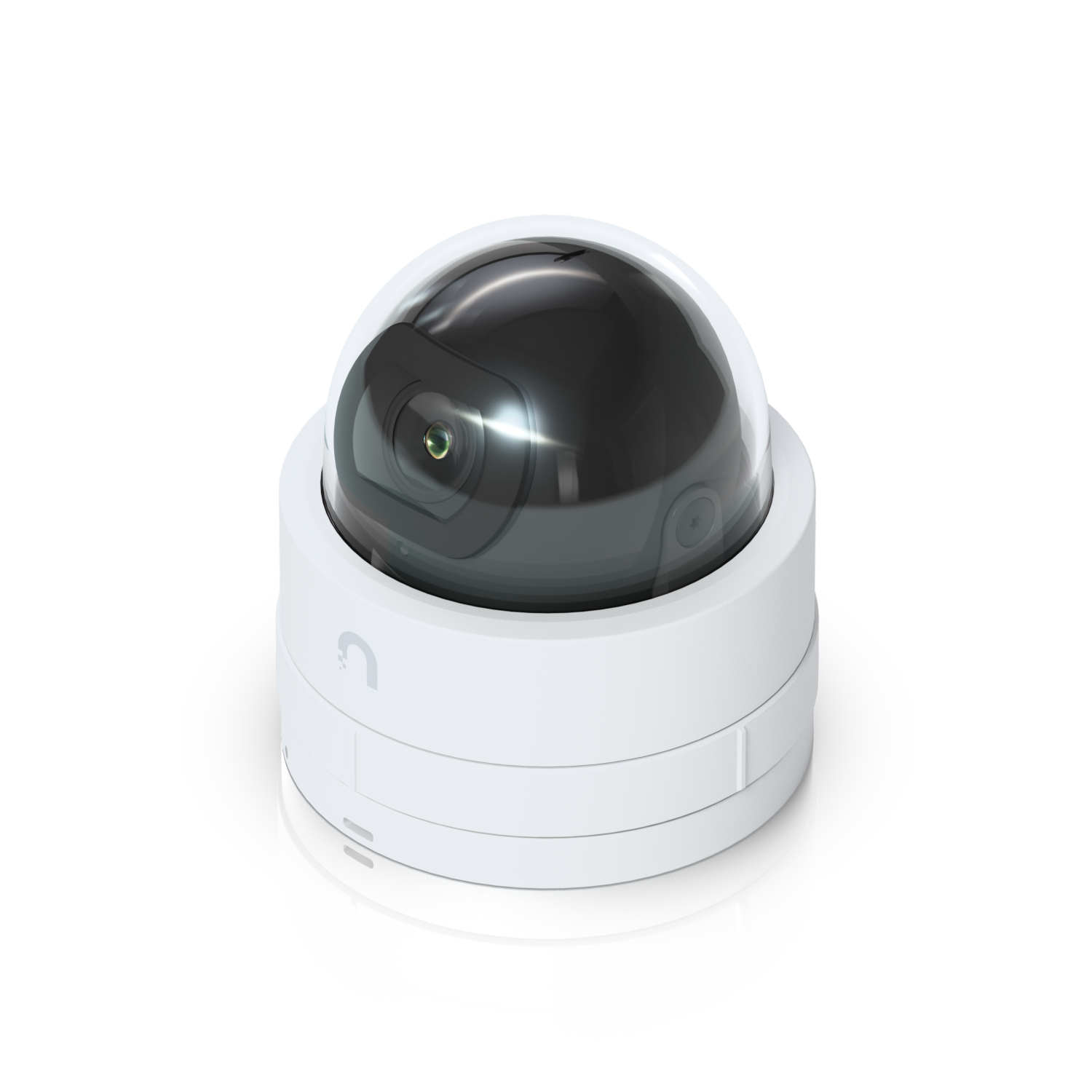

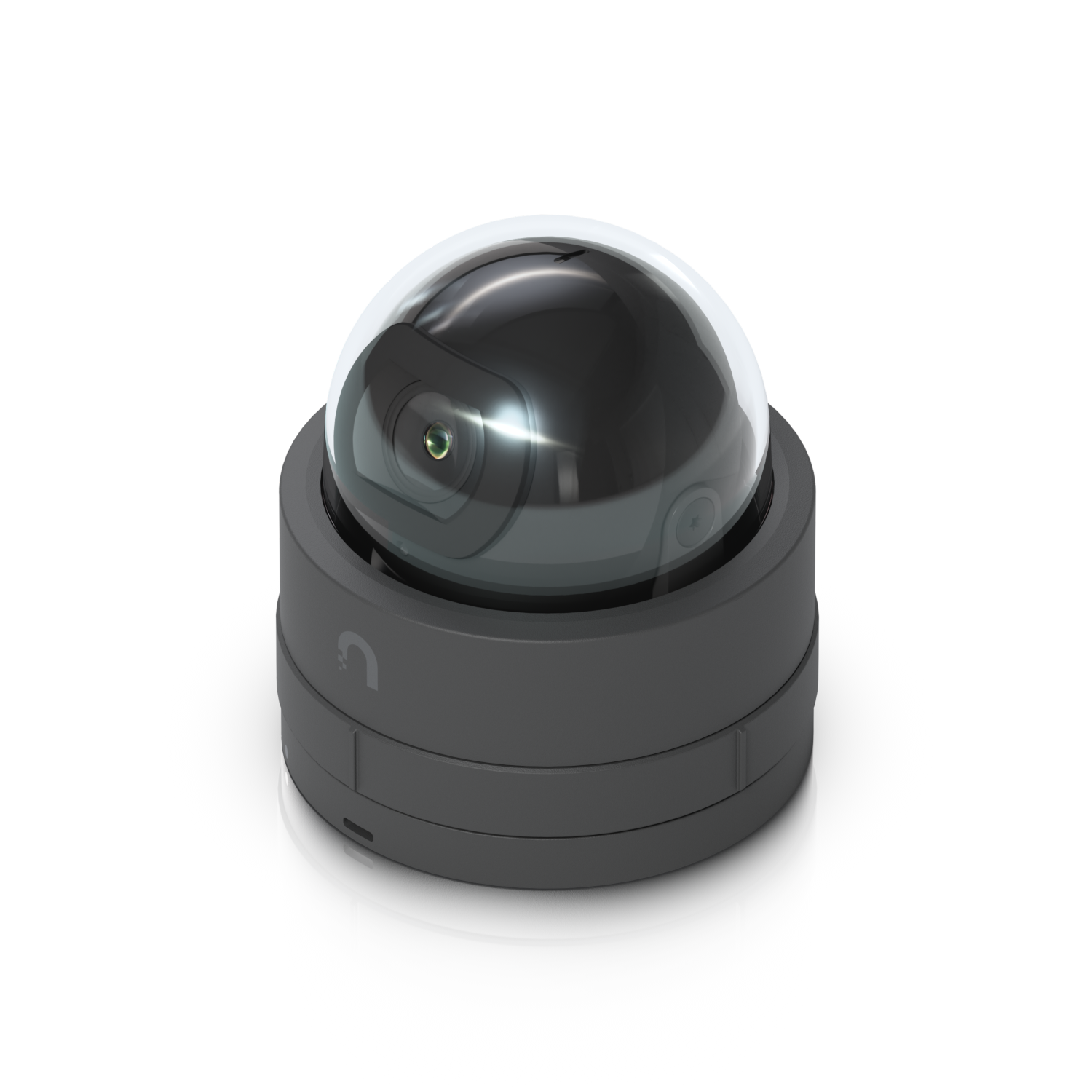

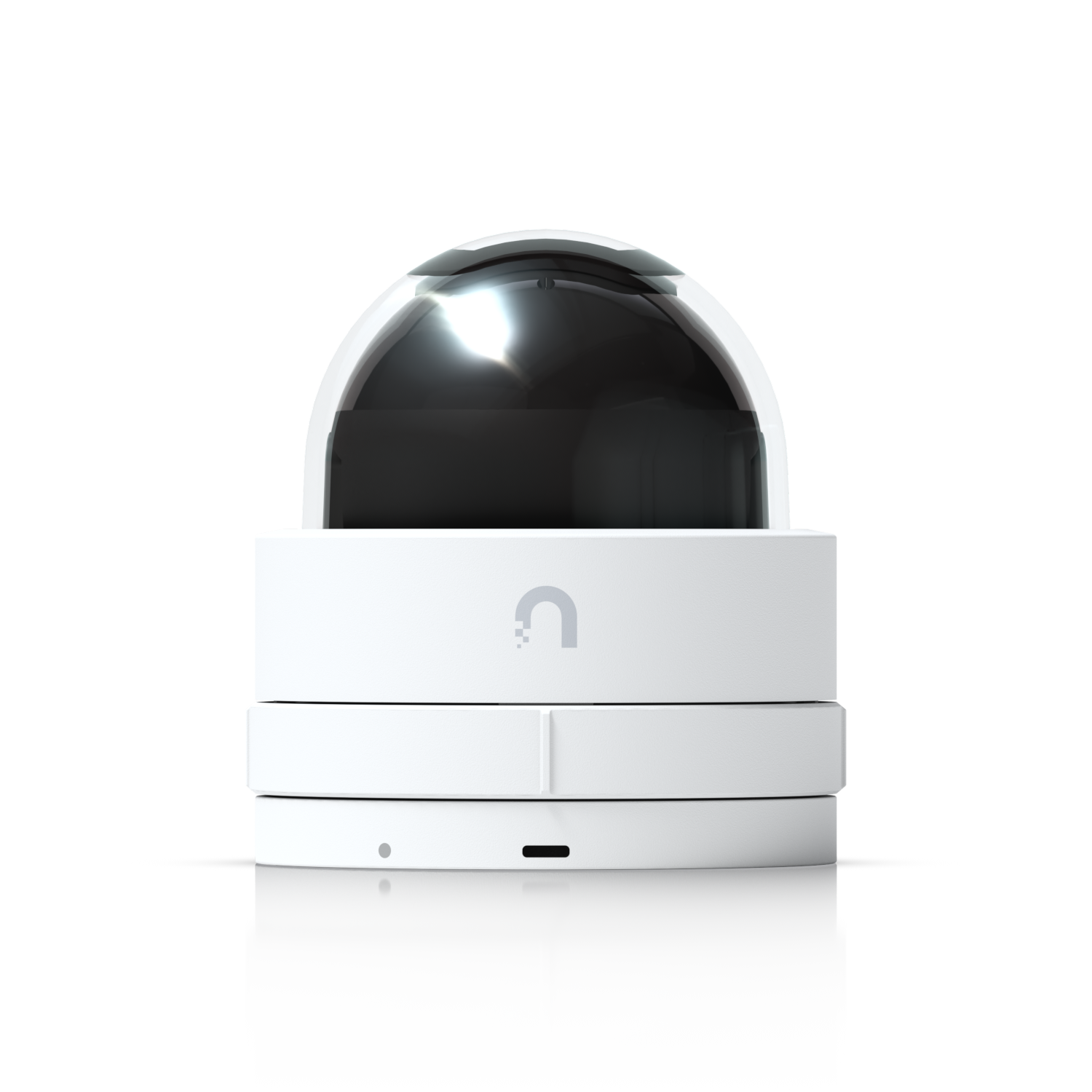

G5 DOME ULTRA

The Camera G5 Dome Ultra (UVC-G5-Dome-Ultra) is an ultra-compact, tamper-resistant 2K HD PoE camera designed for low-profile indoor security. Below are its technical specifications:

Overview:

• Dimensions: Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
• IR Night Vision: 20 m (65 ft)
• Smart Detections: People, Vehicles, Animals
• Resolution: 2K (4MP)
• Field of View: H: 102.4°, V: 54.9°, D: 120.6°
• Tamper Resistance: IK06

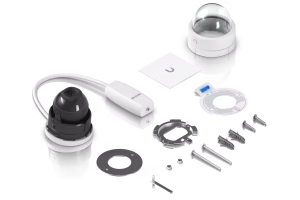

• Mounting: Surface mount (Included); Junction box, Ultra Flush mount (Optional)

Performance:

• Networking Interface: 10/100 MbE RJ45 port
• Video:
  • Max. Frame Rate: 30 FPS
  • Resolution: 4MP (2688 x 1512, 16:9)
  • Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
• Optics:
  • Sensor: 1/2.4" CMOS
  • Lens: Fixed focal length
  • Night Mode: Built-in IR LED illumination and IR cut filter

Hardware:

• Max. Power Consumption: 4.2W
• Power Method: PoE
• Supported Voltage Range: 37–57V DC
• Weight: 175 g (6.2 oz)
• Enclosure Material: Aluminum alloy, polycarbonate
• Mount Material: Stainless steel
• Button: Factory-reset
• Ambient Operating Temperature: -20 to 40°C (-4 to 104°F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC
