UTR

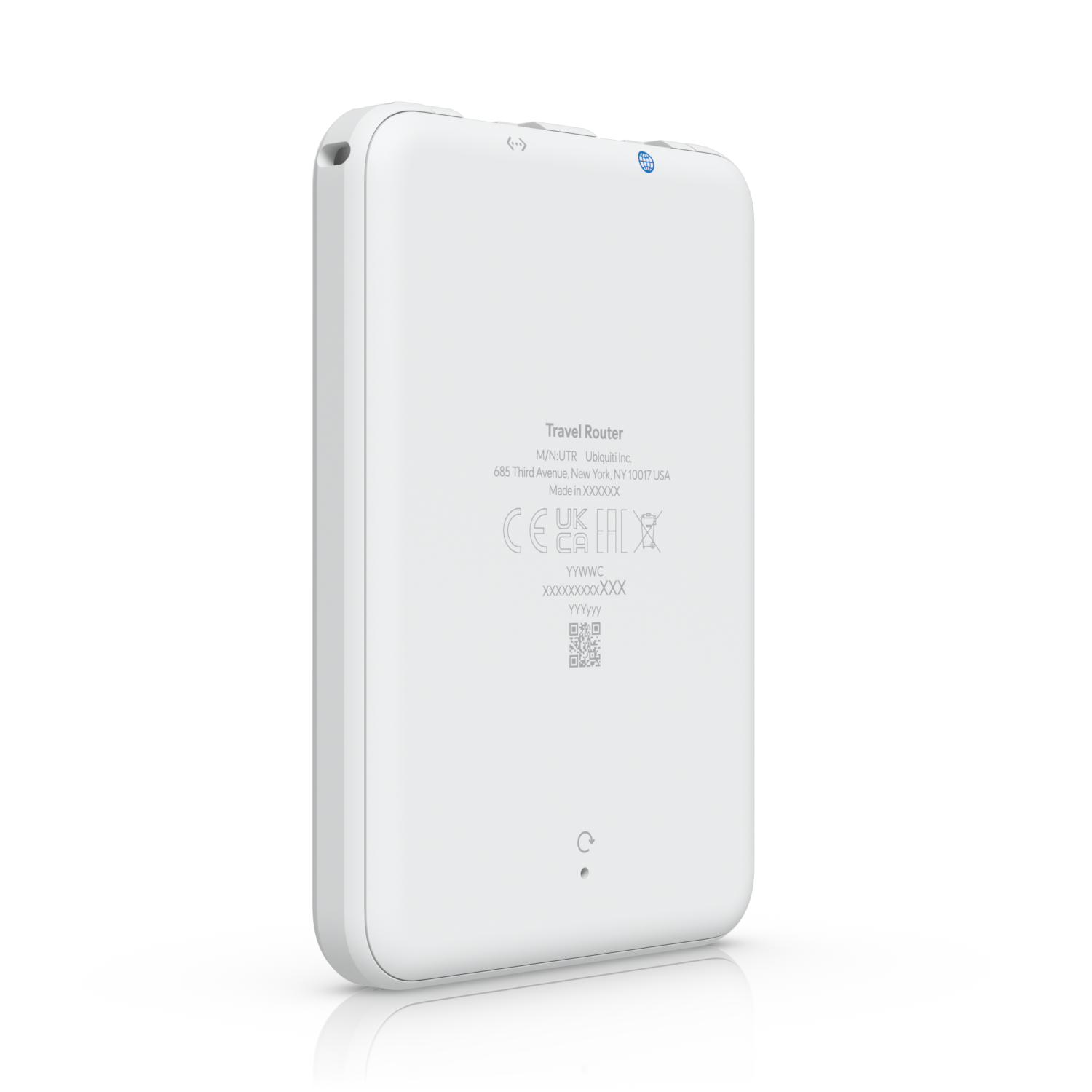

The Ubiquiti UniFi Travel Router  is an ultra-slim travel router that instantly extends your UniFi Network wherever you are, bringing secure, familiar connectivity to remote locations. Below are its technical specifications:

Overview:

• Dimensions: 95.95 x 65 x 12.5 mm (3.8 x 2.6 x 0.5")
• Uplink: (2) GbE RJ45 ports, WiFi
• WiFi Standard: WiFi 5

Mechanical:

• Weight: 89 g (3.1 oz)
• Enclosure Material: Polycarbonate

Features:

• WAN: WiFi, Ethernet
• VPN Client: Open VPN, WireGuard
• Port Forwarding: Yes
• Firewall: Yes

Networking:

• Supported Data Rates:
  • 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps
  • 802.11n: 6.5 Mbps to 300 Mbps
  • 802.11g: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps

Hardware:

• Management: Ethernet, Bluetooth
• Antennas: (2) Embedded WiFi antennas
• Max. TX Power:
  • 2.4G: 13 dBm
  • 5G: 13 dBm
• WiFi MIMO: 2 x 2
• Max. Power Consumption: 5W
• Power Method: USB-C
• Power Supply: USB-C, 5V/2A (Adapter not included)
• Display: 1.14" status display
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC
• Ambient Operating Temperature: -10 to 40°C (-40 to 104°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
