UPS Tower

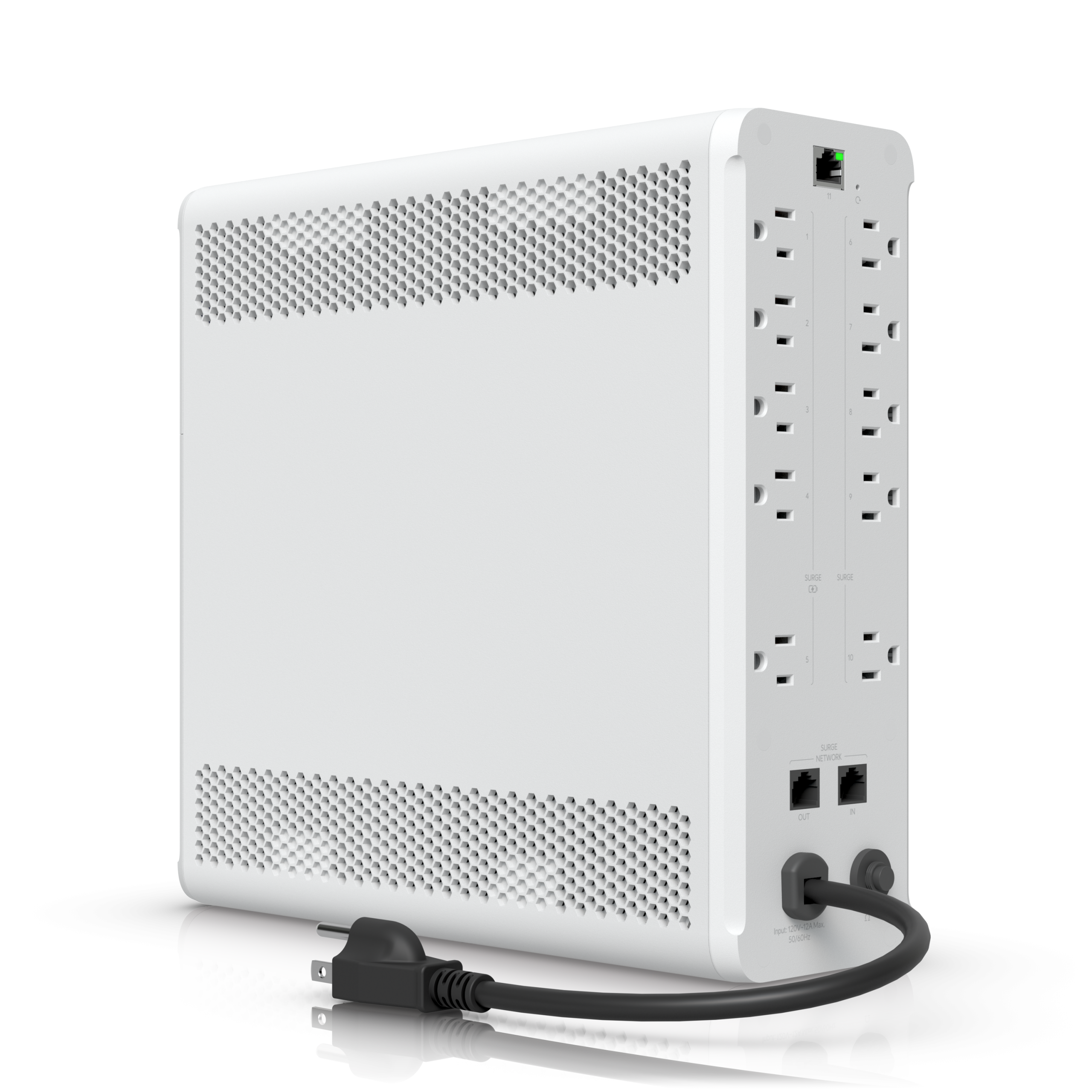

The Ubiquiti UniFi UPS Tower is a UniFi managed 1kVA uninterruptible power supply with 10 outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices. Below are its technical specifications:

Mechanical:

• Dimensions: 288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
• Weight: 8.17 kg (18 lb)
• Enclosure Material: Polycarbonate and acrylonitrile butadiene styrene blend
• Form Factor: Desktop
• Weatherproofing: IP20

Hardware:

• Management: Ethernet
• Networking Interface:

  • (1) 100/10 MbE port for network connection
  • (2) GbE ports for surge in/out
• Power:
  • (1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord
  • (5) Battery backup/surge protection: NEMA 5‑15R
  • (5) Surge protection: NEMA 5‑15R
• Capacity: 1,000VA/600W
• Type: Line interactive
• Input Voltage Range: 89—145V AC
• Power Method: (1) TN system, 120V AC, 12A Max., 50/60 Hz
• Nominal Input Voltage: 120V AC
• Output Voltage: 120V AC
• Frequency Range:
  • AC mode: 50/60 Hz ±5 Hz (Auto sensing)
  • Battery mode: 60 Hz ±1 Hz
• AC Voltage Regulation: ±10% (Battery mode)
• Transfer Time: 6 ms typical; 10 ms max. (Battery mode)
• Wave Form: Simulated sine wave (Battery mode)
• Battery Type: (1) Lead Acid 12V, 9Ah
• Runtime:
  • Full load: 2 min
  • Half load: 7 min
• Battery Charging Time: 6-8 hours recovery to 90% capacity
• Overload at On-Line Mode:

  • 110% 5 min go to fault
  • 120% go to fault immediately
• Overload at Battery Mode:
  • 110% shutdown in 5 sec
  • 120% shutdown immediately
• Short Circuit Protection at On-Line Mode: Breaker, 250V AC, 15A
• Output Short-Circuit Current:
  • Ipeak 334.8A
  • Irms 68.2A
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 0 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: FCC, IC, UL 1778, CSA C22.2 No. 107.3
