UPS 2U

15.500,00 ден 18.290,00 ден with DDV one time, and
4.650,00 ден / year

UniFi managed 1.5kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. It supports Graceful Shutdown for UNVR and UNAS and includes NUT compatibility for third-party devices.

_{Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.}

The Ubiquiti UniFi UPS 2U (UPS-2U) is a managed 1.5 kVA rackmount uninterruptible power supply designed to keep your UniFi and third-party network devices running during power interruptions. It provides 1,500 VA / 1,000 W of capacity and features four battery backup outlets plus four surge-protected outlets to safeguard critical systems. With a runtime of up to 8 minutes at half load (500 W) and 2.3 minutes at full load, it allows enough time for a controlled system shutdown or generator startup. The UPS includes an Ethernet port for network-based monitoring and supports Graceful Shutdown for UNVR and UNAS on UniFi OS version 4.4.3 or higher, preventing potential data loss. Its durable galvanized steel 2U rackmount chassis ensures stability and easy integration into enterprise racks, server rooms, or office setups. This UPS combines advanced protection, strong build quality, and reliable performance for uninterrupted network operation.

The Ubiquiti UniFi UPS 2U is a UniFi managed 1.5kVA rackmount uninterruptible power supply with 8 outlets and field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes, UniFi Alarm Manager ready and NUT support for 3rd party devices. Below are its technical specifications:

Mechanical:

Dimensions: 442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4")
Weight: 14 kg (30.9 lb)
Enclosure Material: Galvanized steel
Form Factor: Rack mount (2U)
Weatherproofing: IP20

Hardware:

Management: Ethernet
Networking Interface:
- (1) 100/10 MbE port for network connection
- (2) GbE ports for surge in/out

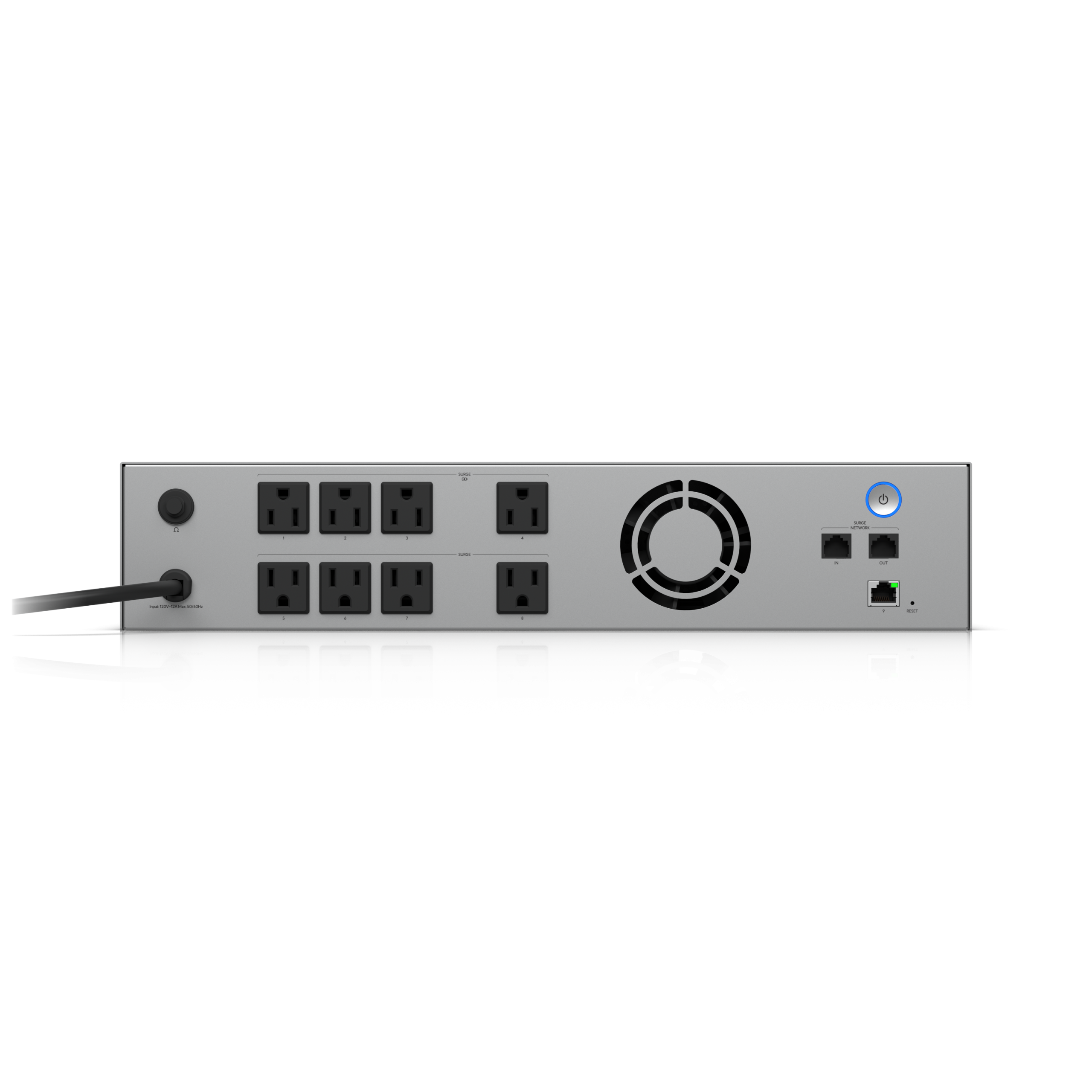

Power:
- (1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord
- (4) Battery backup/surge protection: NEMA 5‑15R
- (4) Surge protection: NEMA 5‑15R
Capacity: 1,440VA/1,000W
Type: Line interactive
Input Voltage Range: 89—145V AC
Power Method: (1) TN system, 120V AC, 12A Max., 50/60 Hz
Nominal Input Voltage: 120V AC
Output Voltage: 120V AC
Frequency Range:
- AC mode: 50/60 Hz ±5 Hz (Auto sensing)
- Battery mode: 60 Hz ±1 Hz
AC Voltage Regulation: ±10% (Battery mode)
Transfer Time: 6 ms typical; 10 ms max. (Battery mode)
Wave Form: Simulated sine wave (Battery mode)
Battery Type: (2) Lead Acid 12V, 9Ah
Runtime:
- Full load: 2.3 min
- Half load: 8 min
Battery Charging Time: 6-8 hours recovery to 90% capacity
Overload at On-Line Mode:
- 110% 5 min go to fault
- 120% go to fault immediately
Overload at Battery Mode:
- 110% 5 min go to fault
- 120% go to fault immediately
Short Circuit Protection at On-Line Mode: Breaker, 250V AC, 15A
Output Short-Circuit Current:
- Ipeak 348.0A
- Irms 115.1A
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 0 to 95% noncondensing
NDAA Compliant: Yes
Certifications: FCC, IC, UL 1778, CSA C22.2 No. 107.3

Installation Guide

Datasheet

CE Doc
