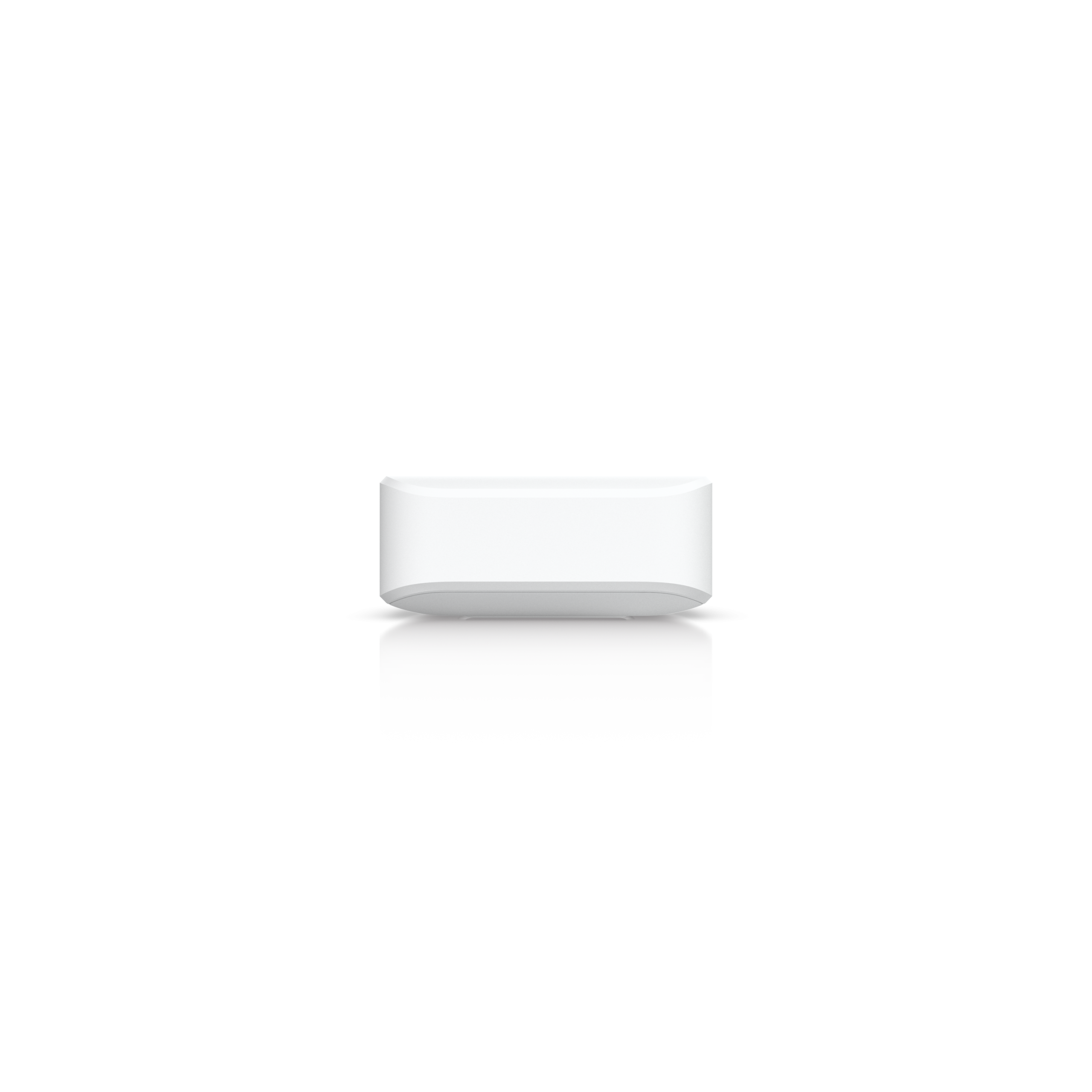

USW ULTRA

5.580,00 ден 6.584,40 ден with DDV one time, and
1.674,00 ден / year

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

The Ubiquiti UniFi USW-ULTRA is a layer 2 managed network switch, featuring 8 Gigabit Ethernet RJ45 ports and supporting a variety of mounting options. The USW-ULTRA features PoE capacity on all 8 of its network ports, with 7 supplying PoE+ and the final port supplying PoE++, offering power delivery to even the most power-hungry devices.

The Switch Ultra is a compact, Layer 2, 8-port GbE PoE switch with versatile mounting options. Below are its technical specifications:

Overview:

Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")
Port Layout:
- (7) GbE PoE+ output ports
- (1) GbE PoE++ input port (1G/100M/10M)
Max. PoE Output: Up to PoE+
Total PoE Availability:
- PoE++ input: 42W
- PoE+ input: 16W
- 60W PoE adapter input: 42W
- 60W AC adapter input: 52W
- 210W AC adapter input: 202W
Form Factor: Compact desktop, wall, magnetic

Performance:

Switching Capacity: 16 Gbps
Total Non-Blocking Throughput: 8 Gbps
Forwarding Rate: 12 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000

Layer 2 Features:

STP & RSTP
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
Port Isolation
Port Mirroring
Jumbo Frames
Loop Protection

Hardware:

PoE Ports:
- (7) PoE+ ports
- (1) PoE++ port
Max. Power Consumption:
- 9W (Excluding PoE Output) with PoE input
- 8W (Excluding PoE Output) with adapter input
- 210W (Including PoE Output) with 210W AC adapter input
Power Method:
- (1) AC/DC adapter (Excluded)
- (1) PoE++
Supported Voltage Range: 50–57V DC/PoE
Ambient Operating Temperature:
- PoE++ input: -30 to 60°C (-22 to 140°F)
- 60W AC adapter input: -20 to 45°C (-4 to 113°F)
- 210W AC adapter input: -20 to 60°C (-4 to 140°F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC, Anatel
NDAA Compliant: Yes
