PROTECT VIEWPORT

The Protect Viewport (UP-Viewport) is an easy-to-use hub for viewing UniFi Protect camera feeds on an HDMI display. Below are its technical specifications:

Overview:

• Dimensions: 157 x 52 x 37 mm (6.2 x 2.1 x 1.5")
• Weight:
  • Without mount: 230 g (8.1 oz)
  • With TV mount: 252 g (8.9 oz)
• Display: HDMI video output up to 4K @ 30 FPS
• Grid View: Supports a 16-stream matrix view

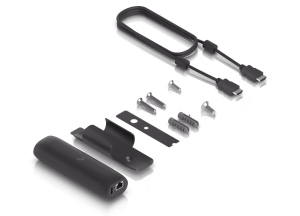

• Mounting: Flexible mounting options
• Power Method: PoE
• UniFi Application Suite: Protect

Hardware:

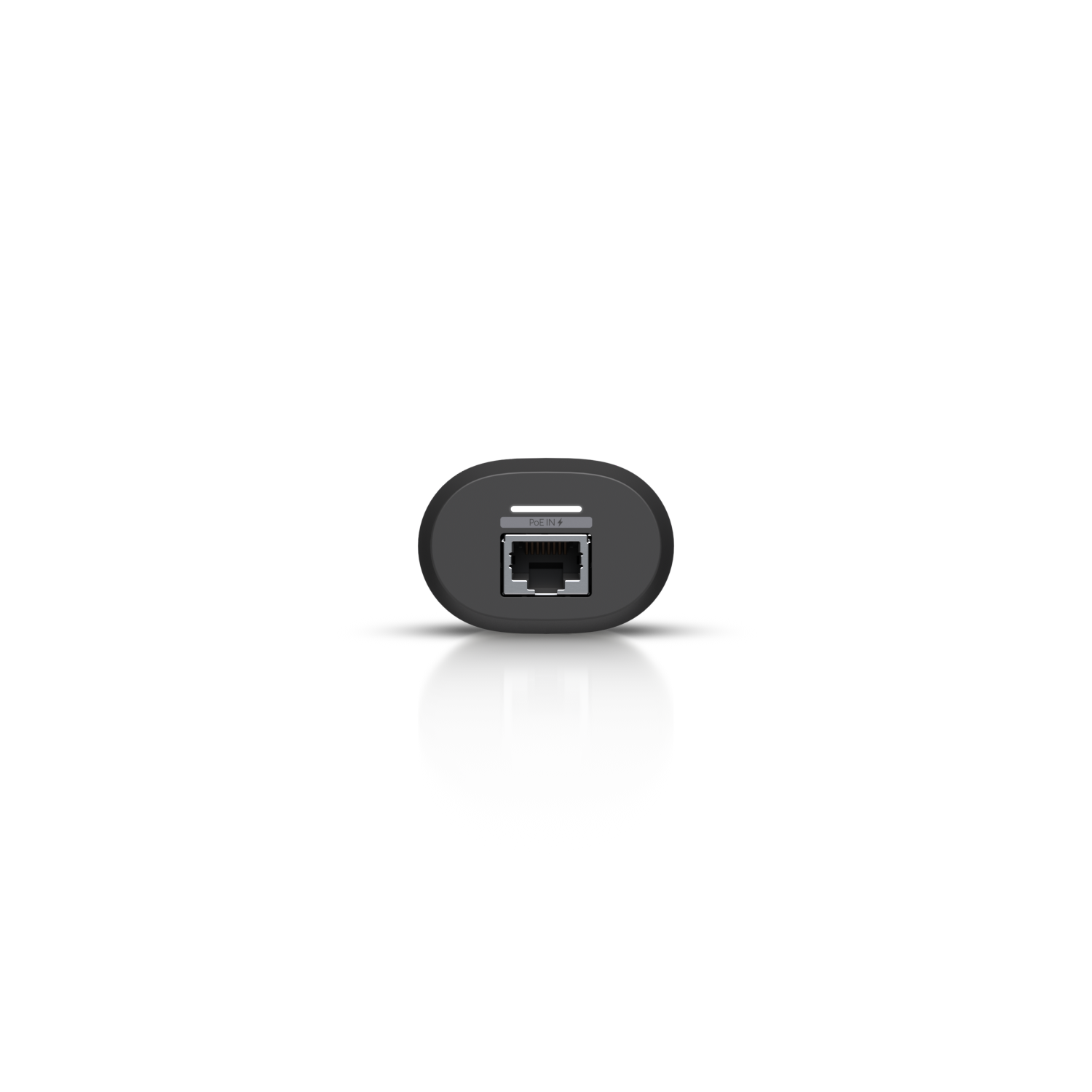

• Networking Interface: (1) GbE RJ45 port
• Max. Power Consumption: 9.5W
• ESD/EMP Protection: Air: ±8kV, Contact: ±4kV
• Buttons: (1) Factory reset
• Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
• Ambient Operating Humidity: 20 to 80% noncondensing
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• NDAA Compliant: Yes
• Certifications: FCC, IC, CE

Software:

• Application Requirements:
  • Web Application: UniFi Protect
  • Mobile App: UniFi Protect for iOS and Android

This device is designed for seamless integration with UniFi Protect, providing a high-quality viewing experience for surveillance feeds.
