USW Pro XG 10 PoE

38.998,00 ден 46.017,64 ден with DDV one time, and
11.699,00 ден / year

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

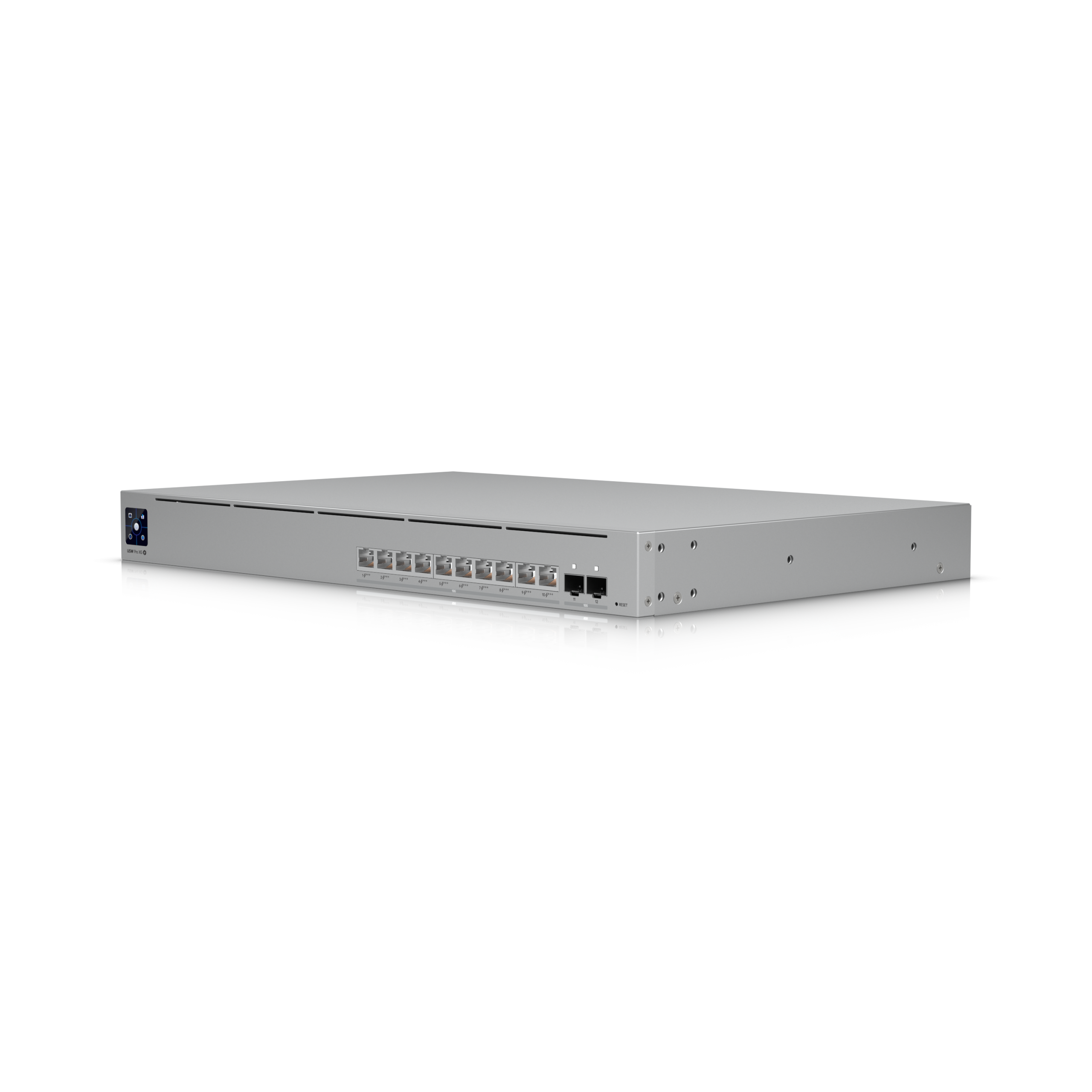

The Ubiquiti UniFi USW-Pro-XG-10-PoE is a professional-grade, 1U rack-mounted switch designed to deliver high-performance networking solutions for enterprise environments. This switch is engineered to support data-intensive applications and high-bandwidth devices, making it ideal for modern networks requiring robust connectivity and power delivery.

The Switch Pro XG 10 PoE (USW-Pro-XG-10-PoE) is a professional-grade, Layer 3, 10-port switch with advanced features. Below are its technical specifications:

Overview:

Dimensions: 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout:
- (10) 10 GbE RJ45 PoE+++ ports (10G/5G/2.5G/1G/100M)
- (2) 10G SFP+ ports (10G/1G)
Max. PoE Output: Up to PoE+++
Total PoE Availability: 400W
Redundancy: DC Power Backup Ready
Form Factor: Rack mount (1U)
Etherlighting™: Yes (illuminates ports for location, speed/link, and VLAN/network)

Performance:

Switching Capacity: 240 Gbps
Total Non-Blocking Throughput: 120 Gbps
Forwarding Rate: 179 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
Packet Buffer Size: 2 MB
L3 Table Size:
- ARP Entries: 12,000
- IPv4 Routes: 12,000

Layer 3 Features:

DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing

Layer 2 Features:

LACP, STP/RSTP, QoS (DSCP), IGMP Snooping, Port Isolation, Jumbo Frames, and more.

Hardware:

PoE Ports: 10 PoE+++ ports
Max. PoE Wattage per Port:
- PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- PoE+++: 90W
Max. Power Consumption:
- 65W (Excluding PoE Output)
- 520W (Including PoE Output)
Power Method: Universal input (100–240V AC, 50/60 Hz) and USP RPS DC input
Power Supply: Internal AC/DC, 550W
Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
Certifications: CE, FCC, IC
NDAA Compliant: Yes
