Panic Bar

22.258,00 ден 26.264,44 ден with DDV one time, and
6.677,00 ден / year

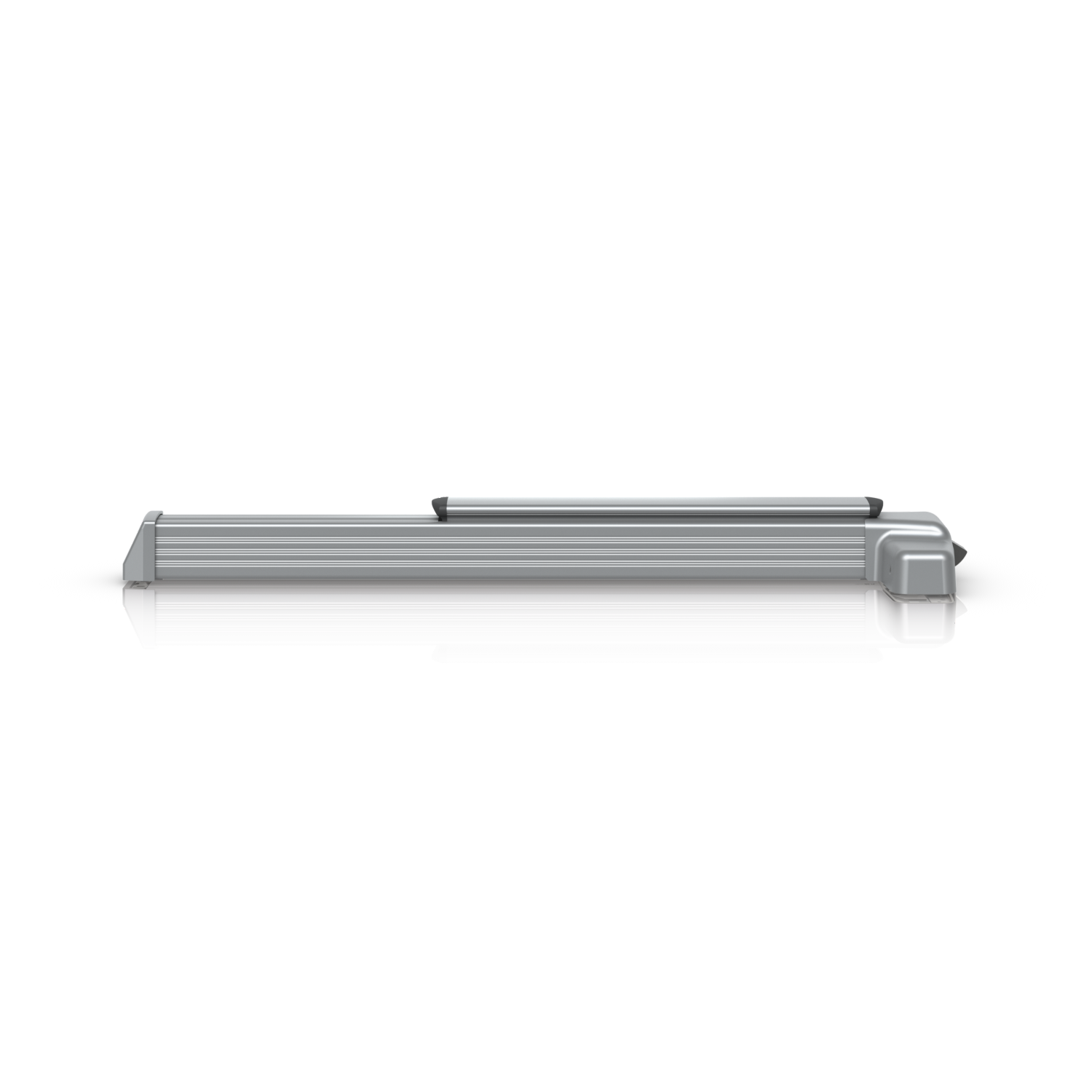

A single-latched bar installed on emergency exit doors, allowing quick and easy egress by pushing the bar to open the door during emergencies.

The Ubiquiti UniFi Access Panic Bar (UACC-PanicBar) door panic hardware allows safe and quick evacuation of a building in case of an emergency. The bar is equipped with a switching relay with contact rating 30 V DC / 1 A. When the bar is pressed, the relay closes; when it is released, the relay opens.

The Ubiquiti UniFi Access Panic Bar is a single-latched bar installed on emergency exit doors, allowing quick and easy egress by pushing the bar to open the door during emergencies. Below are its technical specifications:

Mechanical:

Dimensions: 838 x 294 x 94 mm (33 x 11.6 x 3.7")
Weight: 5.8 kg (12.8 lb)
Enclosure Material: Aluminum, stainless steel
Supported Door Width: 3′ standard for door width of 2′4″ to 3′ (711 to 914 mm)
Supported Door Thickness: 1-3/4” (44 mm) and 2” (51 mm) thick of metal or wood door
Strike: For 3/4” (19 mm) stop
Reversible: Non-handed, reversible for all functions and trims
Stiley: 4-1/4” (108 mm) minimum
Connection: 2 lines for dry relay
Wiring Connection:
- Dry output
- Contact rating: 30V DC, 1A
- Push = Short/Release = Open
