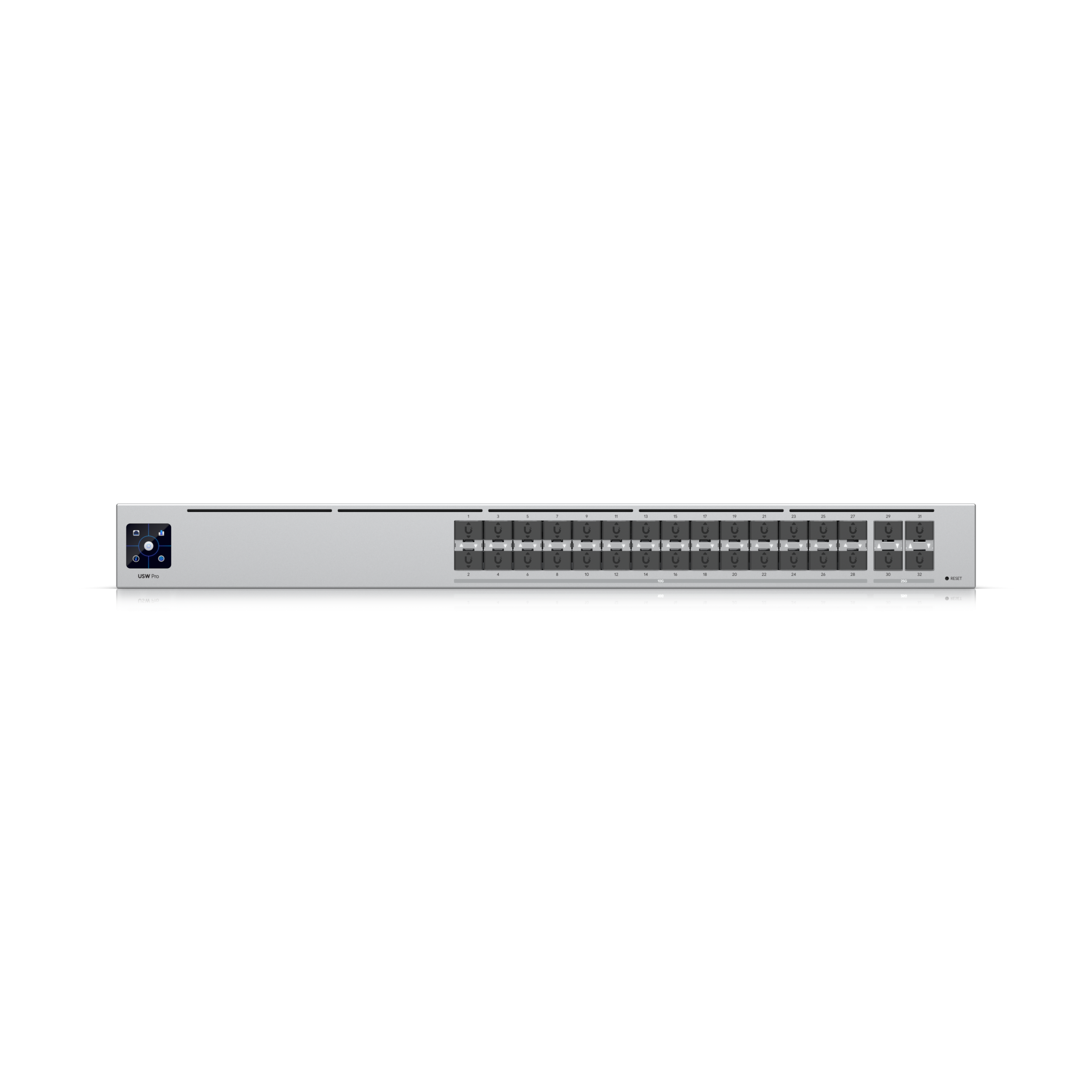

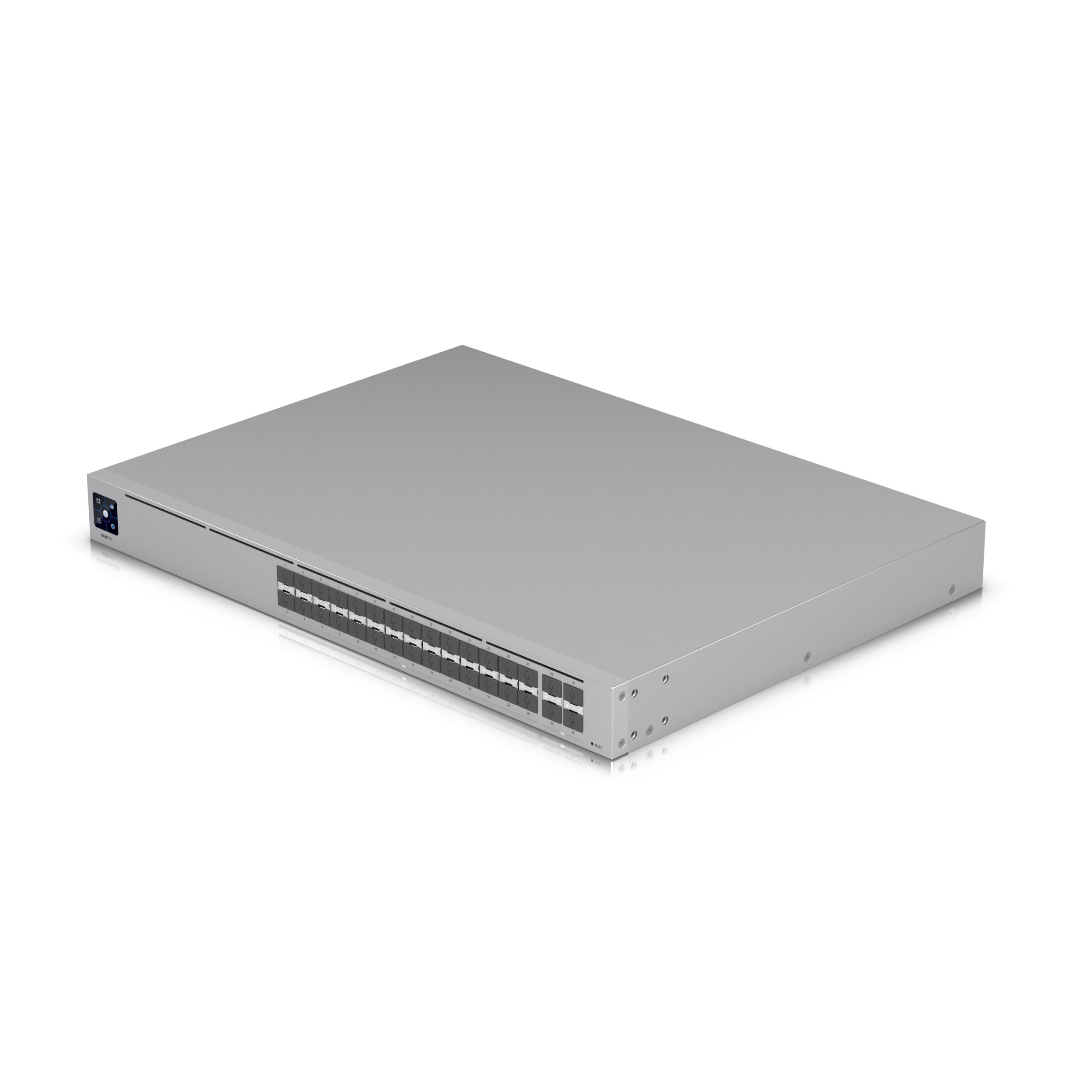

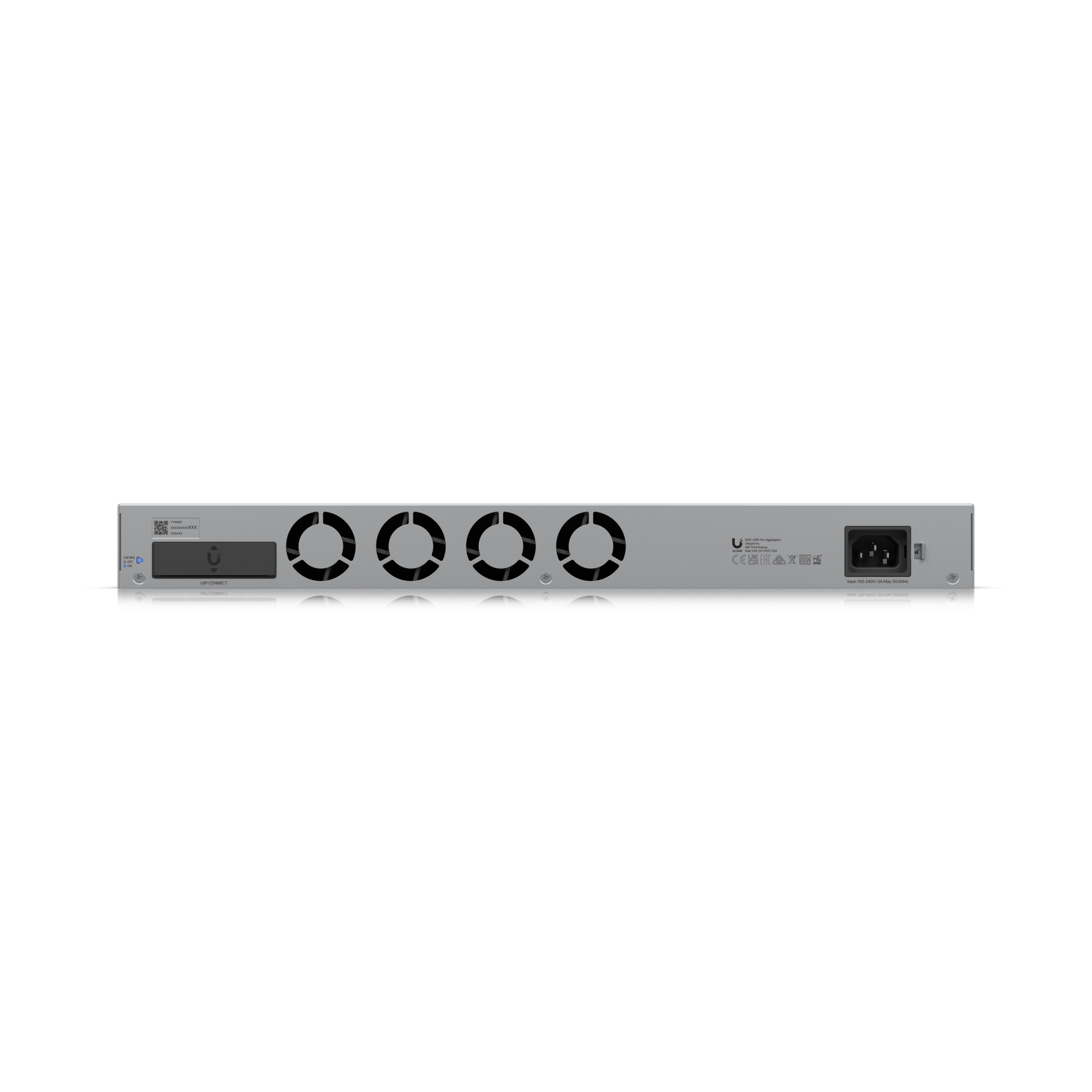

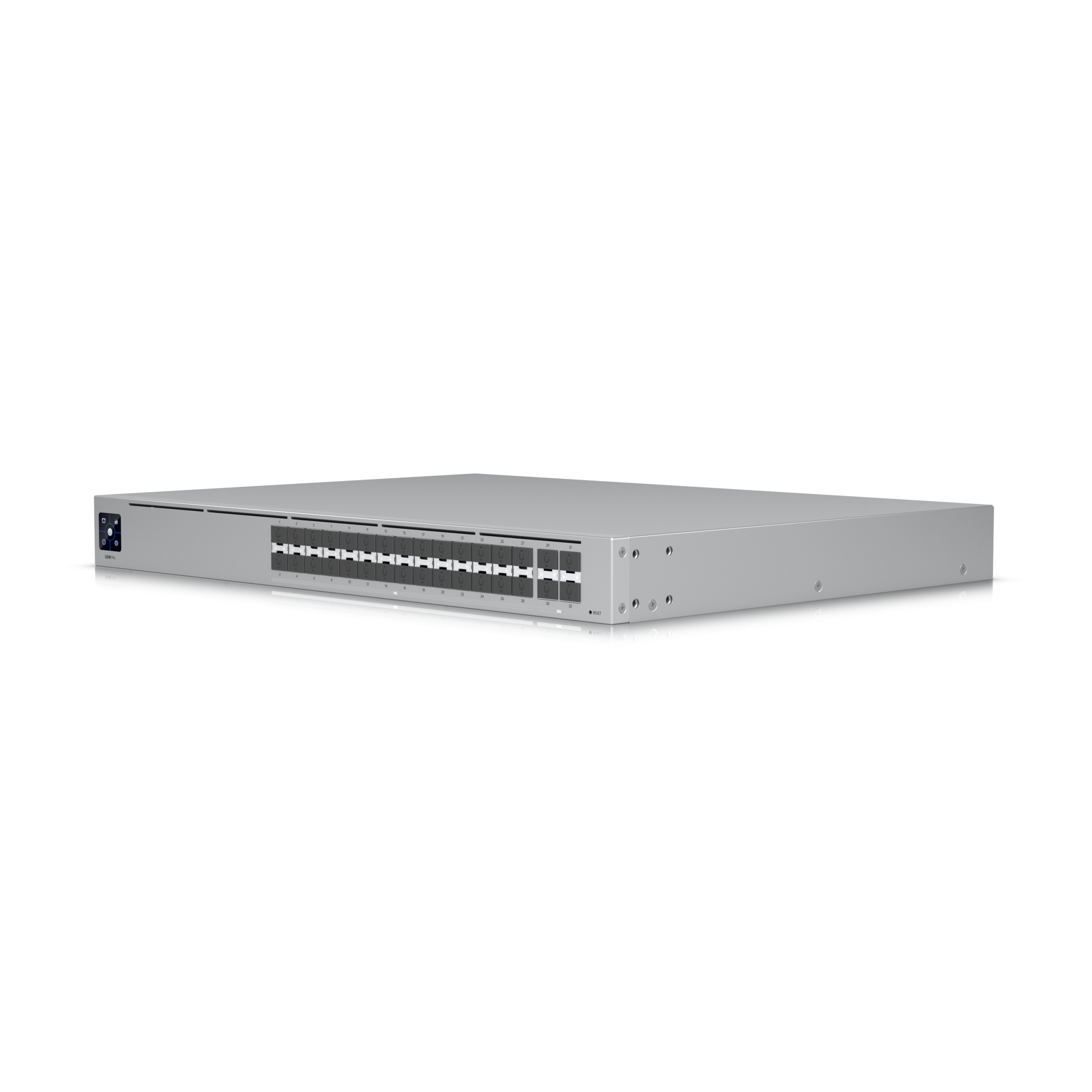

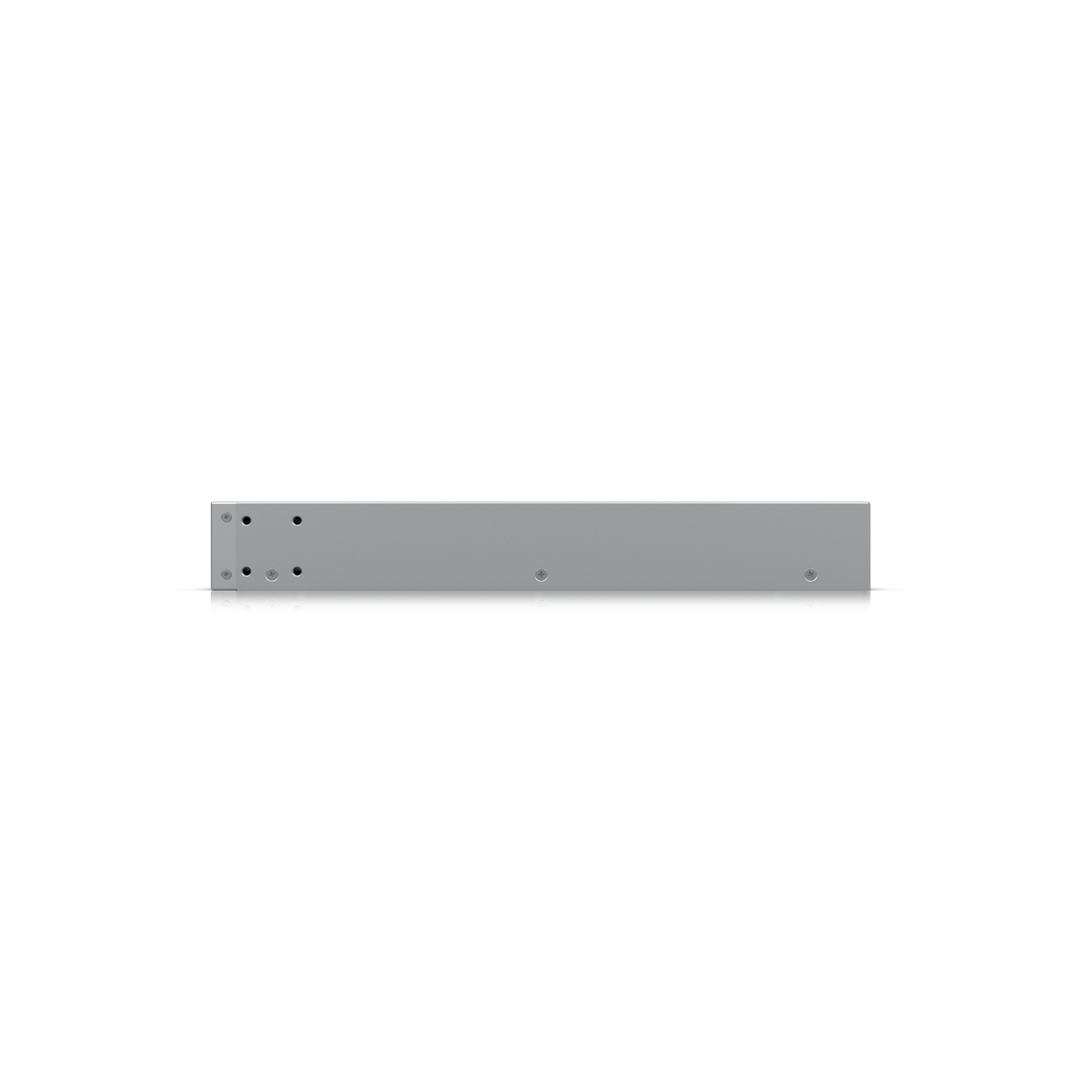

USW PRO AGGREGATION

The Switch Hi-Capacity Aggregation (USW-Pro-Aggregation) is a 32-port, Layer 3 switch designed for high-capacity 10G SFP+ and 25G SFP28 connections. Below are its technical specifications:

Overview:

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
• Port Layout:
  • (28) 10G SFP+ ports (10G/1G)
  • (4) 25G SFP28 ports (25G/10G/1G)
• Redundancy: DC Power Backup
• Layer 3: Yes
• Form Factor: Rack mount (1U)

Performance:

• Switching Capacity: 760 Gbps
• Total Non-Blocking Throughput: 380 Gbps
• Forwarding Rate: 565 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• L3 Table Size:
  • ARP Entries: 16,000
  • IPv4 Routes: 16,000
• Packet Buffer Size: 4 MB
• Access Lists:
  • IPv4: 128
  • MAC: 128

Layer 3 Features:

• DHCP Server (Local Networks)
• DHCP Relay
• Inter-VLAN Routing (Local Networks)
• Static Routing (Local Networks)

Layer 2 Features:

• LACP Port Aggregation
• STP & RSTP
• QoS (DSCP)
• IGMP Snooping
• Advanced IGMP Configuration
• Port Isolation, Mirroring, and Jumbo Frames
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Loop Protection and more

Hardware:

• Max. Power Consumption: 100W
• Power Method:
  • Universal input, 100–240V AC, 50/60 Hz
  • USP RPS DC input
• Power Supply: Internal AC/DC, 100W
• Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
• Certifications: CE, FCC, IC, Anatel
• NDAA Compliant: Yes

Software:

• Application Requirements: UniFi Network version 6.1.25 and later

This switch is ideal for high-performance aggregation in enterprise networks.
