E7

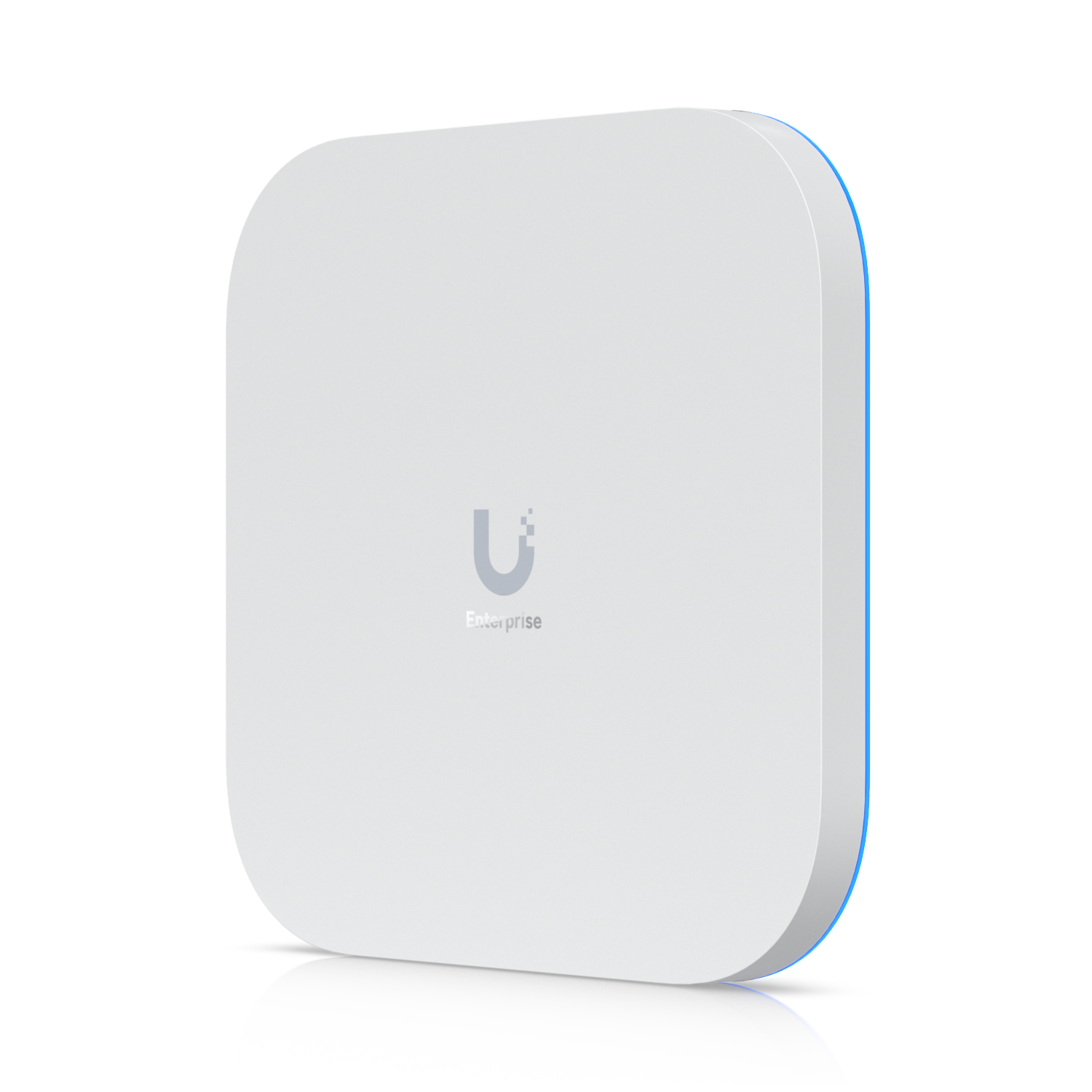

The Access Point E7 Campus is an enterprise-grade indoor/outdoor access point with advanced WiFi 7 performance. Below are its technical specifications:

Overview:

• Dimensions:
  • Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")
  • Articulating mount: Ø104 x 149.4 mm (Ø4.1 x 5.9")
• WiFi Standard: WiFi 7
• Spatial Streams: 10
• Coverage Area: 465 m² (5,000 ft²)
• Max. Client Count: 1,000+
• Uplink:
  • (1) 10 GbE RJ45 port
  • (1) 1 GbE RJ45 port (for power & data redundancy)
• Mounting: Wall, Pole (Mounts Included), VESA (Optional)
• Weatherproofing: IPX6 (IP67 with Waterproof Door Kit)
• Power Method: PoE++

Performance:

• MIMO:
  • 6 GHz: 4x4 (DL/UL MU-MIMO)
  • 5 GHz: 4x4 (DL/UL MU-MIMO)
  • 2.4 GHz: 2x2 (DL/UL MU-MIMO)
• Max. Data Rate:
  • 6 GHz: 11.5 Gbps (BW320)
  • 5 GHz: 8.6 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain:
  • 6 GHz: 12 dBi (90° x 50°)
  • 5 GHz: 12 dBi (100° x 55°)
  • 2.4 GHz: 9 dBi (90° x 80°)
• Max. TX Power:
  • 6 GHz: 30 dBm (36 dBm EIRP)
  • 5 GHz: 30 dBm
  • 2.4 GHz: 23 dBm

Features:

• Wireless Meshing: Yes
• Band Steering: Yes
• Advanced Radio Management: Real-time spectral analysis, Zero-Wait DFS
• Captive Portal: Custom branding, voucher/payment authentication, guest isolation
• Private Pre-Shared Key (PPSK): Yes
• WiFi Schedules: Yes

Hardware:

• Max. Power Consumption: 44W
• Supported Voltage Range: 42.5–57V DC
• Weight:
  • Device: 2.2 kg (4.9 lb)
  • With mount: 3.1 kg (6.8 lb)
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Certifications: FCC, IC, NDAA Compliant

This access point is ideal for high-density environments requiring long-range, high-performance WiFi 7 connectivity.
